Alpha Miter Cutting Kit for the PSC-150
Alpha Miter Cutting Kit for the PSC-150
Regular price
$2,795.76 USD
Regular price
Sale price
$2,795.76 USD
Unit price
per
Shipping calculated at checkout.
SKU:5480-5100
Couldn't load pickup availability

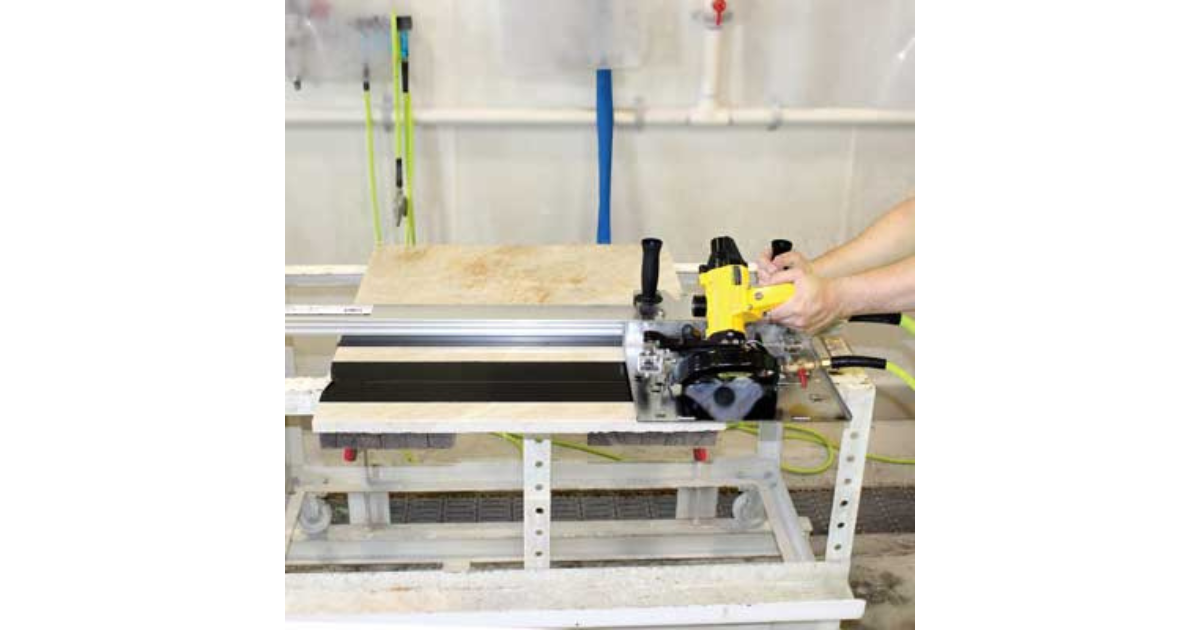

Alpha® has re-designed and improved the already popular Alpha® Guide Rail and Carriage System in several sizes which now accommodates our 6” PSC-150 Stone Cutter. The new Carriage Assembly (ASC-6CSM) is designed for straight cuts as well as miter cuts. This carriage has three templates included that assist the install of the stone cutter for left side or right side miter cutting and straight cutting. If you have two sets (Stone Cutter & Carriage Assembly) setup in each direction on the same guide rail, you can cut a V and the edges would be ready for lamination. If you have a single setup (Stone Cutter & Carriage Assembly), the guide rail need only be setup once on the material. The Stone Cutter can then be positioned to create a miter cut, then repositioned for a second miter cut to create the V.
- One System for Straight, Curve and Miter Cuts
- Precise Miter Cuts for Laminated Waterfall Edge and Book Matching
- Miter Cut 3/4” (2cm) Material with Ease
- One-Time Easy Setup on the Guide Rail Allows for Two Different Miter Cut Positions for Lamination Prep
- Save Time and Increase Shop Productivity

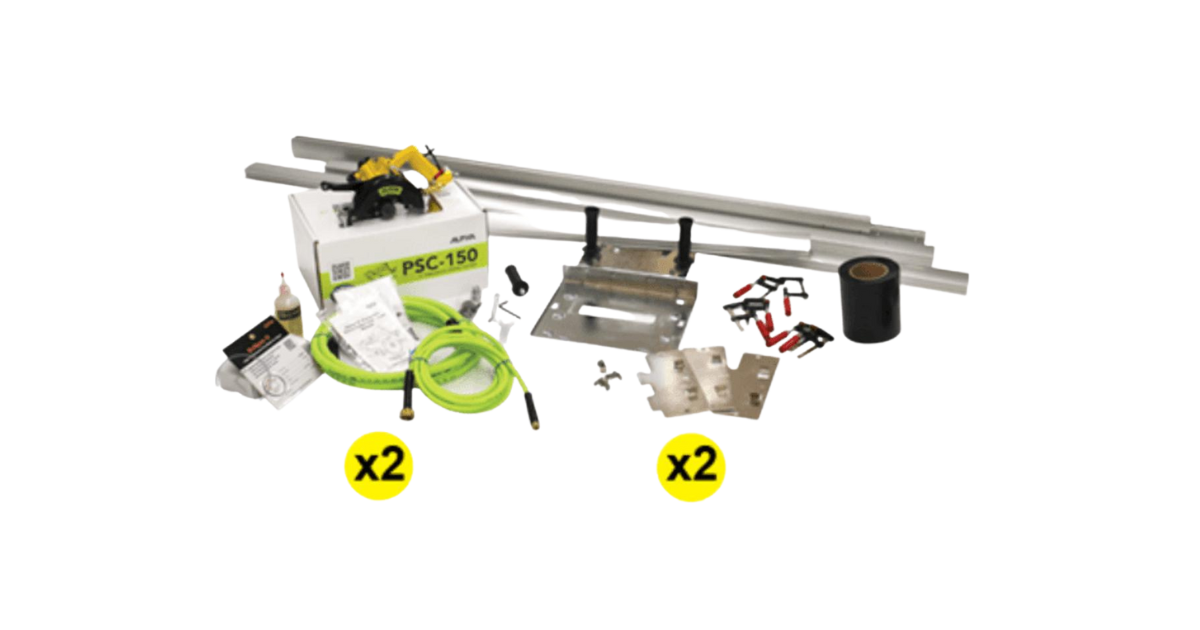

- Kit Contains: 2-PSC-150 Stone Cutters, 2-6” Carriage Assemblies, Guide Rail Set (4', 7', 12' / 1.2m, 2.1m, 3.6m) & Surface Protection Tape
| Product Details |
|---|
| Specification | Data |
|---|---|

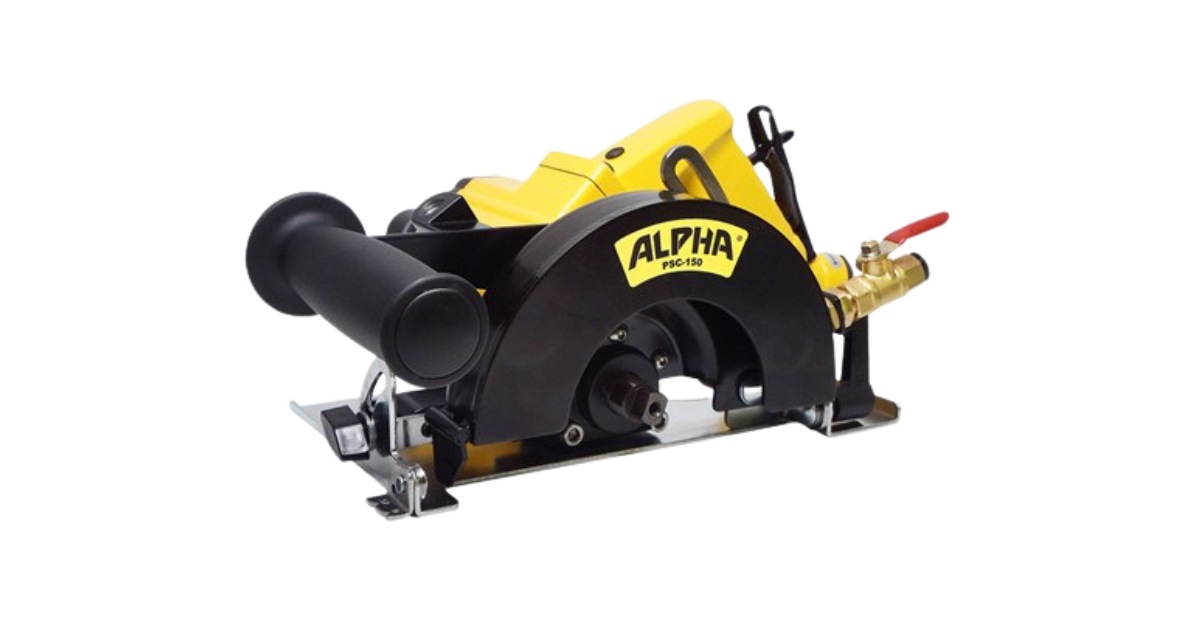

| Model | 5480-5100 (PSC-150) |
| Air Pressure | 90 PSI (6.2 Bar) |
| Air Consumption Min | 32 CFM / 1HP* |
| Air Consumption Max | 48 CFM / 2HP |
| No Load Speed | 8,500 RPM |
| Air Inlet | 3/8” NPSM |
| Water Inlet | 1/4” BSPP |
| Arbor | 7/8” (22mm) |
| Max. HP | 2.0 HP |
| Cutting Disc Diameter | 6" (150mm) |
| Note: |
*To control the amount of CFM required, use the reduced flow air inlet fitting 3001-0084 |
| Equipment Included |
|---|
| Item | Quantity |
|---|---|
| PSC-150 Wet Stone Cutter | 2 |
| PSC-150 Standard Accessories (inc. Eclipse II Blade) | 2 |
| 6” Carriage Assembly (ASC-6CSM) | 2 |
| Guide Rail 4' (1.2m) (ASC-GR04) | 1 |
| Guide Rail 7' (2.1m) (ASC-GR07) | 1 |
| Guide Rail 12' (3.6m) (ASC-GR12) | 1 |
| Surface Protection Tape (BAB0650) | 1 |
| Manual: | PSC-150 v2 |
| Manual: | ASC-6CSM Carriage |
| Manuel: | PSC-150 v1219 |
| Safety Data Sheet: | Rust Inhibitor Oil for Pneumatic Tools |
