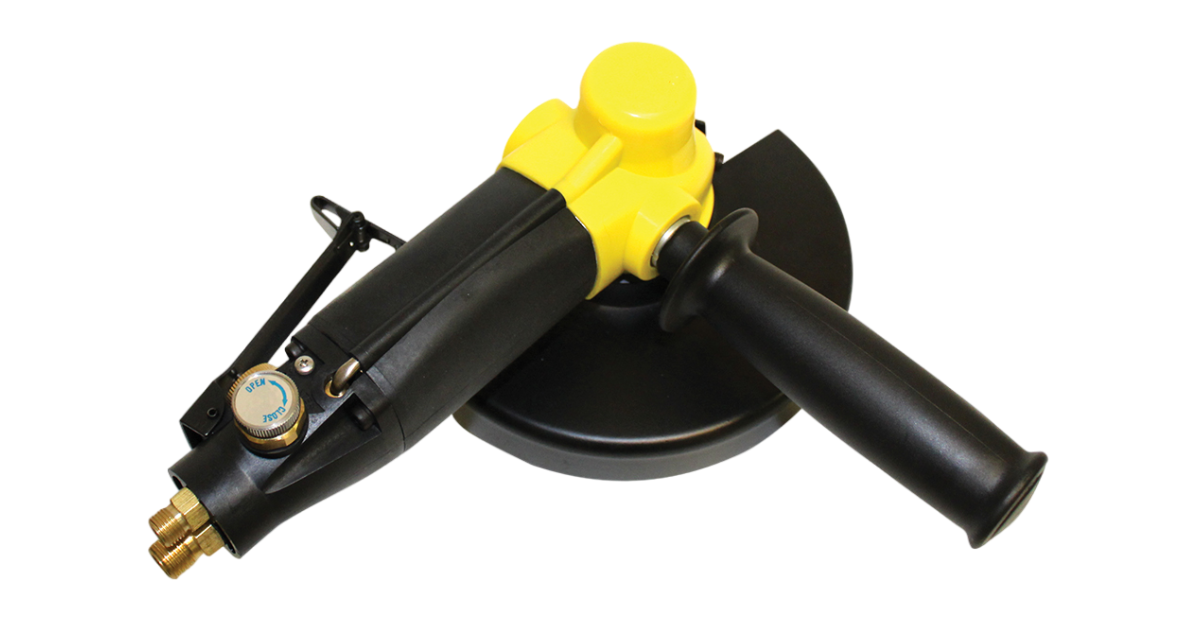

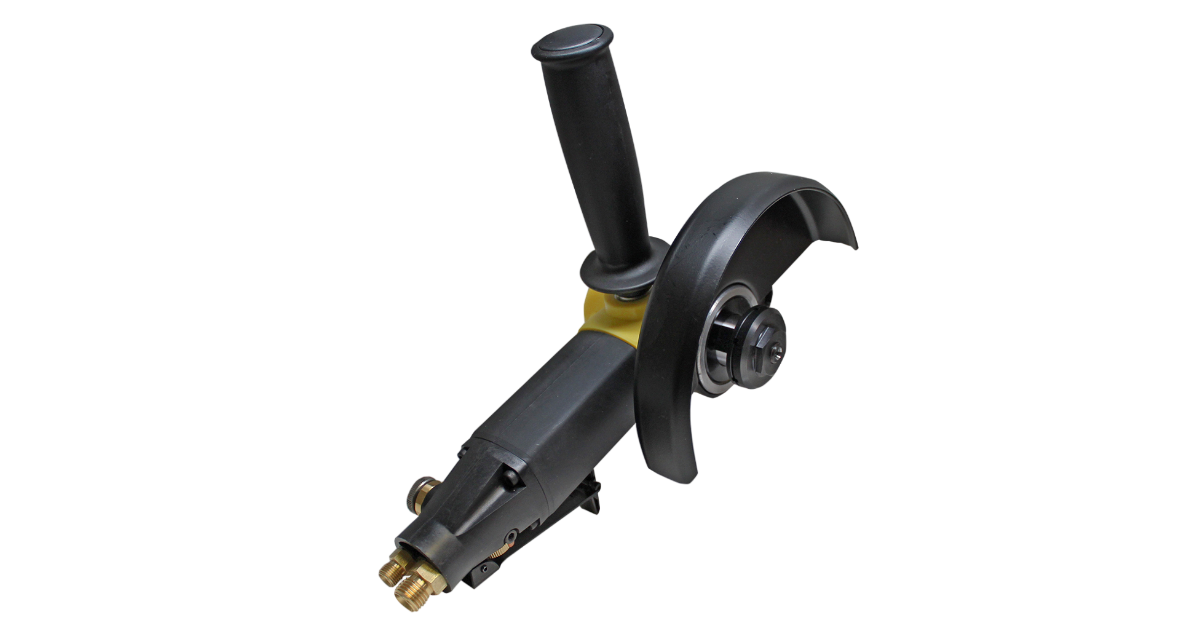

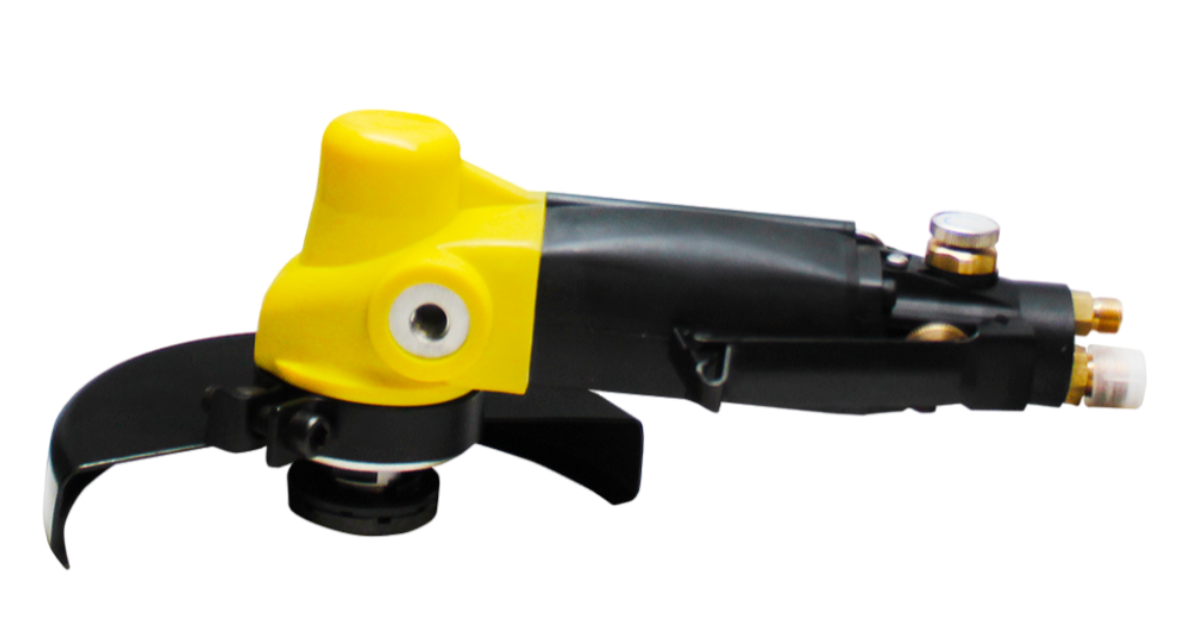

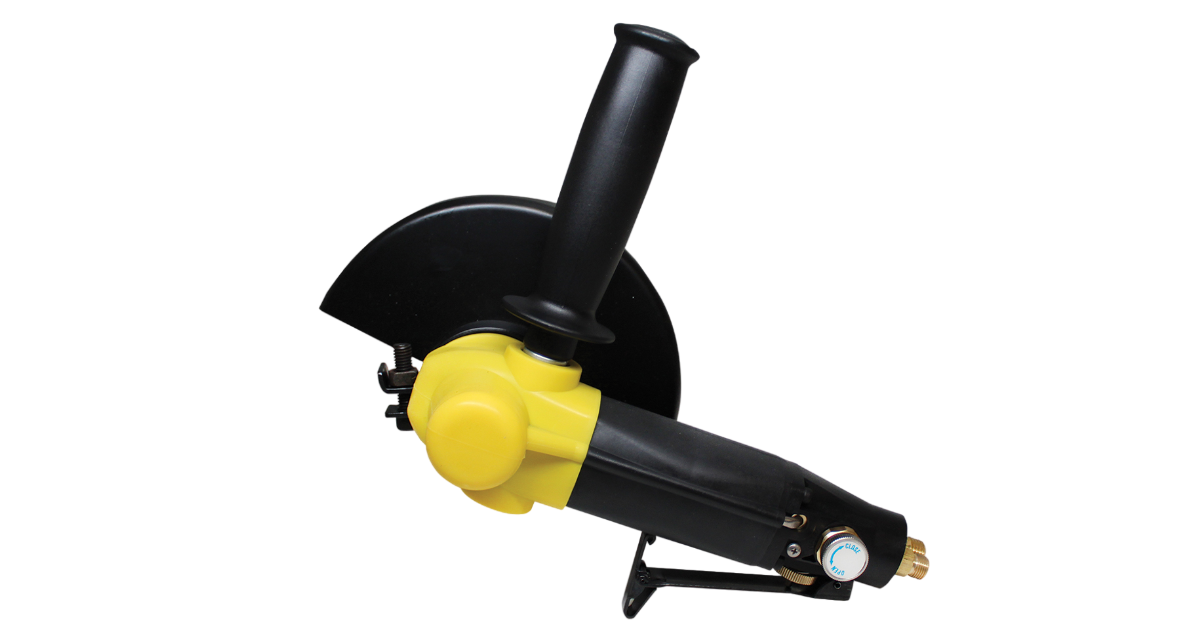

Alpha® PSC-600 Pneumatic Stone Cutter
Alpha® PSC-600 Pneumatic Stone Cutter
Regular price
$365.00 USD
Regular price
Sale price
$365.00 USD
Unit price
/
per
SKU:PSC-600
There is no doubt that the electric angle grinder is the most popular portable power tool in stone fabrication. It is normal to see such grinders being used in almost all stone fabrication shops, whether creating dust or blowing dust into a vacuum system. Introducing the Alpha® PSC-600 which is a newly developed high-performance wet pneumatic stone cutter that will set a new “normal” in stone fabrication shops. It is common knowledge that electric power tools don’t last very long due to the stone dust or the water splash which damages them easily. This is why most of the polishers nowadays are pneumatic-driven polishers. The PSC-600 comes with a very unique center water-feed system to deliver ample water on the both sides of the diamond blade, which will keep the dust down on the floor and also enhance the performance and life of the diamond blade. In addition, we made the end case with a composite material to prevent freezing which is a common issue for hands, by the rear exhaust system, in consideration of operator comfort. The Alpha® PSC-600 is smaller and lighter than electric angle grinders and offers better maneuverability along with all the safety features. This turn-key operation stone cutter comes with 15 ft. all–weather hoses and a convenient water quick coupler with shut off valve.
- High-Performance, Pneumatic Cutting Tool
- Central Water-Feed System Delivers Ample Water Regardless of Position
- No-Load 8,500 RPMs
- 15ft. All-Weather Hoses with Flexibility Down To -40°F Or +140°F
- Newly Developed Motor Produces More Power
- Lightweight and Ergonomically Designed for Better Maneuverability
- Spring Return Throttle to Avoid Accidental Start
- Composite End Case Prevents Freezing Hands
- Silicon Gear Head Cover Provides Cushion and Keeps Hands Warm
- Enhanced Spindle Shaft for Easy Tool Removal (Wrench Included)
- Works Great as a Grinder Also
- One Year Warranty* (*See manual for details)
Product Details |
---|
Specification | Data |
---|---|
Model | PSC-600 |
Air Pressure | 85 PSI (6 Bar) |
Air Consumption | 15 CFM (425L/min) |
Weight | 2.9 lbs (1.3 kgs) |
No Load Speed | 8,500 RPM |
Air Inlet | 1/4” BSPP |
Water Inlet | 1/8” BSPP |
Arbor | 7/8” (22mm) |
Max. Cutting Disc Diameter | 6" (150mm) |
Length | 7-1/2” (190.5mm) |
Equipment Included |
---|
Item | Quantity |
---|---|
Air Hose (15ft / 4.5m) | 1 |
Water Hose (15ft / 4.5m) | 1 |
Side Handle (reversible) | 1 |
Rust Inhibitor Oil (6.7oz / 200ml) | 1 |
Screw (w/ O-Ring Seal for Oil Port) | 1 |
Exhaust Hose with Clamp | 1 |
Spring Washer | 1 |
6" Safety Guard | 1 |
Double End Wrench (19mm / 22mm) | 1 |
Phillips Screwdriver | 1 |
Water Quick Coupler w/ Shut Off Valve | 1 |
O-Ring (O-Ring for Water Valve Repair) | 1 |
Single Open Wrench (22mm) | 1 |
Hex Wrench (6mm) | 1 |
Inner Flange for Cutting | 1 |
Outer Flange | 1 |
L-Bracket | 1 |
Inner Flange for Grinding | 1 |
Manual: | PSC-600 Manual v1 |
Reference: | PSC-600 Grinding Wheel Instructions |
