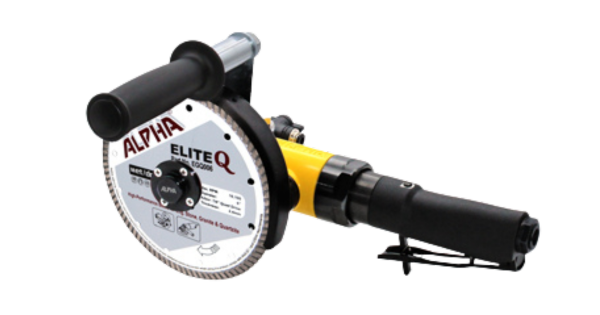

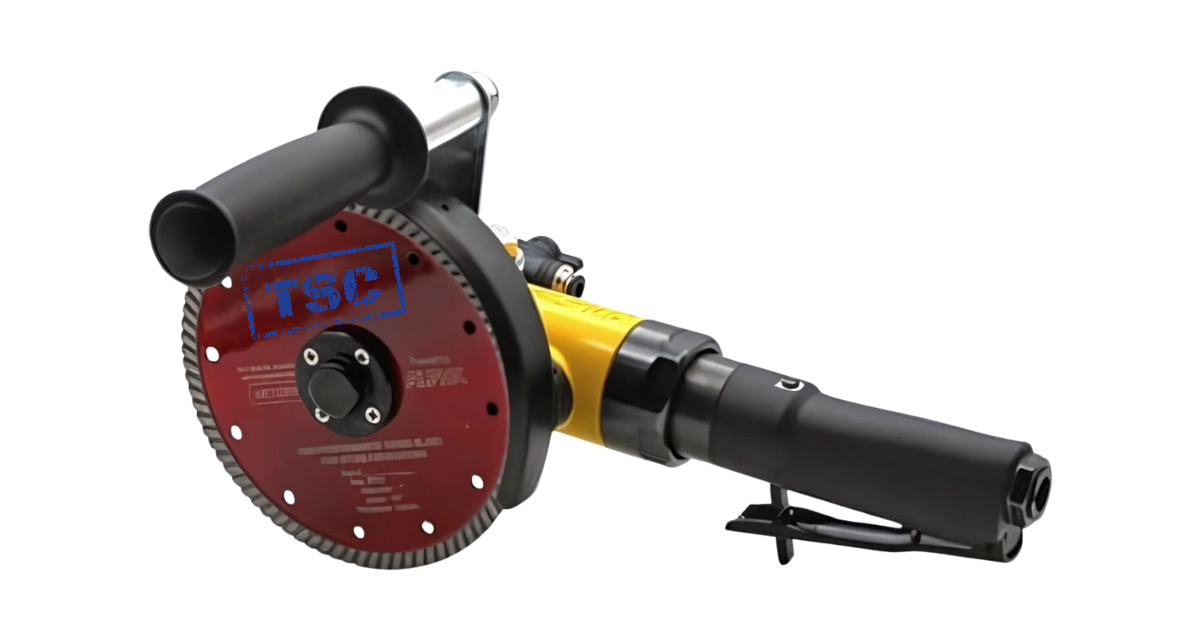

ALPHA PWC-658 Pneumatic Cutter/Grinder
ALPHA PWC-658 Pneumatic Cutter/Grinder
Regular price
$517.10 USD
Regular price
$569.00 USD
Sale price
$517.10 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:PWC-658
Couldn't load pickup availability
The new PWC-658 is the ultimate work horse for stone fabricators. It has a quad adapter center water-feed system provides direct water flow to front and back side of the blade and a reversible safety guard for left or right blade position. The L-bracket & side handle setup makes the pull-to-cut method easy. Great for flat grinding as well!>more
COMING SOON! THE PWC-658 IS SCHEDULED TO ARRIVE IN MID MARCH 2025
PRE-ORDER YOURS TODAY!
-
High-Speed, High-Performance Pneumatic Angle Cutter/Grinder
-
Reversible Safety Guard For Left Or Right Blade Position
-

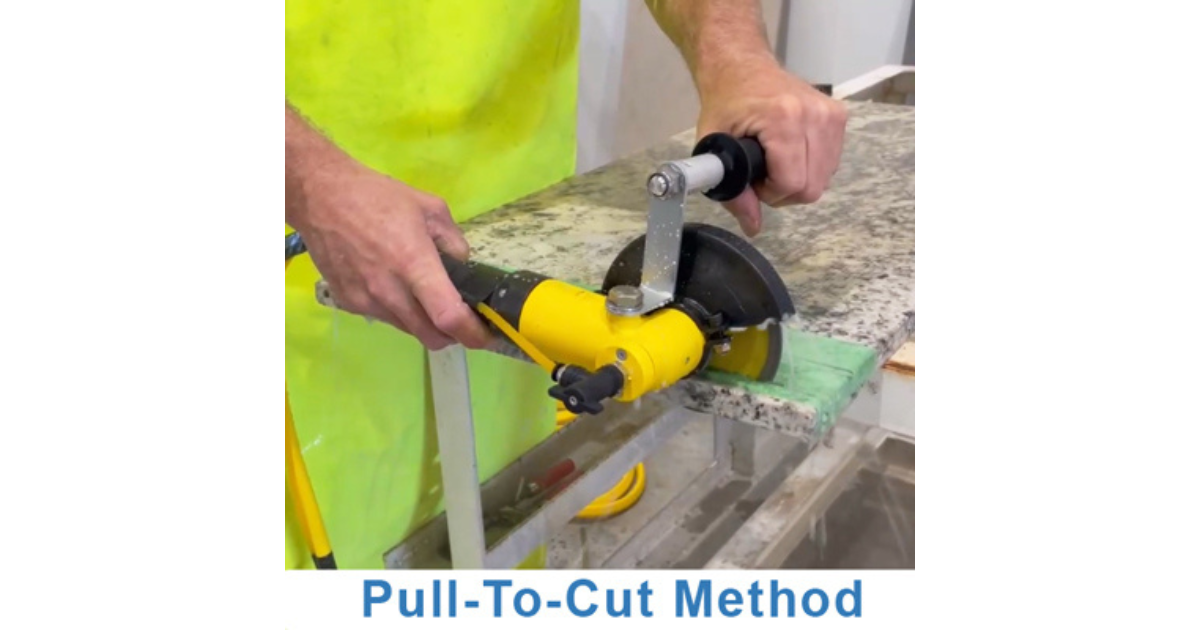

L-Bracket & Side Handle Setup For Pull-To-Cut Method
-

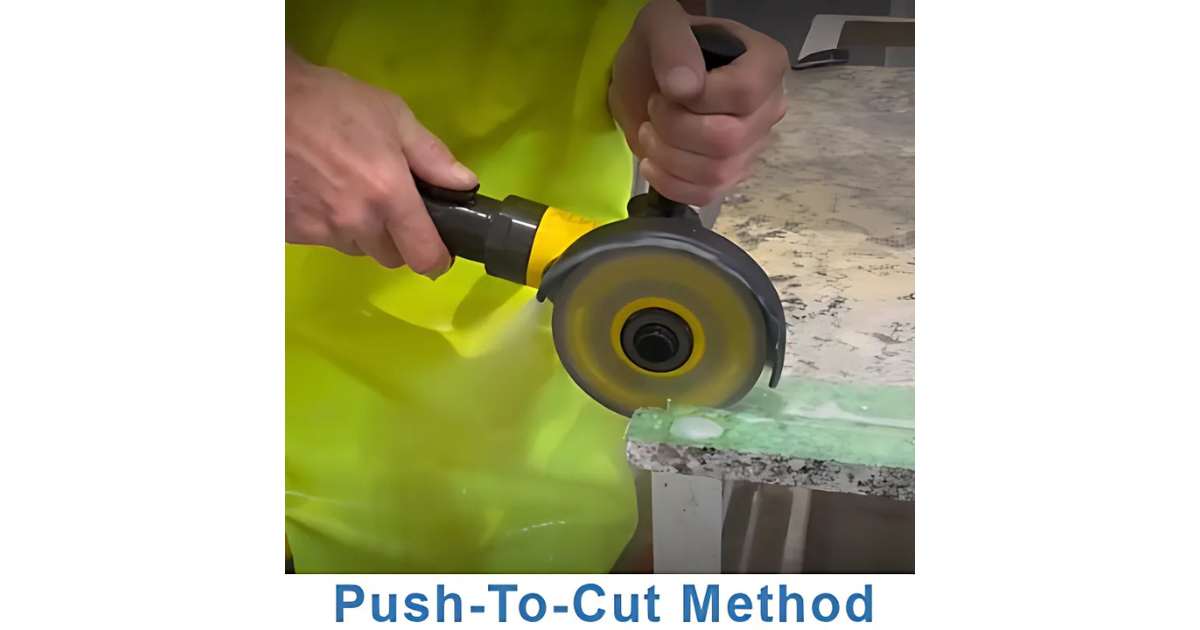

Side Handle Attachment For Push-To-Cut Method
-
Spring-Return Throttle Avoids Accidental Start
-

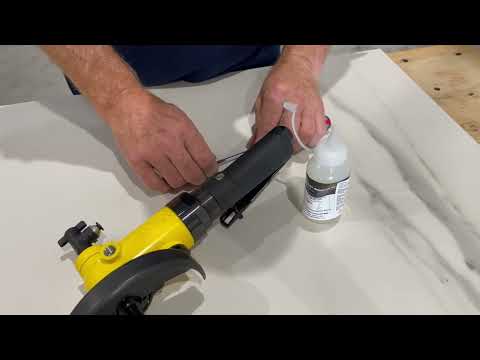

Easy Access Oil Port for Daily Maintenance
-
Quad Adapter Center Water-Feed System Provides Direct Water Flow to Front and Back Side Of The Blade
-

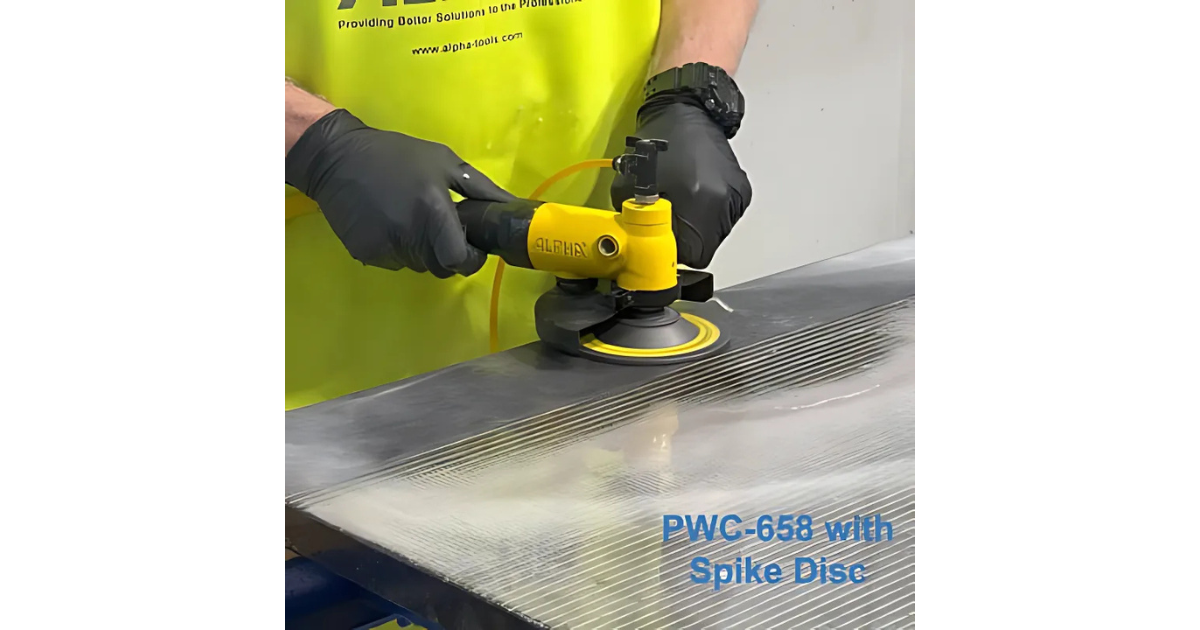

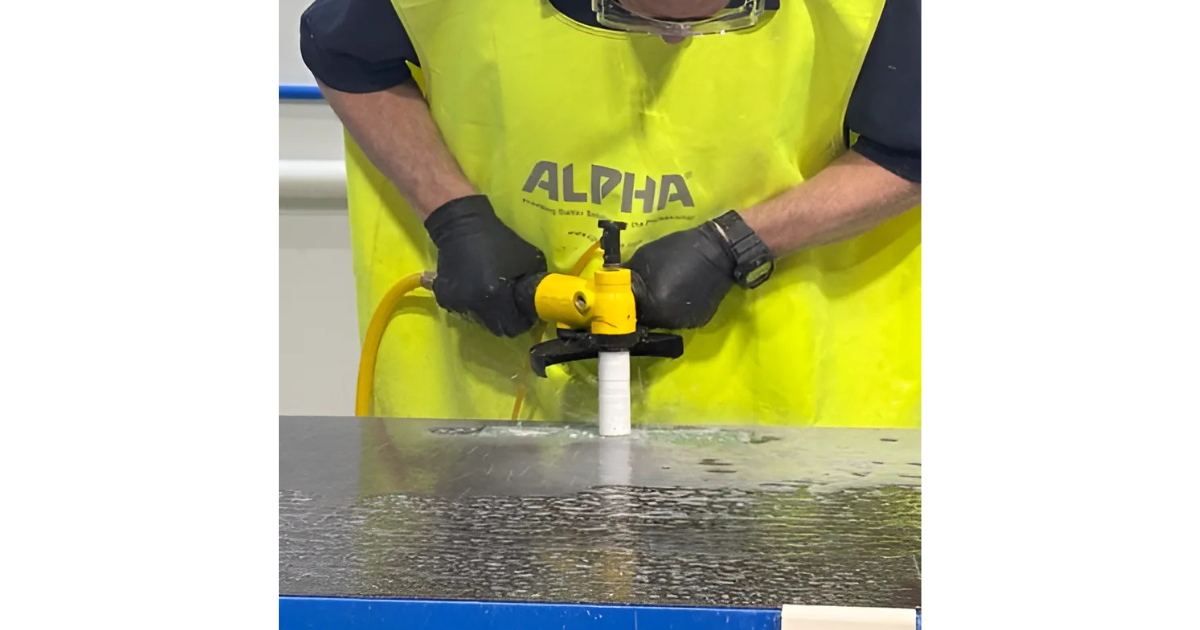

Center Water Feed-System Is Perfect For Flat Grinding
-
One Year Tool Warranty*
Product Details
Specification |
Data |
---|---|
Model |
PWC-658 |
Air Pressure |
90 PSI (6.2 Bar) |
Air Consumption Max |
33 CFM (934L/min) |
No Load Speed |
10,000 RPM |
Weight |
4.6lbs (1.3 kgs) |
Length |
11-3/4" (298mm) |
Air Inlet |
3/8” NPSM |
Water Inlet |
1/8” BSPT |
Spindle |
5/8"-11 |
Maximum Disc Capacity |
6" (150mm) |
Max. HP |
1.4 HP |

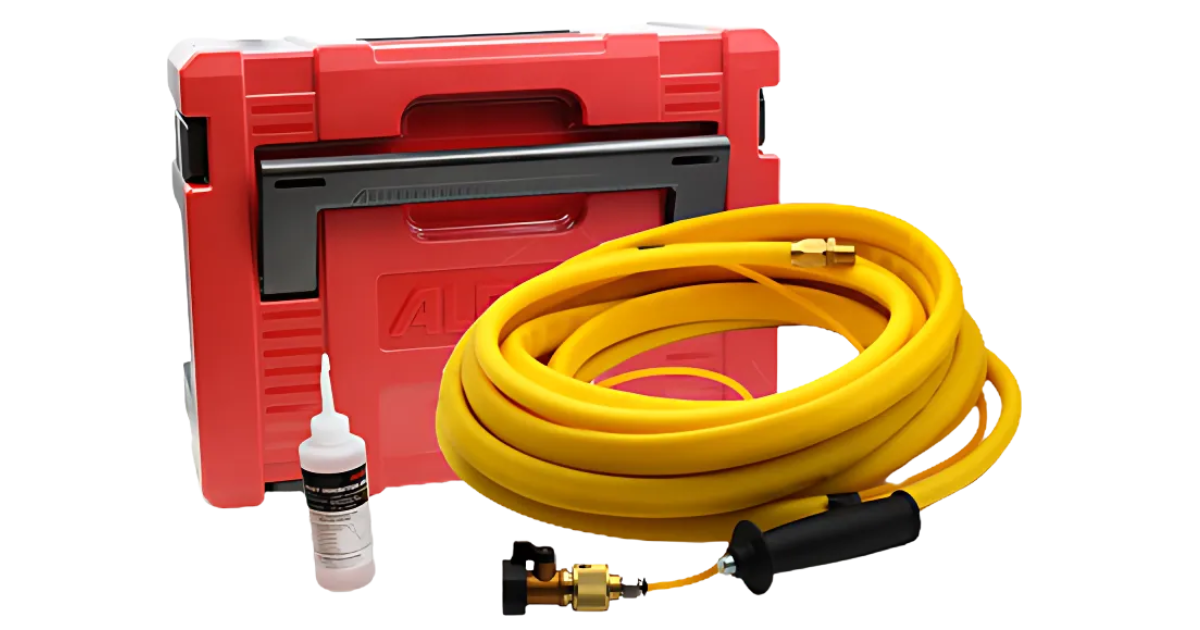

Equipment Included
Item | Quantity |
---|---|
Reusable, Stackable Toolbox |
1 |
Air/Water Twin Hose Assembly (30ft / 9.1m) |
1 |
Alpha® Elite Q Blade |
1 |
Rust Inhibitor Oil (6.7oz / 200ml) |
1 |
Quad W Adapter Assembly |
1 |
Safety Guard |
1 |
Side Handle |
1 |
Handle Bracket Assembly |
1 |
Quick Connect Ball Valve |
1 |
Hex Wrench (2mm) |
1 |
Hex Wrench (5mm) |
1 |
Spanner Wrench (19mm) |
2 |
Extension Rod and Nylon Lock Nut (M12) |
1 |
Manual: |
PWC-658/514 Manual v0125 |
Parts-Schematic: |
PWC-658/614 Parts/Schematic v0125 |
