Aardwolf

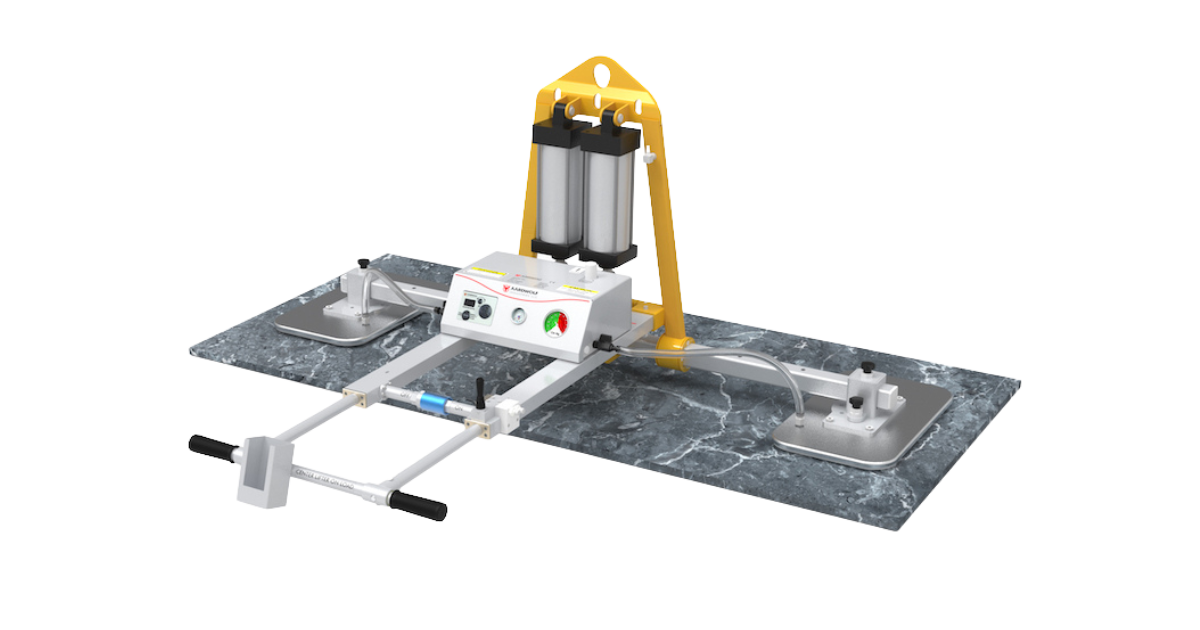

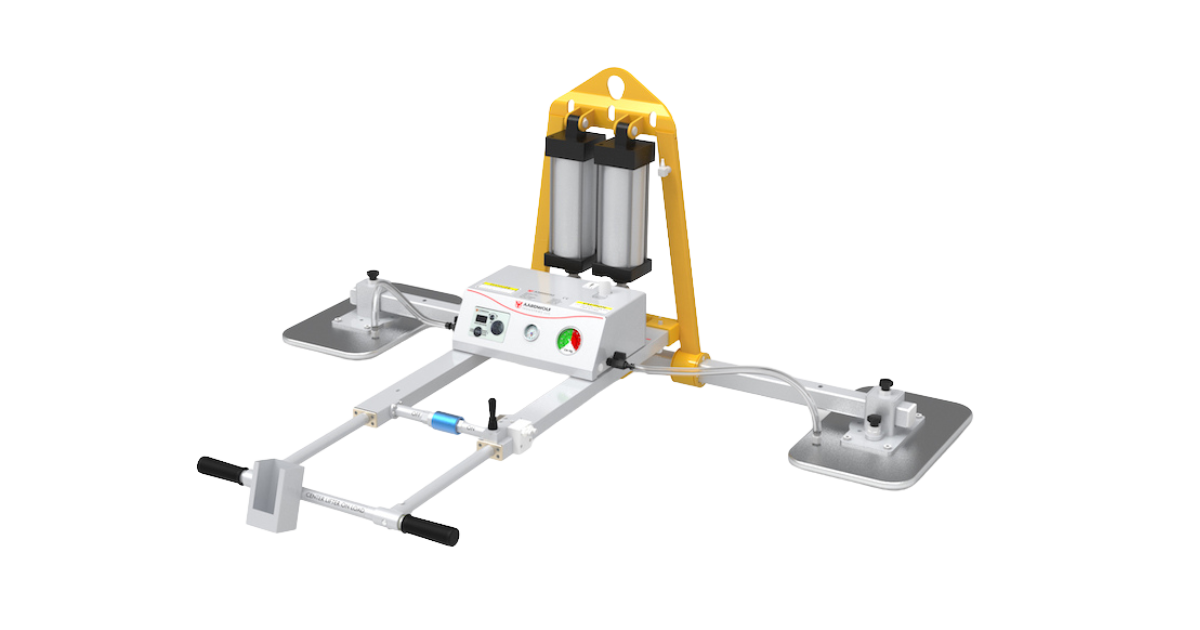

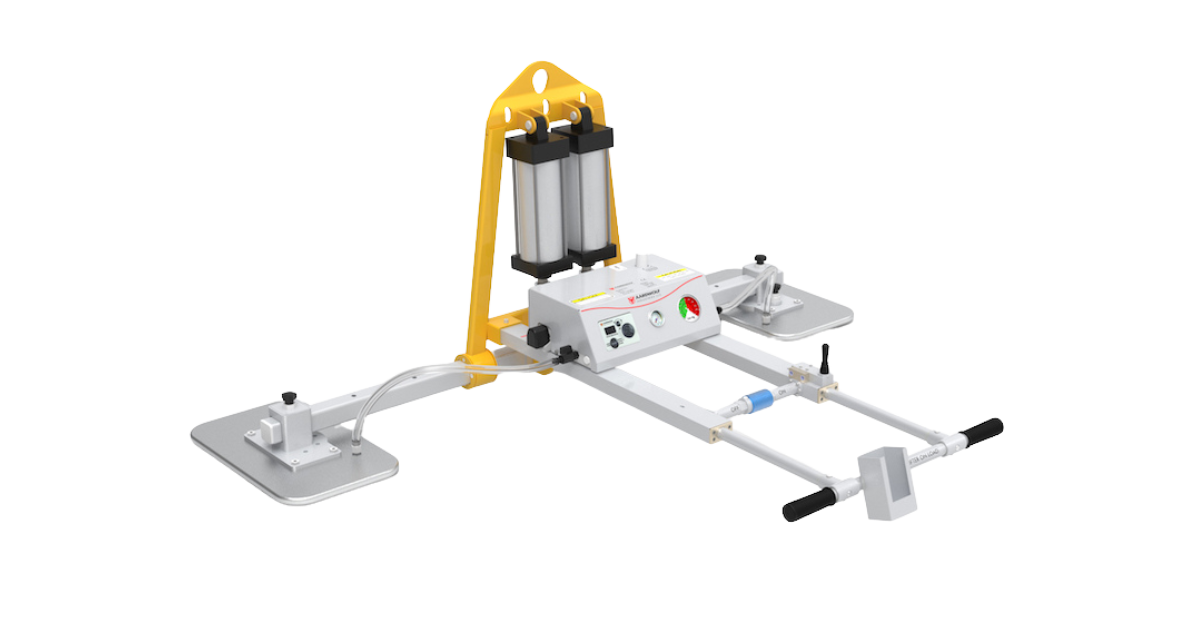

AVLP2PRO-500 Vacuum Lifter, Pads Rotate 90

AVLP2PRO-500 Vacuum Lifter, Pads Rotate 90

Regular price $4,109.99 USD
Regular price Sale price $4,109.99 USD
Sale Sold out
Shipping calculated at checkout.

SKU:AVLP2Pro

This advanced vacuum lifter is meticulously designed to accommodate the diverse needs of lifting smooth and rough marble and granite slab surfaces, embodying a superior and rugged construction. It not only facilitates the effortless lifting of heavy materials but also provides the capability to tilt them, allowing for precise positioning and handling. The core of its operation is powered by compressed air, ensuring reliable and efficient performance across various applications. This feature significantly enhances its versatility, making it an indispensable tool in environments where precision and durability are paramount, such as in workshops, construction sites, and manufacturing facilities dealing with stone materials. This PRO MODEL features an automatic lock and re-pump by the vacuum level set and a faster charging 12V Lithium-ION battery.

*Additional freight shipping fees apply

Features

  • Pneumatic Tilting Mechanism: Offers vertical-horizontal tilting from 0 to 90°, powered by a pneumatic piston for smooth and precise adjustments.
  • Vacuum Tank Safety Feature: Ensures safe material pickup with a vacuum tank that maintains suction in case of a sudden power interruption to the vacuum pump.
  • Rechargeable Alarm System: An audio and visual alarm system powered by a 12V Li-ion battery activates when the vacuum level is low and ceases when the vacuum level reaches full capacity.
  • Slide Valve Control: Features a slide valve with ON/OFF positions, simplifying the process of attaching and releasing materials with ease and reliability.

 Specifications:


Metric
(mm-kg)
Imperial
(inch-lb)
Number of pads 2 -
Pad size 520x320 20.5"x12.6"
Working load limit Vertical:250
Horizontal:500
551
1102
Net weight 71 157
Gross weight 109 240

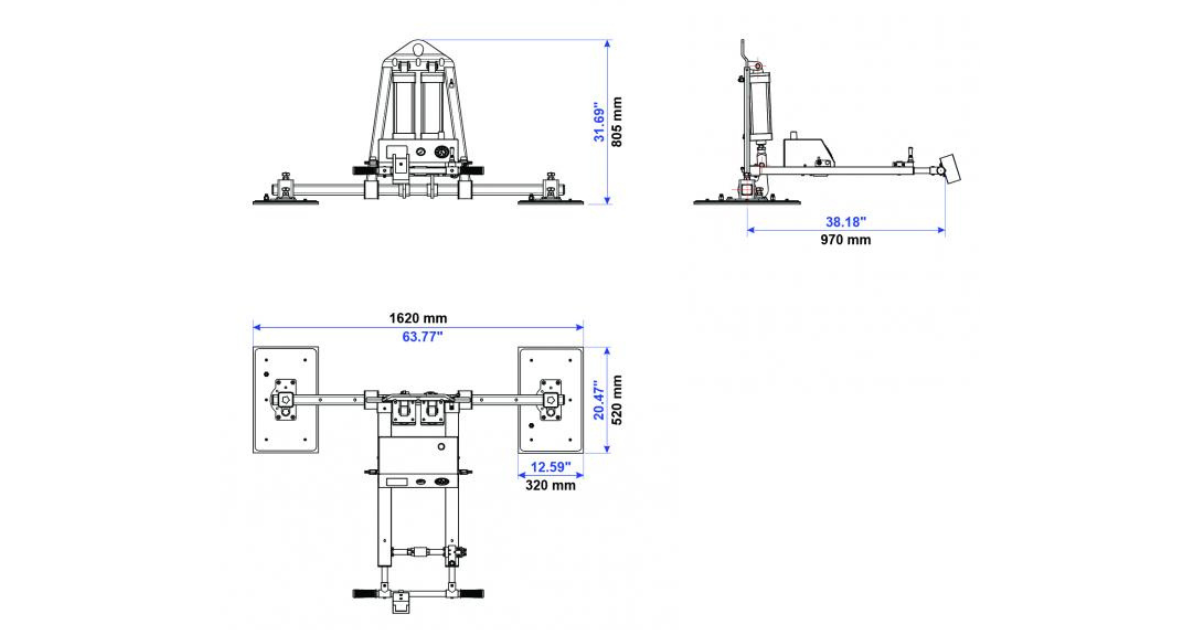

Packaging dimensions 1480x390x960 58.3"x15.3"x37.8"



 Battery information for the device:

Code battery GBA 12V 2.0Ah Bosch
Type battery Lithium-ION
Voltage 12V
Current 2.0Ah
Quantity 1
Continuous operation time with mode saving pressure 2 hours
Working time with mode saving pressure 6 hours
Continuous operation time with mode audio alarm only 120 hours
Working time with mode audio alarm only 360 hours


 Battery charger:

Code battery GAL 12V-40 Bosch
Input supply voltage 220-240VAC
Output voltage 12V
Output current 4.0Ah
Quantity 1
Full charger time 0.5 hour
Weight 460 gram


 Compressed air requirement:

Air consumption 180 liters/minute
Supply air pressure 5 bars (72 psi)
