Black Belt Rail Saw BBS-014

Black Belt Rail Saw BBS-014

$3,699.00 USD
$3,699.00 USD
Sale Sold out
Shipping calculated at checkout.

Part #

BBS-014

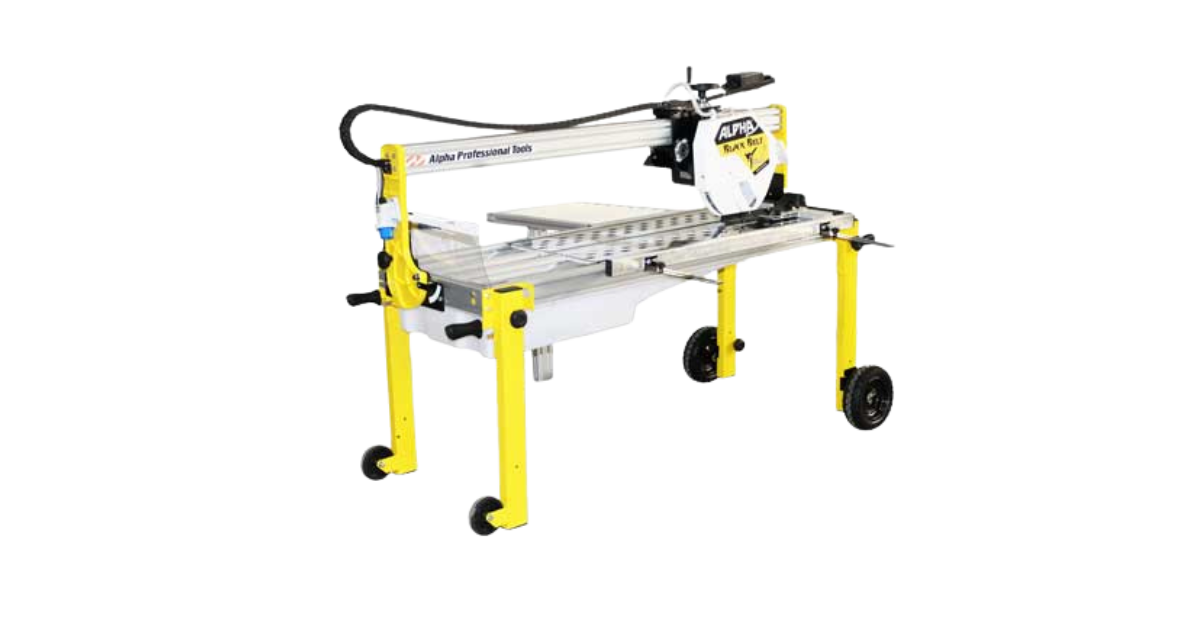

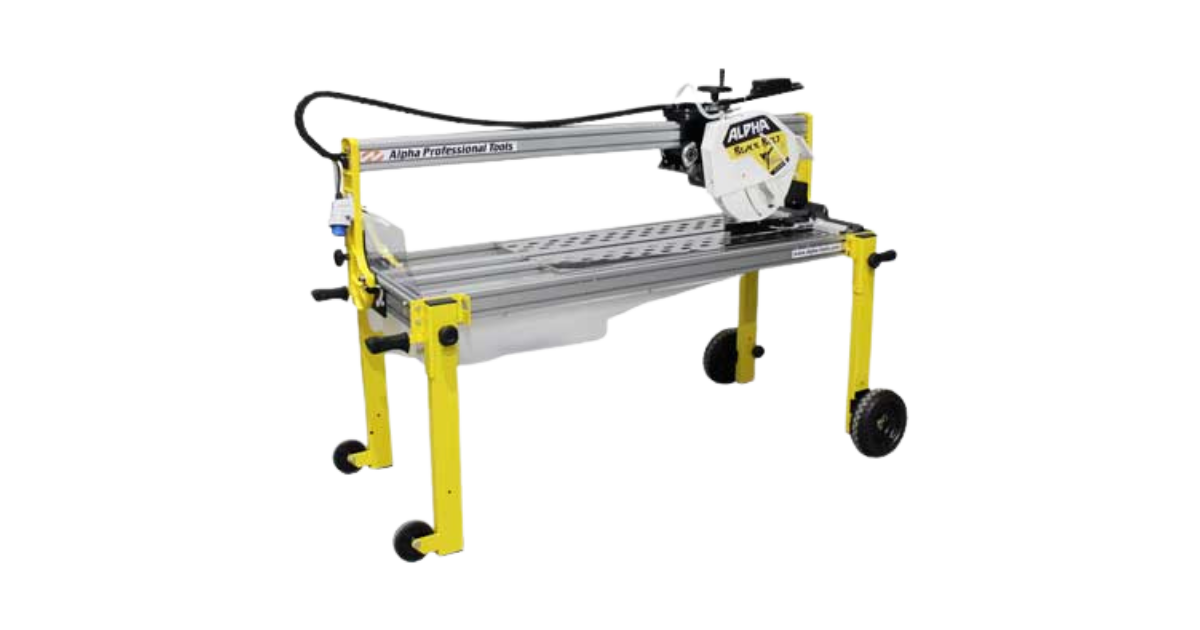

The Alpha® Black Belt Rail Saw is a top choice for tile installers, stone workers, and hardscape contractors. It's built to handle tough jobs with ease.>more


Key Features

  • Strong and Stable: Made with a rugged aluminum table chassis for stable and long-lasting use.
  • Powerful Motor: Comes with a 230V, 13.5 amp motor that runs at 2,800 RPM. It can use both 12-inch and 14-inch blades.
  • Deep Cuts: Can cut up to 4 inches deep in one go, and 5 inches with a step cut.

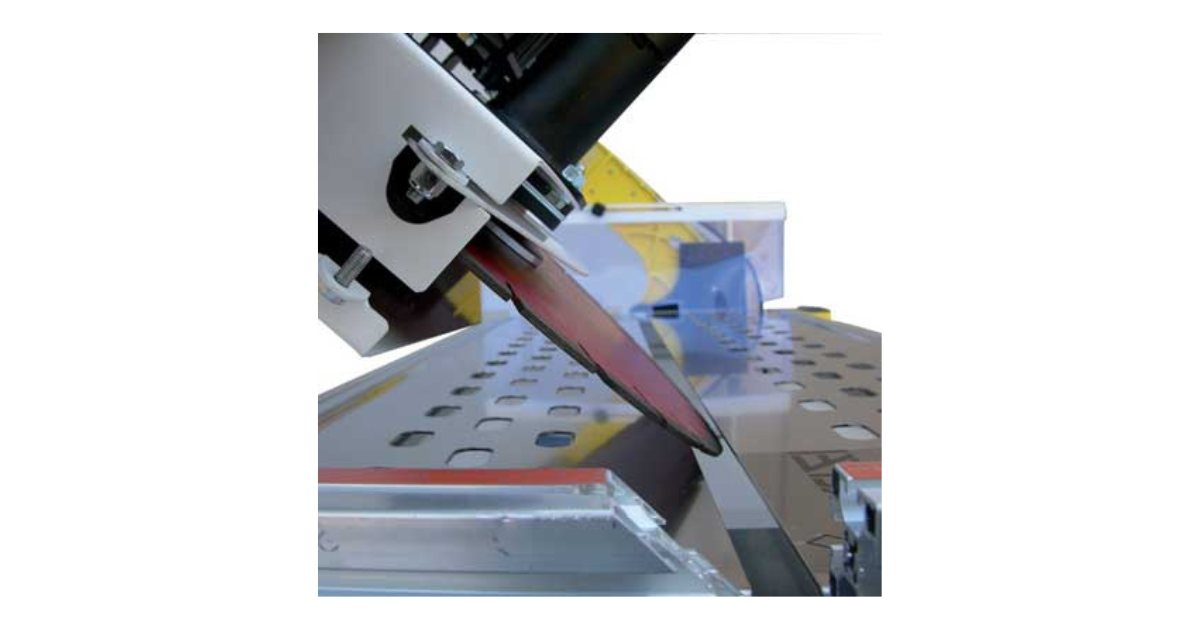

  • Adjustable Cutting: The cutting head can tilt for different depths and angles, making miter cuts easy.
  • Smooth Movement: Features stainless steel head rails and adjustable ball bearings for precise cuts.
  • Water Pump: Includes a maintenance-free magnetic-induction water pump to keep the blade cool and reduce dust.

Easy to Use and Safe

  • Transportable: Comes with table handles and heavy-duty wheels for easy moving.
  • Safety Features: Blade guards minimize exposure and reduce water splash.
  • Large Cutting Capacity: Can rip cut up to 51 inches and diagonal cut up to 33 inches.
  • Sturdy Design: Handles up to 485 lbs of weight, but weighs only 213 lbs itself.

Warranty

  • One Year Tool Warranty: Comes with a one-year warranty for your peace of mind.

The Alpha® Black Belt Rail Saw is a reliable tool that makes cutting easier and safer. It's a great addition for any professional looking to get the job done right!

Product Details
Specification Data
Model BBS-014
Rating 230Volts
Frequency Single-phase AC, 60Hz
Amperage 13.5A
Power 1200W
Max. RPM 2,800 RPM
Max. HP 3.0 HP (2.2KW)
Weight 231 lbs (105 kgs)
Arbor 1" (25.4mm) & 60mm
Cutting Disc Diameter 12" / 14" (300mm / 350mm)
Max. Cutting Depth 5" (125mm)
Max. Cutting Length 51" (130cm)
Cord 13.1ft (4m) Single Phase
Plug Type 16A 250V ~ 2P+T



Manual : Black Belt Saw BBS-014 Manual v0624
Flyer : New From Alpha 2025
Flyer : New From Alpha 2024
Flyer : Black Belt Saw BBS-014
Other : Warranty Information
