Diamax Cyclone CNC Finger Bit 1/2 Gas
Diamax Cyclone CNC Finger Bit 1/2 Gas
Regular price
$104.99 USD
Regular price
Sale price
$104.99 USD
Unit price
per
Shipping calculated at checkout.
SKU:FB158
Couldn't load pickup availability

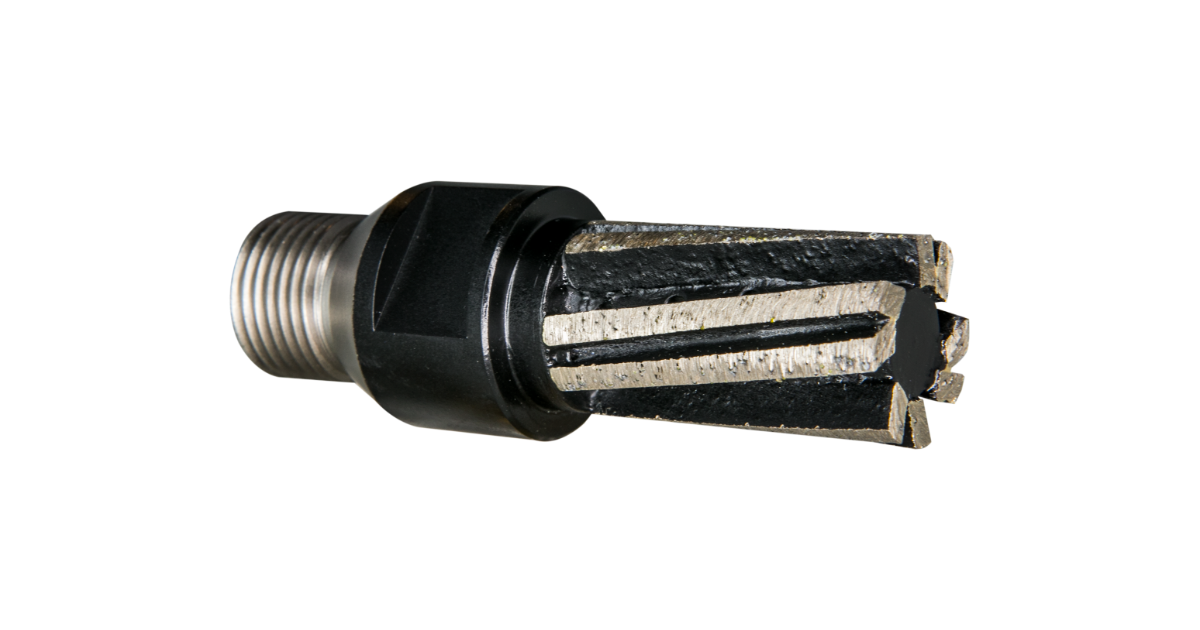

Diamax Cyclone CNC Finger Bit
- Available in 1 5/8” and 2 1/2” for different granite thickness
- Bottom segment gives the CNC operator the option of drilling into the slab like a core bit
- The 6 segment finger bit has the first ever reverse apple core design – thicker in the middle
- Feed rate : 8″ ~ 12″/min
- RPM: 4500 – 5500
- Wet Use Only
| ITEM # | SEGMENT SIZE | SEGMENT LENGTH | SEGMENT COUNT | FITTING | MAX RPM |
|---|---|---|---|---|---|
| FB158 | 1 5/8″ x 22 mm | 40 mm | 6 w/ bottom | 1/2 gas male | 4,500 – 5,000 |
| FB1212 | 2 1/2″ x 22 mm | 65 mm | 6 w/ bottom | 1/2 gas male | 4,500 – 5,000 |
| FBRT158 reverse thread |
1 5/8″ x 22 mm | 40 mm | 7 w/ bottom | 1/2 gas male | 4,500 – 5,000 |
