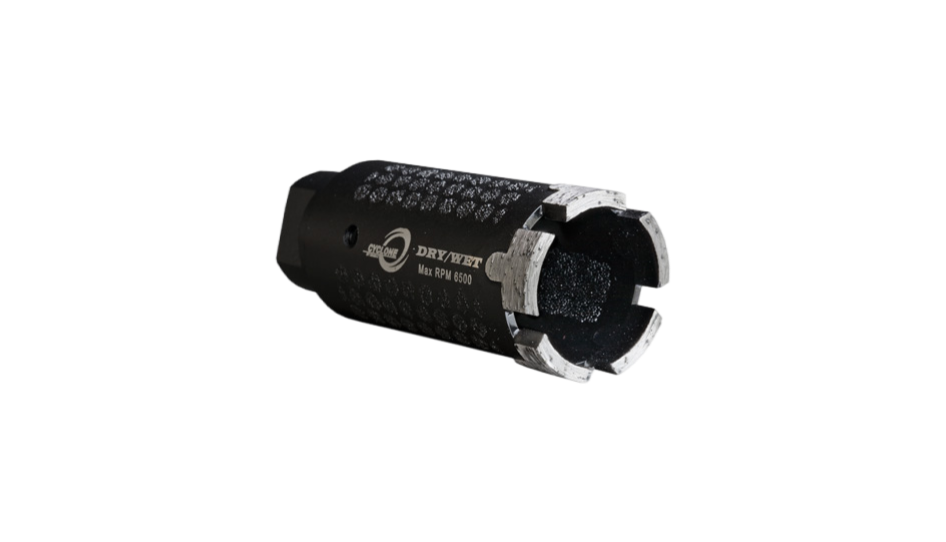

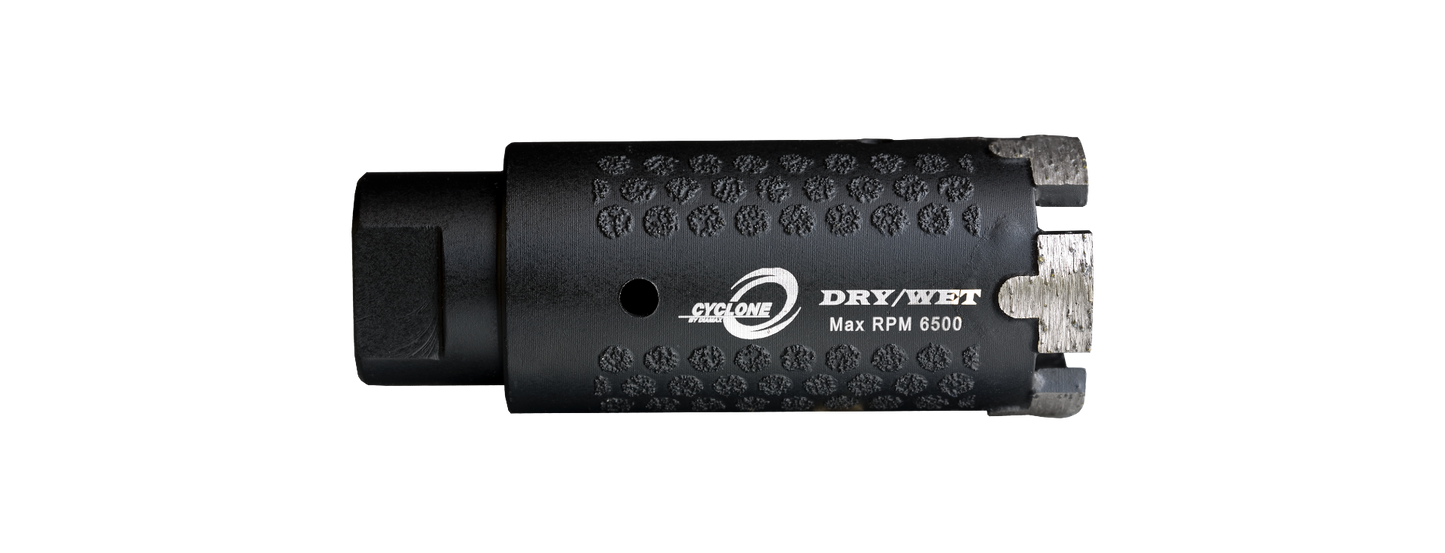

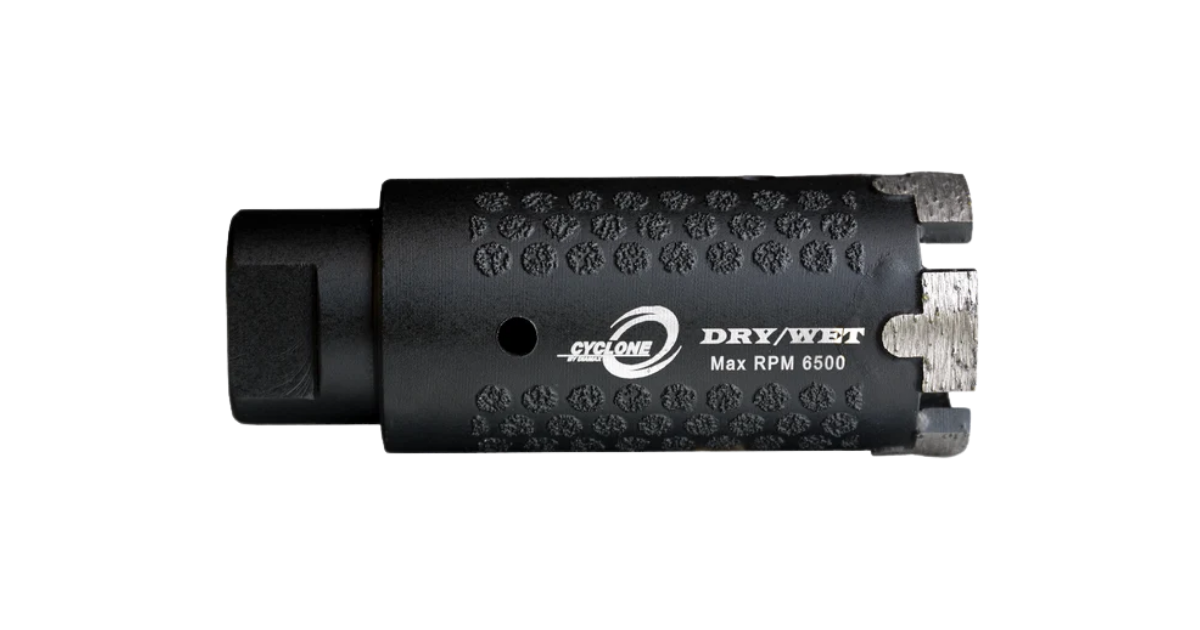

Diamax Cyclone Dry Core Bit with Inside/Outside Protection

Diamax Cyclone Dry Core Bit with Inside/Outside Protection

$69.99 USD

$69.99 USD

Sale Sold out

Shipping calculated at checkout.

Size 1" x 5/8-11 1-1/4" x 5/8-11 1-3/8" x 5/8-11 1-1/2" x 5/8-11 1-5/8" x 5/8-11 1 3/4" x 5/8-11 2" x 5/8-11

Part #

SKU:CDBYTSD100

Quantity

Inside vacuum brazed diamonds assist with smooth drilling and easy core removal
Also comes with outside vacuum brazed protection
T-segment design minimizes segment loss
Perfect for use in the field when water is not an option
Use wet or dry
Recommended for Engineered Stone and Granite
Usable length 3"
Max RPM 1" to 1-1/2" is 6,500
Max RPM 1-5/8" to 1-3/4" is 5,300
Max RPM 2" is 4,200

ITEM #	SIZE	FITTING	USABLE LENGTH	RPM HAND TOOL	RPM DRILL PRESS
ITEM #	SIZE	FITTING	USABLE LENGTH	Stone hard/soft	Stone hard/soft
CDBYTSD100	1″	5/8″ – 11 thread	3″	3,200 / 6,500	2,000 / 3,200
CDBYTSD114	1 ^1/4^″	5/8″ – 11 thread	3″	4,800 / 6,500	2,000 / 3,200
CDBYTSD138	1 ^3/8^″	5/8″ – 11 thread	3″	4,800 / 6,500	2,000 / 3,200
CDBYTSD112	1 ^1/2^″	5/8″ – 11 thread	3″	4,800 / 6,500	2,000 / 3,200
CDBYTSD158	1 ^5/8^″	5/8″ – 11 thread	3″	4,800 / 6,500	2,000 / 3,200
CDBYTSD134	1 ^3/4^″	5/8″ – 11 thread	3″	4,500 / 5,300	2,200 / 2,700
CDBYTSD200	2″	5/8″ – 11 thread	3″	4,500 / 5,300	2,200 / 2,700
