Diamax

Diamax Cyclone Ultra Incremental Bits & Mandrels

$52.99 USD

Sale Sold out

Shipping calculated at checkout.

Diamax Cyclone Ultra Incremental Bit 20mm Diameter x 20mm Long M12 Thread 20mm Diameter x 20mm Long M12 Reverse Thread 8mm Diameter x 15mm Long 1/2 Gas Reverse Thread 10mm Diameter x 15mm Long 1/2 Gas Reverse Thread Cyclone Mandrel with Brass Sleeve 70mm Long M12F to 1/2 Gas Male Cyclone Mandrel Reverse Thread 70mm Long M12F to 1/2 Gas Male Cyclone Mandrel Short Reverse Thread 25mm Long M12F to 1/2 Gas Male Cyclone Mandrel Short 35mm Long M12F to 1/2 Gas Male Cyclone Brass Sleeve

Part #

SKU:FBTU2020

Quantity

Diamax Cyclone Ultra Incremental Bit

For use on sink cut-out machines
Specific metal bond and diamond composition provides fast and clean milling in porcelain and ultra compact material
Micro incremental bits are designed for cutting at faster speeds. Used to mill tight corners and outlet holes.
Reverse thread options available
Also may be used to cut Engineered Stone, Granite, and Quartzite
Radial Arm Machines use Mandrel FBSTIP-M
Wet Use Only
Max RPM is 4200

ITEM #	DIAMETER	USABLE LENGTH	FITTING	BOND	RPM

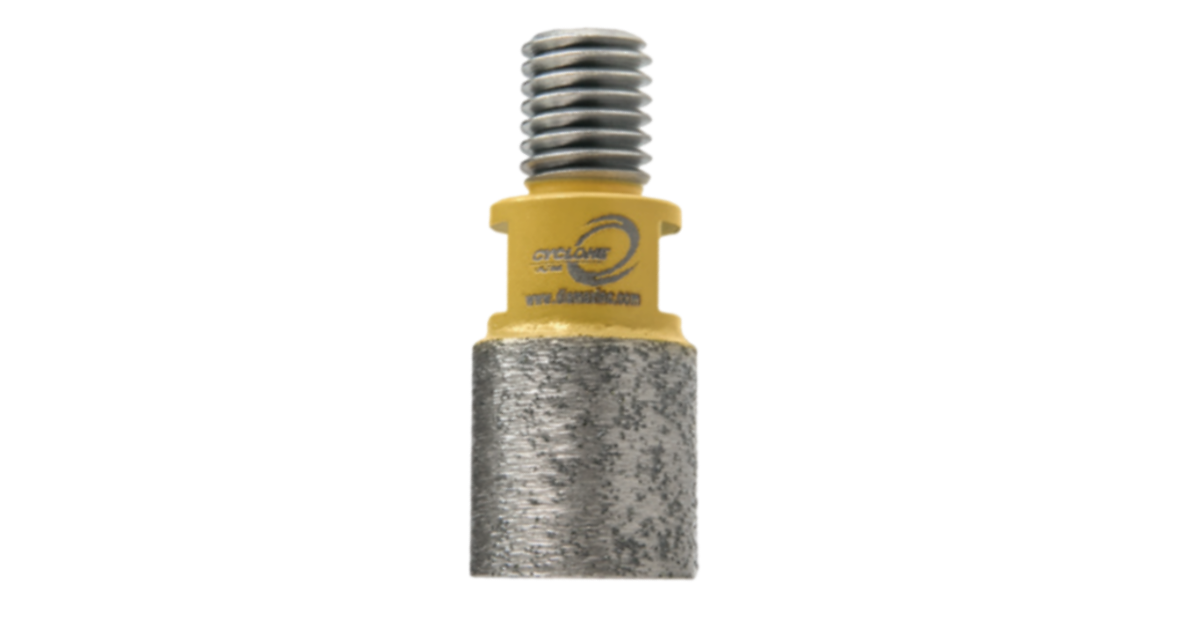

FBTU2020	20 mm	20 mm	M12	Medium	4,200

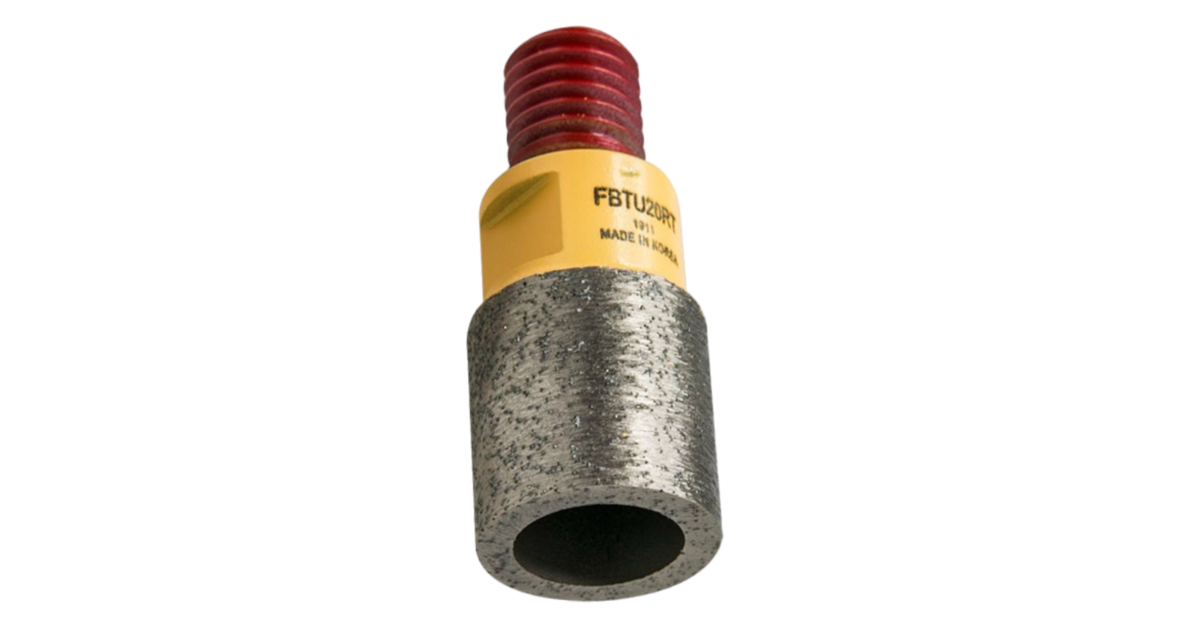

FBTU20RT	20 mm	20 mm	M12 reversed	Medium	4,200
Micro Incremental Bits

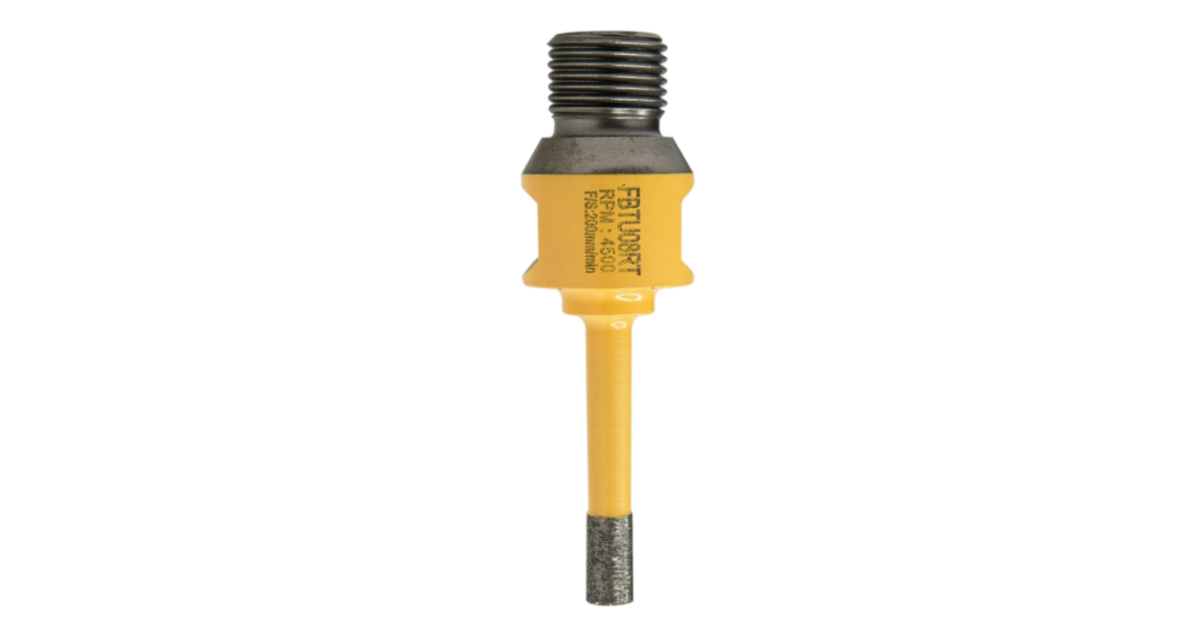

FBTU08RT	8 mm	15 mm	1/2 gas reversed	Medium	4,200

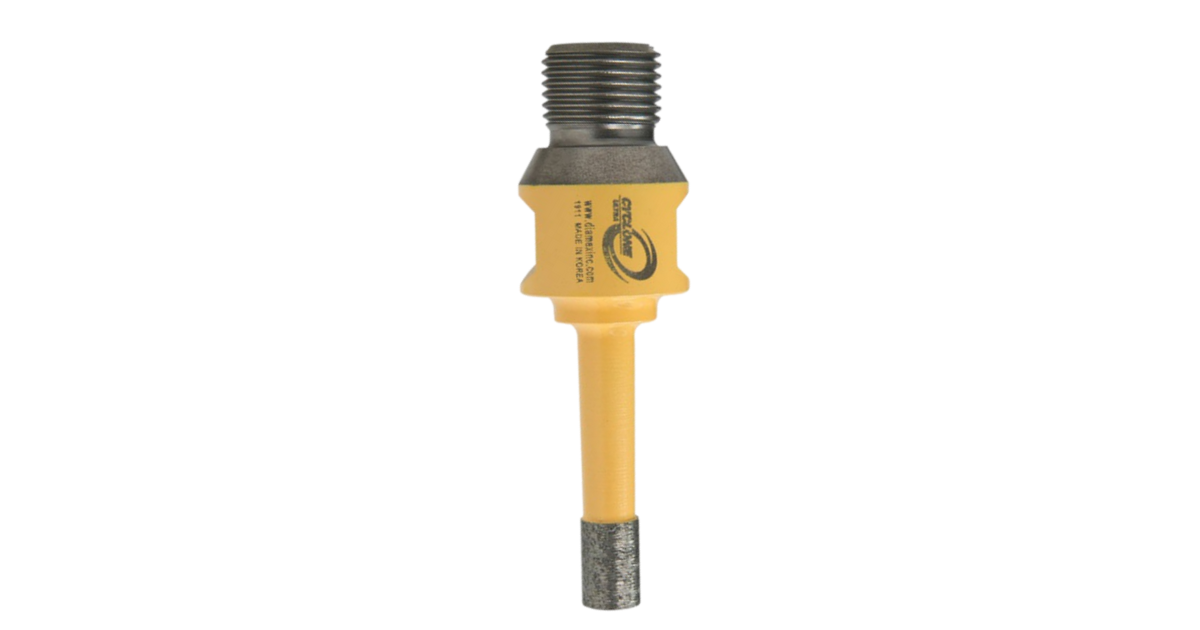

FBTU10RT	10 mm	15 mm	1/2 gas reversed	Medium	4,200

Incremental Accessories

ITEM #	DESCRIPTION	SHAFT LENGTH	FITTING

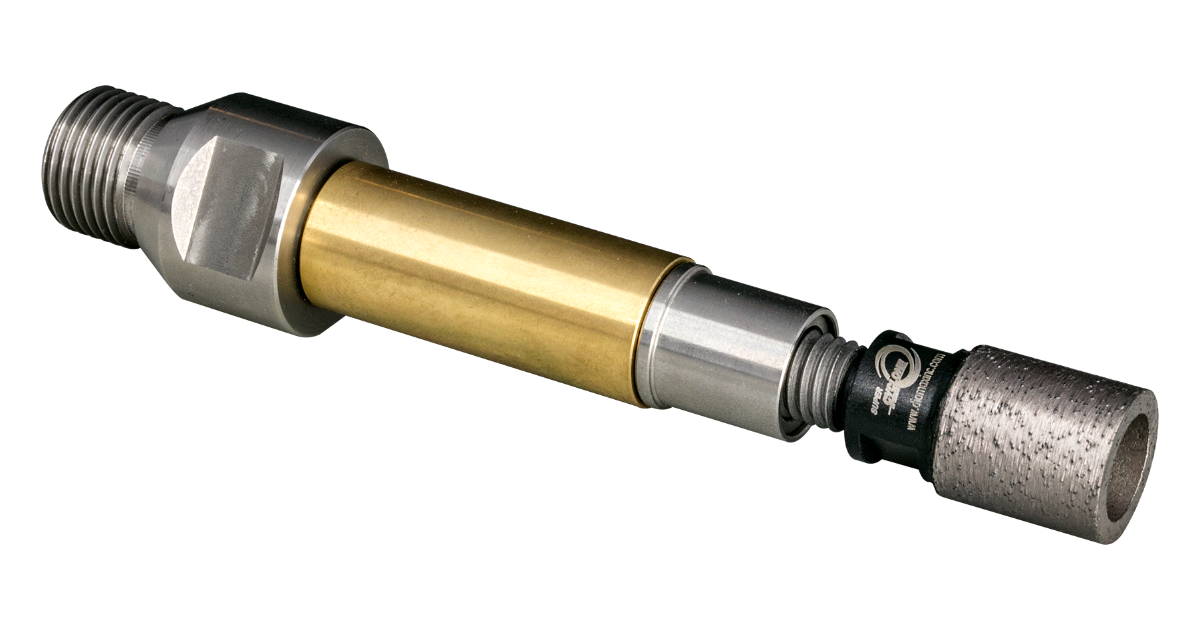

FBSTIP-M	Cyclone mandrel with sleeve	70 mm	M12 female - 1/2 gas male
FBSM-RT	Reverse thread Super Cyclone mandrel	70 mm	M12 female - 1/2 gas male
FBSM35	Super Cyclone Mandrel Thread (short)	35 mm	M12 female - 1/2 gas male
FBSM-RT25	Reverse thread Super Cyclone mandrel (short)	25 mm	M12 female - 1/2 gas male
