GRABO High Flow

GRABO High Flow

$599.00 USD
$599.00 USD
Sale Sold out
Shipping calculated at checkout.

Part #

GHF-V1

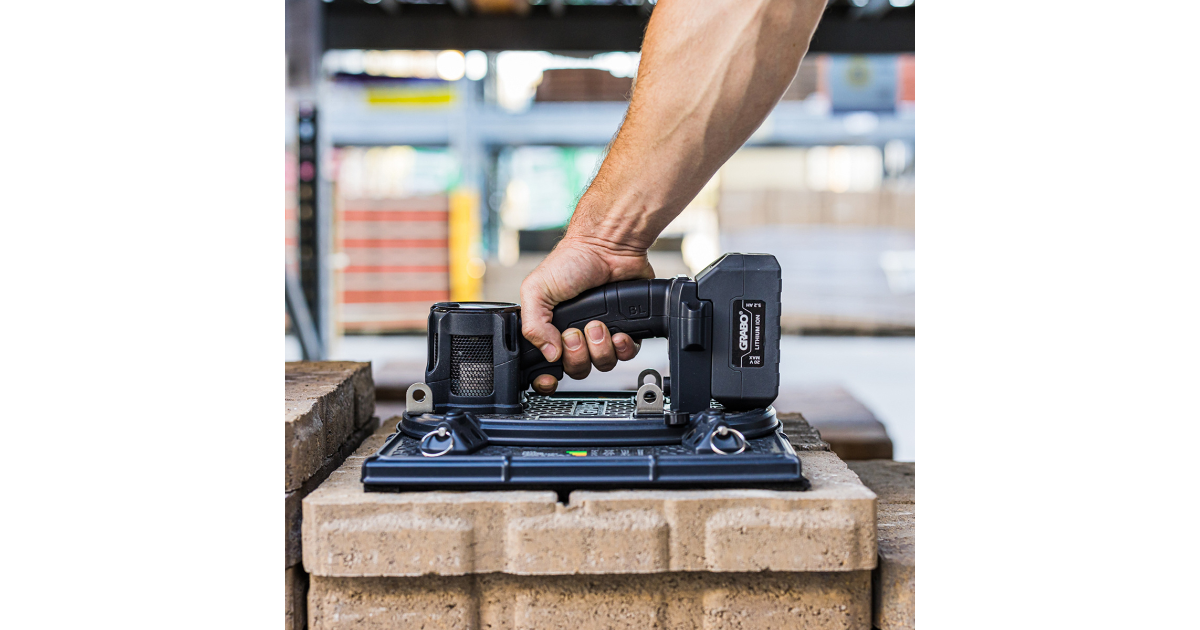

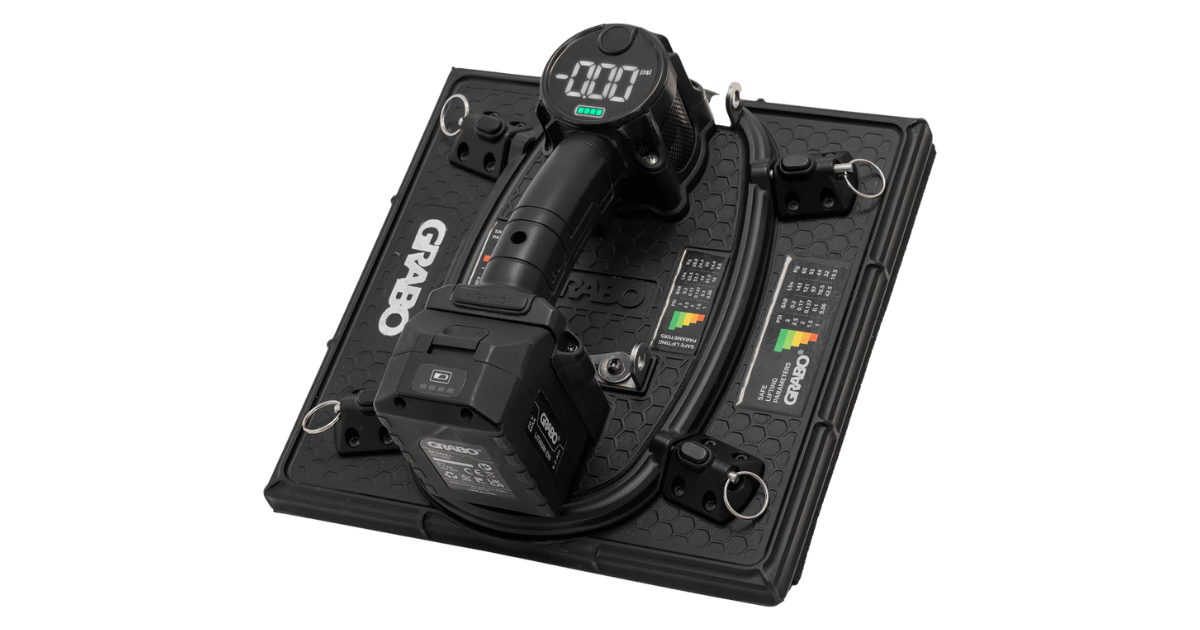

The GRABO High-Flow is our most powerful and advanced vacuum lifter, engineered to handle the most challenging materials. Its revolutionary vacuum technology effortlessly grips extremely porous and rough surfaces like dry cast pavers and textured stone, which are impossible for other lifters. Featuring a SMART CUT foam seal and an ergonomic T-handle, the High-Flow provides a secure grip and simplifies the handling of difficult materials, boosting efficiency and safety on any job site.>more

Key Features:

  • Unmatched Porous Material Grip: Grips extremely porous and rough materials.
  • Heavy-Duty Lifting Capacity: Lifts up to 242 lbs (110 kg).
  • Live Digital Pressure Display: Real-time display for a confident lift.
  • Ergonomic T-Handle: Improves control and reduces fatigue.
  • Advanced Suction Technology: Ensures a firm grip on difficult surfaces.

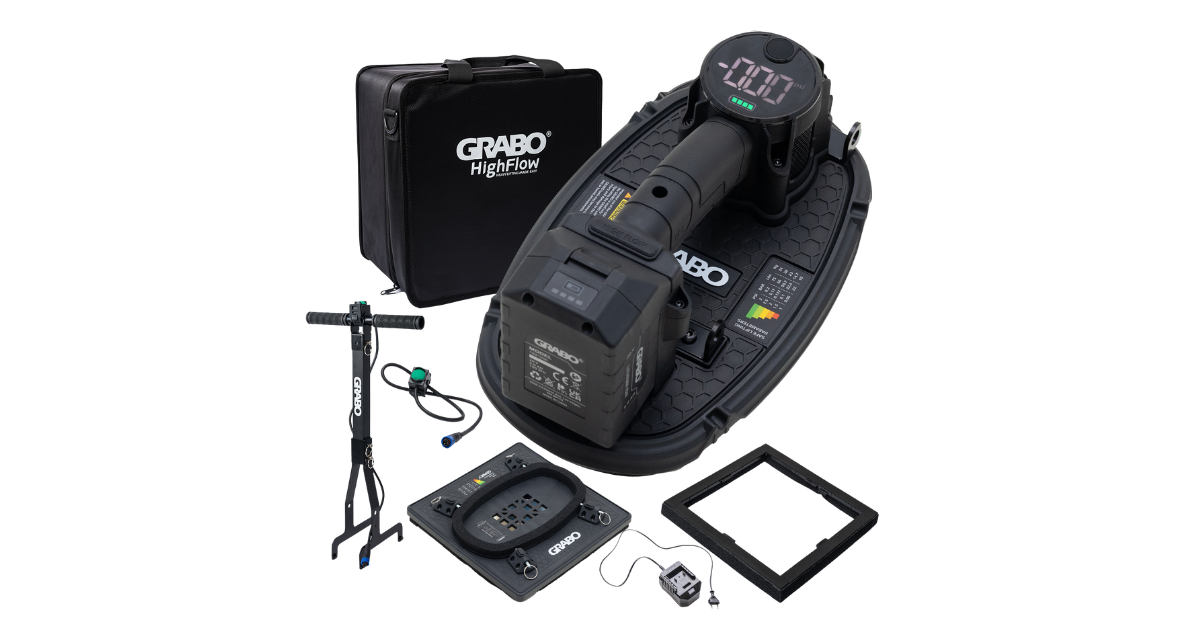

Your GRABO® HIGH-FLOW Kit Includes:

  • Grabo Vacuum Lifter

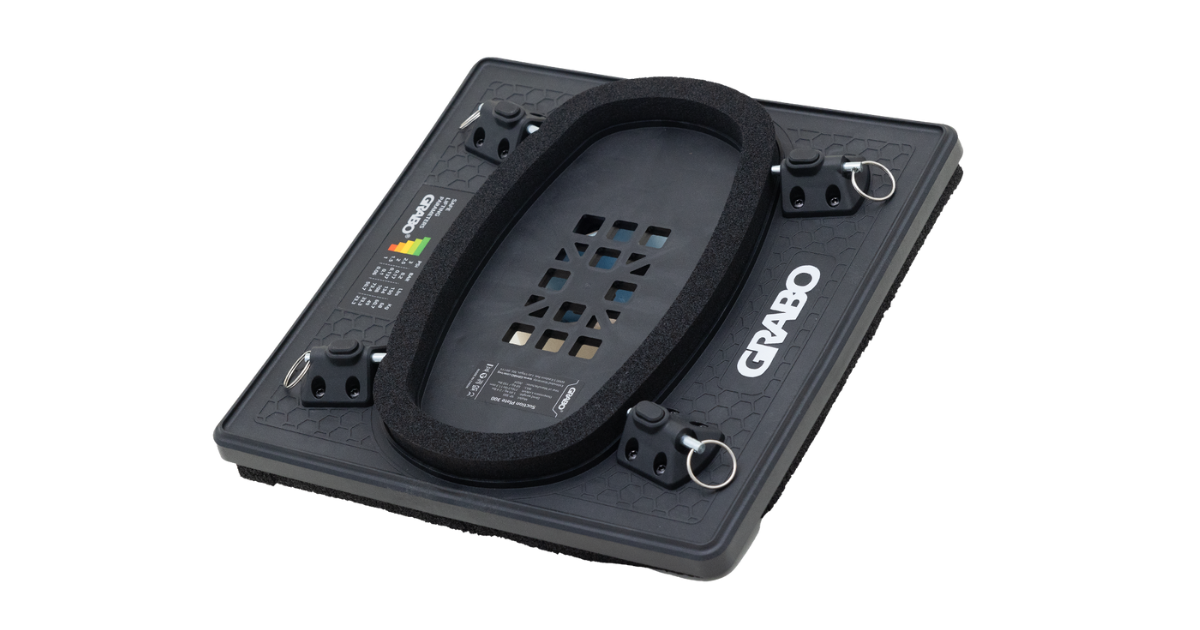

  • Suction plate 300 with SMART CUT foam seal
  • Two (2) GRABO HIGH FLOW Batteries
  • Battery Charger
  • T-Bar handle attachment with wired remote control ON/OFF Cable
  • Spare SMART CUT foam seal 300
  • Extra Filter
  • Operator’s manual

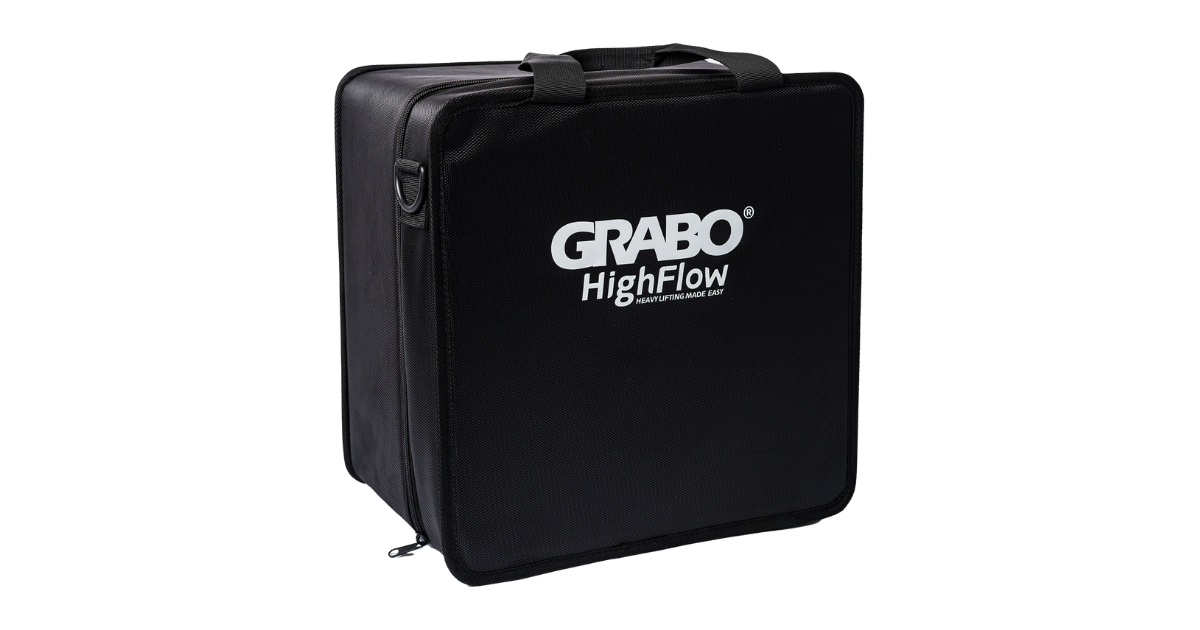

  • HIGH FLOW Canvas Carrying Case

Specifications

GRABO Comparison Chart

Electric vacuum lifting device GRABO® High-Flow
Dimensions 300 x 184 x 148 mm / 11.8 x 7.2 x 5.8 inches
Net weight (with the 300*300 add-on and battery) 2.9 kg / 6.4lbs
A-weighted sound pressure level* LpA=79.4 dB(A), uncertainty K=3 dB(A)
A-weighted sound power level* LwA=71.4 dB(A), uncertainty K=3 dB(A)
Vibration total value** 1.240 m/s2, uncertainty K=0.11 m/s2
Rated power 160 W
Maximum vacuum rate -0.20 Bar (-20 kPa)



Additional components Dimensions
Suction Plate 300 Dimensions 316 x 316 x 17.3 mm



Battery
Battery type Model TB21000
Battery rated capacity 5.0 Ah
Nominal voltage / charge voltage 18 V / 21 V
Charge current 4 A
Working time (full charge) 30 mins
Operating temperature 32 – 115°F (0 – 45°C ) Charge
-4 – 140°F (-20 – 60°C ) Discharge
Long-term battery storage (> 3 months) 0°C – 30°C / 32°F – 86°F charged to 18.5–19.5V (80–90% of full charge)



Battery Charger
Charging output voltage 21 V
Charging output current 3.6-4.4 A underload, 4.5 A max
Overcharge protection 4.25 V
Charging input 100 – 240 V AC; 50/60 Hz; 2A max.
Rated power 84W
Operating temperature 0°C – 40°C / 32°F – 104°F
Storage temperature -10°C – 75°C / 14°F – 167°F
Working conditions Indoor use only; not waterproof (IP0)
