GRABO Slender Seal
GRABO Slender Seal
Regular price
$45.00 USD
Regular price
Sale price
$45.00 USD
Unit price
per
Shipping calculated at checkout.
SKU:RK23002
Couldn't load pickup availability
*Contact us if ordering 4 order more units to receive special shipping cost

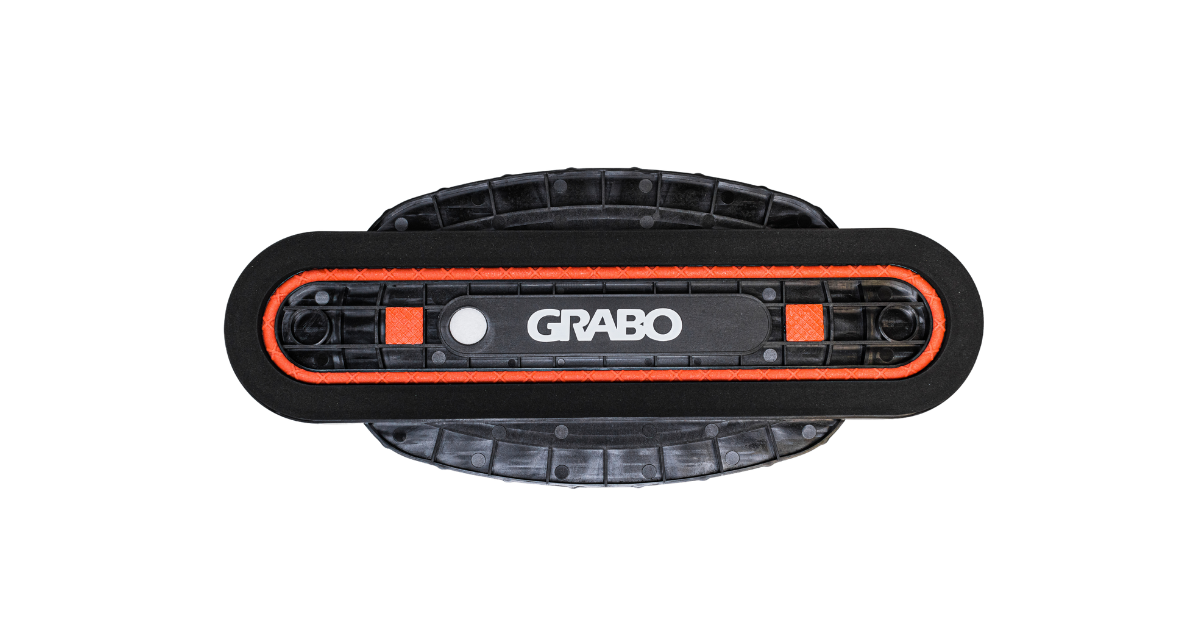

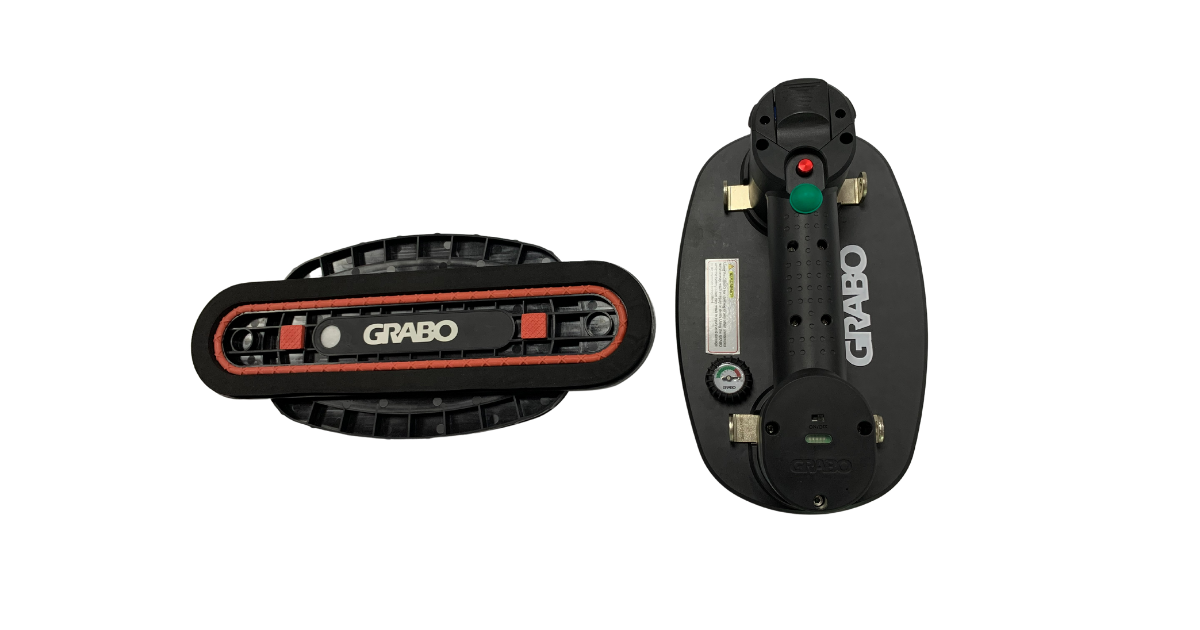

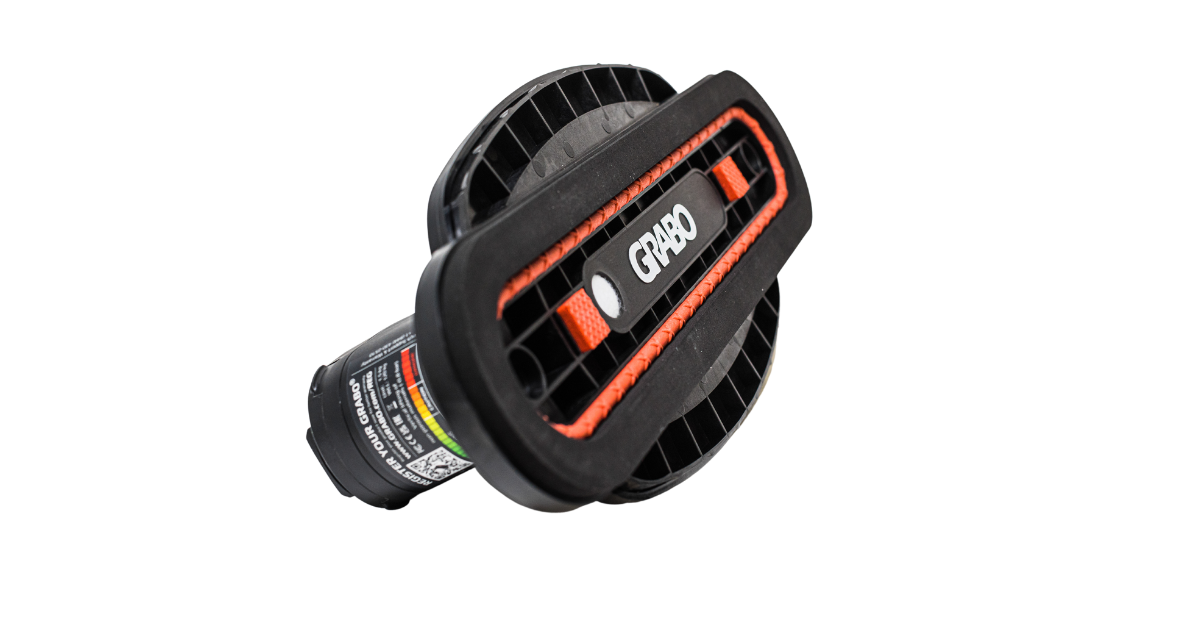

Slender Seal is a new seal system that fits all GRABO models, including Nemo GRABO, GRABO Pro lifter-20, RTC tools GRABO, FXAH-120 Probst GRABO, Topspin Powertools GRABO and other co-branded units.
For lifting surfaces with a longer narrow surface area - such as long Tiles - Pavers- Pipes -Cut to size bench tops.
Lifting Capacity:
 |
Perpendicular Hold Z | Parallel Hold Y | Parallel Hold X | |||
|---|---|---|---|---|---|---|
| Maximum value | Safe value（50%) | Maximum value | Safe value（50%) | Maximum value | Safe value（50%) | |
| Glass | 225 Lbs (100kg) | 110 Lbs (50kg) | 110 Lbs (50kg) | 55 Lbs (25kg) | 220 Lbs (100kg) | 110 Lbs (50kg) |
| Metal | 145 Lbs (66kg) | 72.5 Lbs (33kg) | 110 Lbs (50kg) | 55 Lbs (25kg) | 220 Lbs (100kg) | 110 Lbs (50kg) |
| Wood | 132 Lbs (60kg) | 66 Lbs (30kg) | 66 Lbs (30kg) | 33 Lbs (15 kg) | 176 Lbs (80kg) | 88 Lbs (40kg) |
| Rough Concrete | 105 Lbs (48kg) | 52.5 Lbs (24kg) | 110 Lbs (50kg) | 33 Lbs (15 kg) | 220 Lbs (100kg) | 110 Lbs (50kg) |
Maximum Capacity lifting is 132 lb (60 kg)
Specifications:
| Black foam seal | |
|---|---|
| Material | SBR rubber foam sponge |
| Color | Black |
| L x W x H | 16.2 x 6.9 x 1.24” (411 x 175 x 31.5 mm) |
| Dimension of seal | 14.6" (371mm) x 2.56" (65mm) |
| Density | 10.6 Lb/cft (170 kg/m^3) |
| Hardness, Shore C | 10_2 |
| Tearing pressure | 1800 Psi (126 kg/cm^2) |
| Compression to 25% size at | 8.5 Psi (6000 kg/m^2) |
| Lifetime (Compressions till performance reduction). | ~900 |
| Water Absorption, % | <=5 |
| Shrinkage at 160F (70C) for 24 hrs, % | <=20 |
| Recommended Storage Temperature | Room temperature |
| Red seal | |
| Material | Silicon Foam |
| Color | Red |
| L x W x H | 16.2 x 6.9 x 1.24” (411 x 175 x 31.5 mm) |
| Density | 40.5 Lb/cft (650 kg/m^3) |
| Hardness, Shore C | 55_5 |
| Water Absorption, % | |
| Recommended Storage Temperature | Room temperature |
| Full seal | |
| Features | Combined seal on plastic frame Slender profile |
