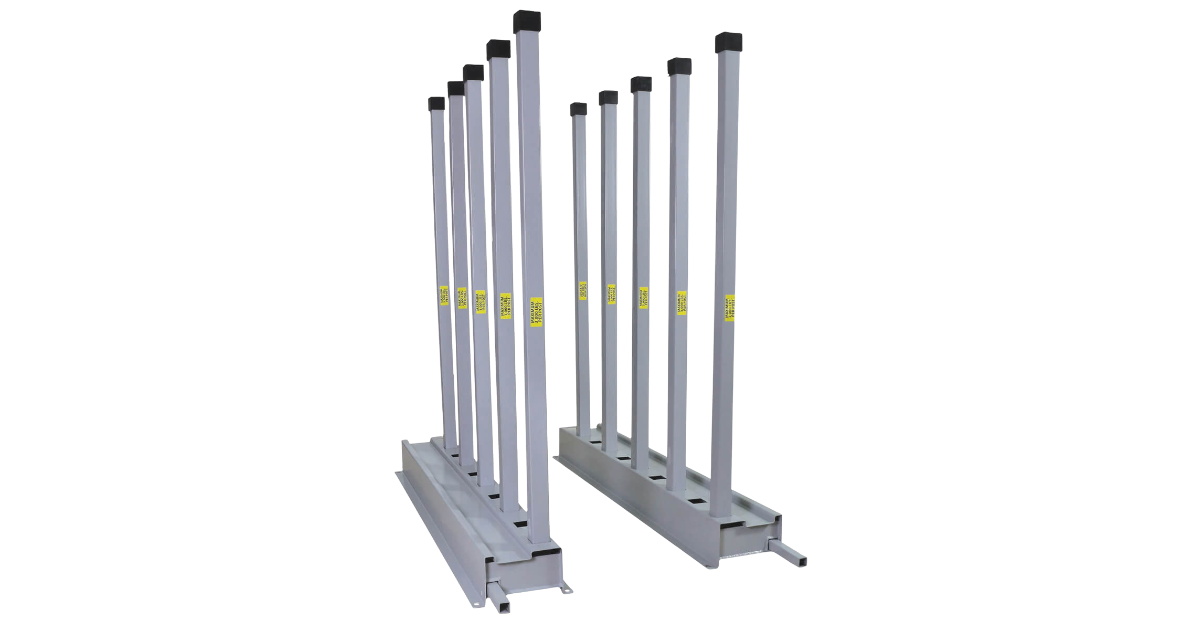

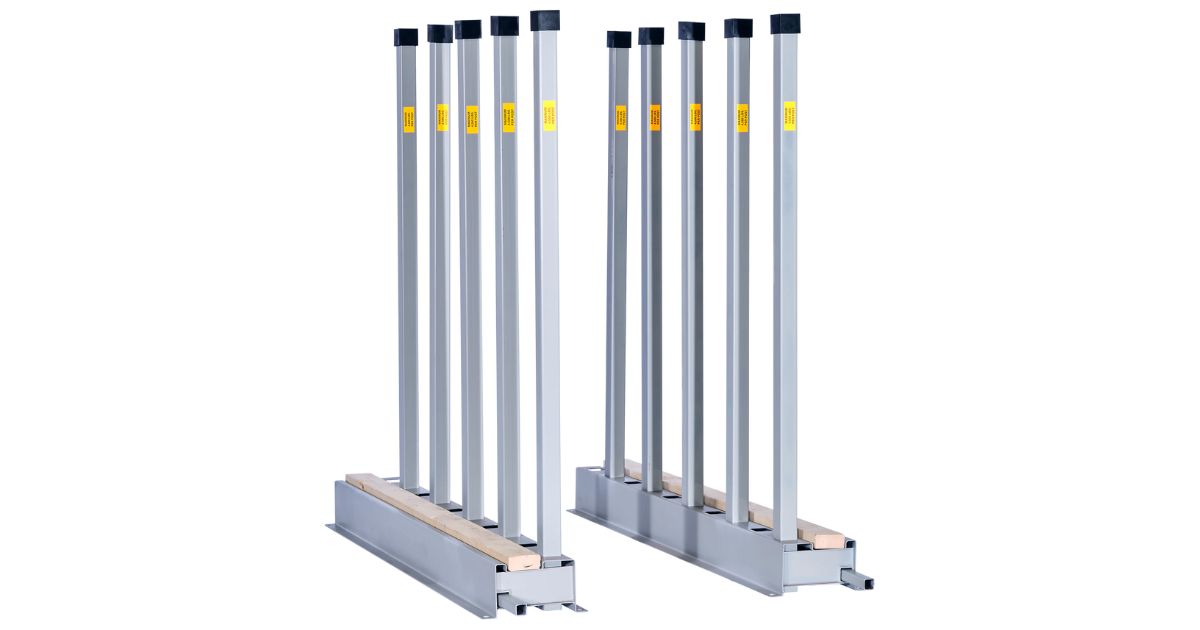

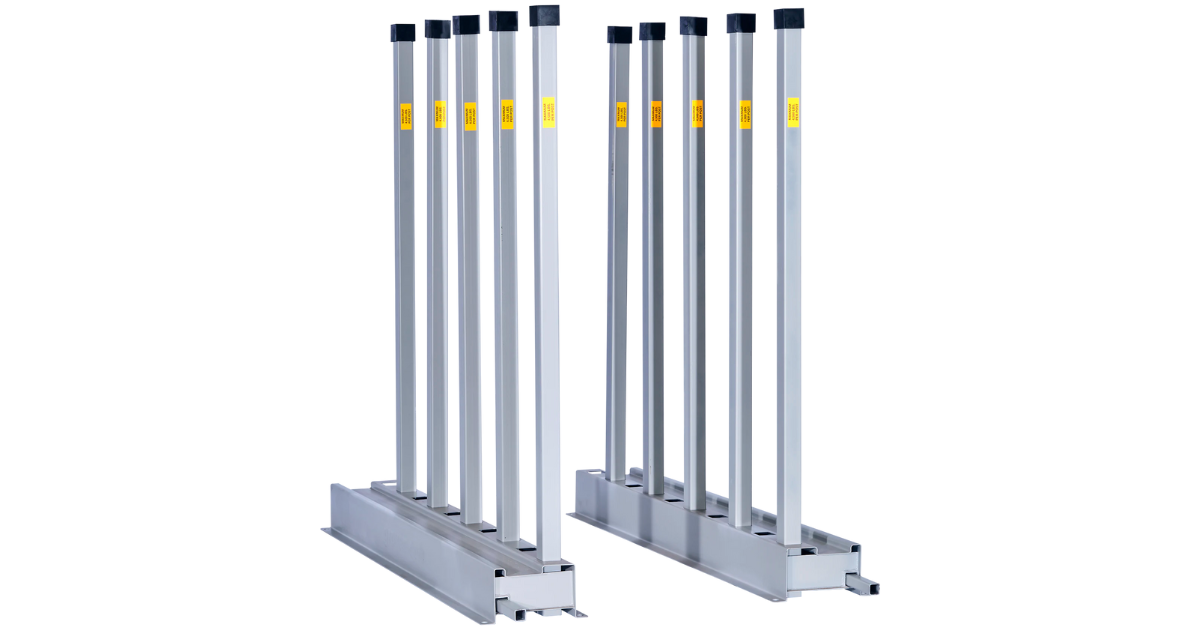

Groves Bundle Rack

• Heavy-Duty powder coated finish.
• Post height options available (40", 60" or 80")
• Complete with 11” connector tube for butting rails together in a straight line for desired length

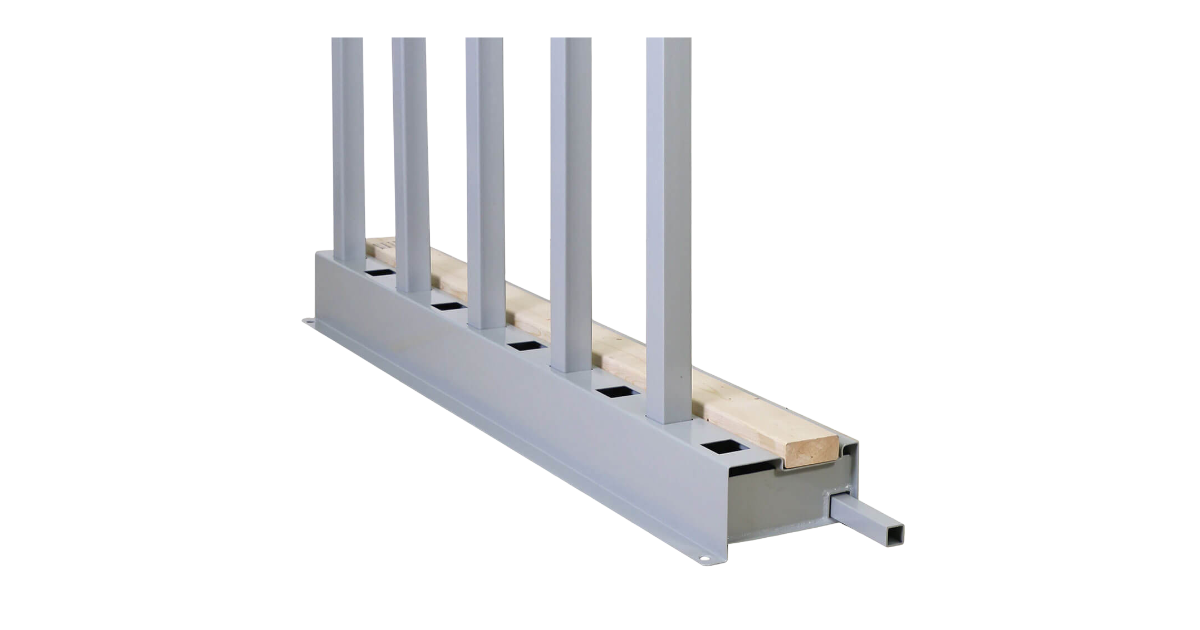

• Rails built with 2” square holes spaced 4” apart (10 holes). A steal plate with identical holes is welded and boxed inside the rail, 1” up from the bottom
• 2” square tube posts and 2” square rubber post caps to separate bundles and slabs

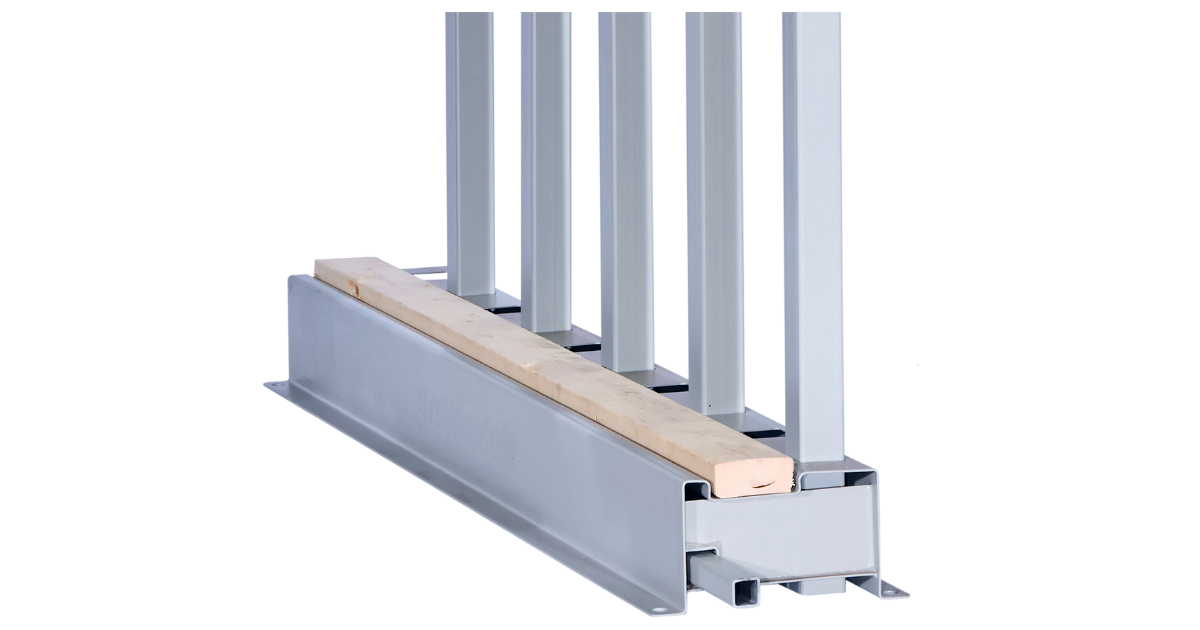

• Rails designed with slots to hold 2 x 4’s which protect the slab edges and the finish on the rails (2 x 4’s not included)
• Patent # 7143901
• Store bundles or slabs in your shop or warehouse with ease in this well designed, patented rack!

Assembly Instructions

SAFETY WARNING:

Maximum Weight Allowed Per Opening Is 9,000 Lbs. (4,500 Lb. Per Post)

Minimum Of 2-Degree Angle When Dropping Stone In Between Posts

Inspect Posts Each Time Used

NOTE: When Assembled The Overall Height Of The Posts Are 5.5” Less Then Listed

(EXAMPLE: 60” Post Will Be 54.5” Above The Top Of The Rail)
