Groves

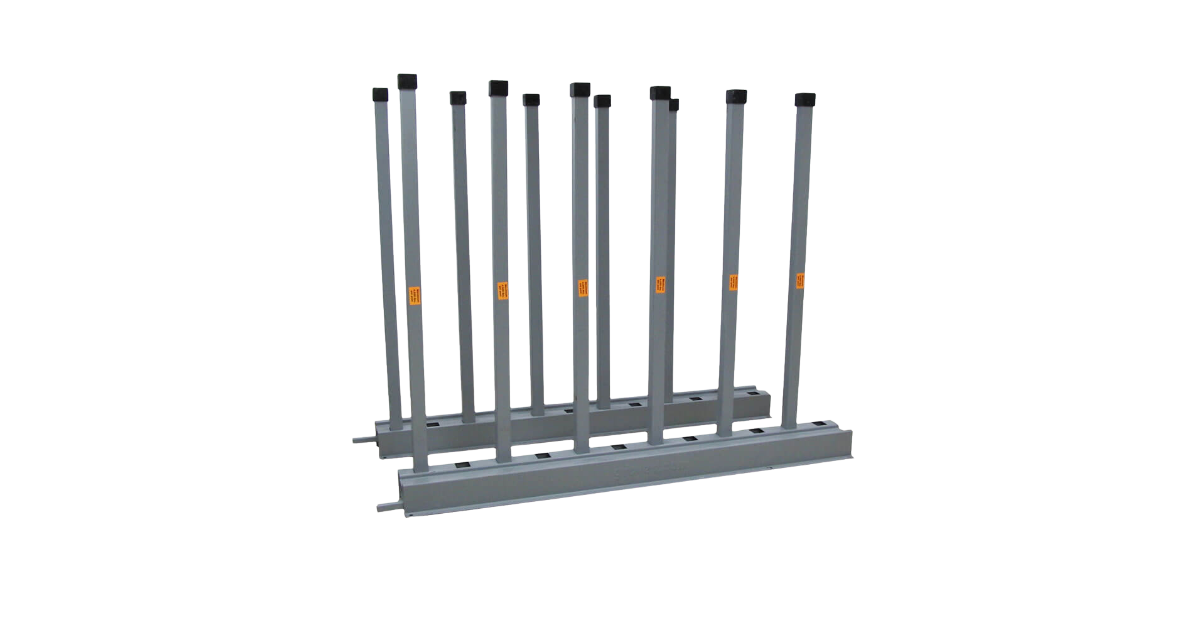

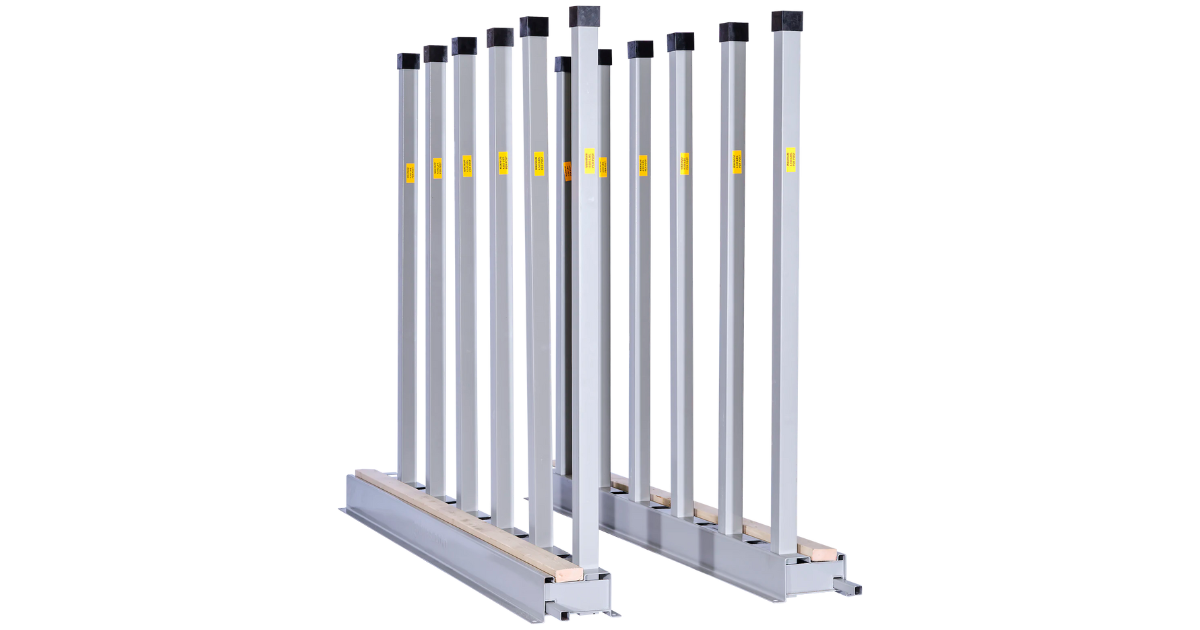

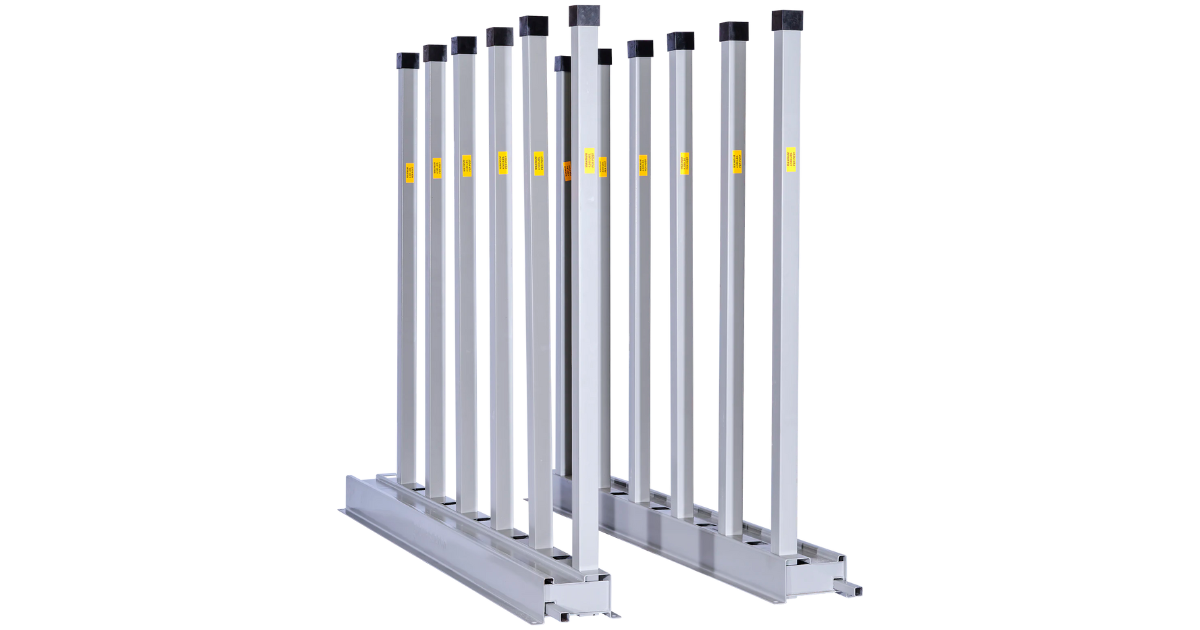

Groves Heavy Duty Bundle Rack - Long

Groves Heavy Duty Bundle Rack - Long

Regular price $1,799.99 USD
Regular price Sale price $1,799.99 USD
Sale Sold out
Shipping calculated at checkout.
Size

Part #

SKU:5-H7290

This heavy-duty rack is built for professional stone fabricators who need safe, reliable storage. It protects your valuable slabs from damage and your team from accidents, making your workshop more efficient and secure.

  • Prevents Dangerous Accidents: It safely holds up to 9,000 lbs between any two posts, handling your heaviest bundles with ease. The rack is built with thick 2.5” square steel posts and extra-long 90” base rails for maximum stability.
  • Protects Slabs from Damage: It helps prevent costly chips and scratches. The rails have slots to hold 2x4s, creating a wood buffer to protect slab edges, while rubber caps on each post protect the polished faces of the stone.
  • Engineered for Long-Term Reliability: Unlike standard racks, this system features a welded steel plate inside the rails that reinforces the post sockets. This prevents the posts from becoming loose over time, ensuring the rack remains stable and secure for years of heavy use.
  • Built for a Tough Environment: A heavy-duty powder coat finish protects the steel from rust and corrosion, ensuring a long life in the damp environment of a fabrication shop.

Creates an Organized Workshop: Each set includes a connector tube to link multiple racks together. This allows you to create a continuous and organized storage system of any length, improving your shop's workflow.



Detailed Specifications

Specification Measurement / Detail
Load Capacity 9,000 lbs. per opening (4,500 lbs. per post)
Post Height 72 inches (results in 66.5" usable height above rail)
Post Dimensions 2.5” x 2.5” square steel tube
Post Spacing Holes are spaced 5” apart on center
Rail Reinforcement Welded internal steel plate, boxed-in 1” from bottom
Finish Heavy-duty industrial powder coat
Included Hardware 11” connector tube for rail extension
Material Protection Integrated slots for 2x4s (2x4s not included), 2.5" rubber post caps


SAFETY WARNINGS:

  • USE .5″ HOLES LOCATED ON BOTTOM FLANGE FOR SECURING RAILS TO THE FLOOR
  • MAXIMUM WEIGHT ALLOWED PER OPENING IS 9,000 LBS. (4,500 LB. PER POST)
  • MINIMUM OF 2-DEGREE ANGLE WHEN DROPPING STONE IN BETWEEN POSTS
  • WHEN ASSEMBLED THE OVERALL HEIGHT OF THE POSTS ARE 5.5” LESS THEN LISTED (EXAMPLE: 72” POST WILL BE 66.5” ABOVE THE TOP OF THE RAIL)
