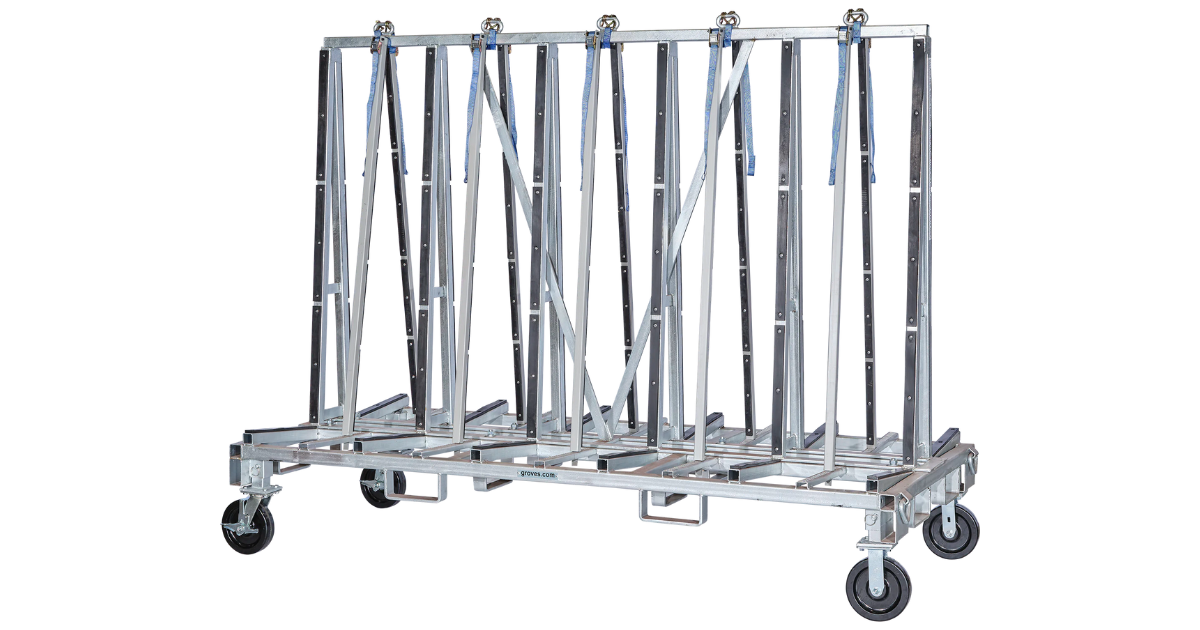

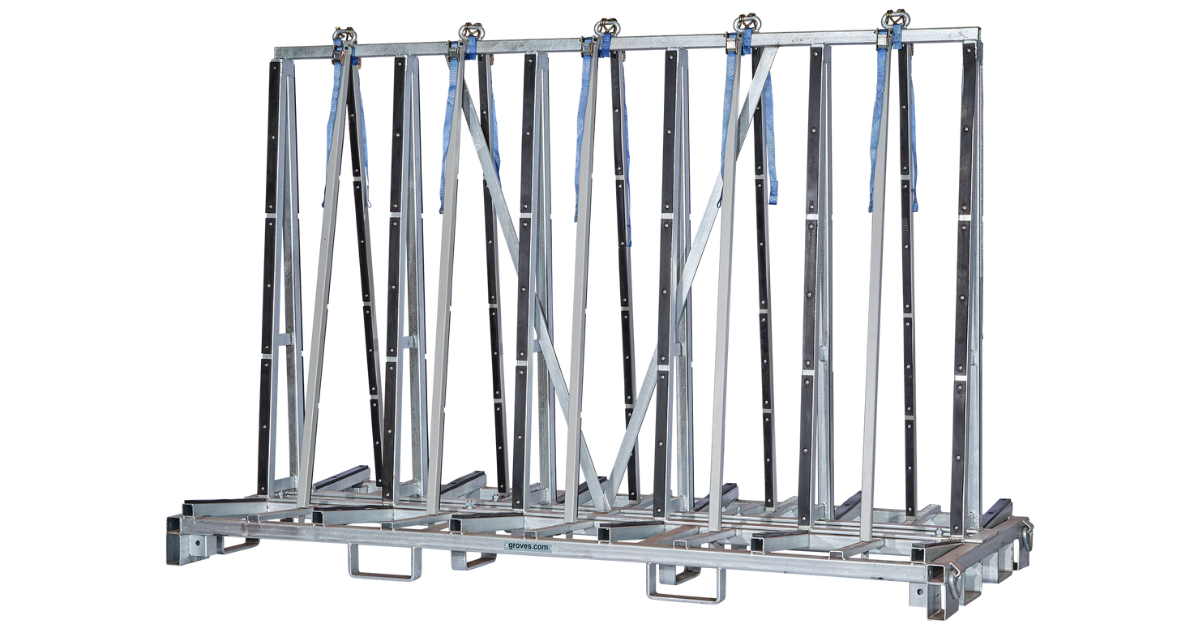

Groves Heavy-Duty Transport Rack - TR4496

• Hot dip galvanized finish.
• Fork pockets mounted on the sides and ends for loading flexibility.

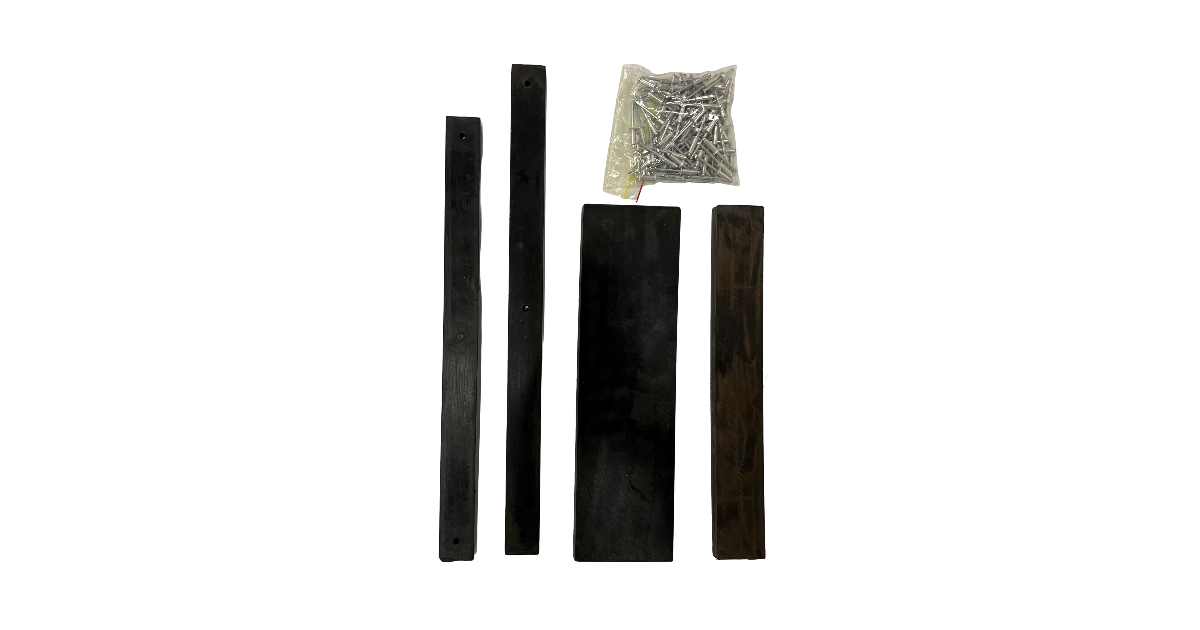

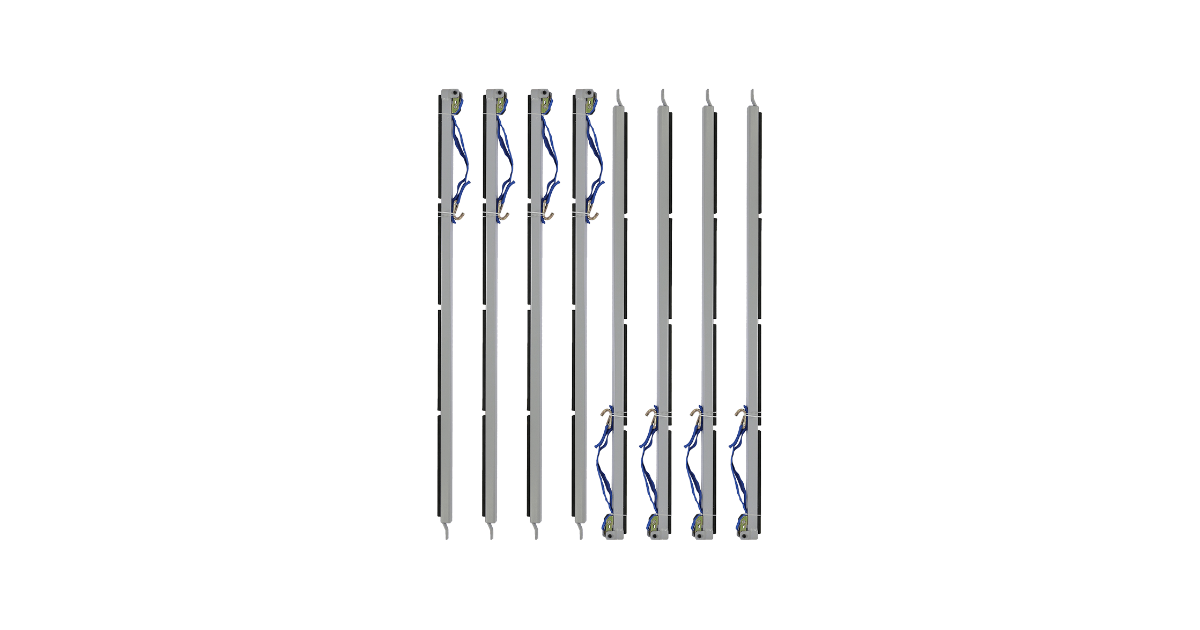

• Hold-down bars have riveted rubber strips the entire length of the bar.
• Bottom pads and uprights have riveted rubber strips.
• Quick-release mounting pins change rack from mobile to stationary in seconds (Optional caster kit: (4) 8” roller bearing wheels; Two swivel casters with brakes and two rigid).
• 87.21-degree angle
• Rack Length is 96" long
• Dimensions: 98.5” x 44” x 66” / Height with casters: 81" / Load height: 56"
• Weight: 620 Lbs.

SAFETY WARNING:

Maximum Weight Capacity: 4,000 Lbs.

Replacement parts and accessories sold seperately.

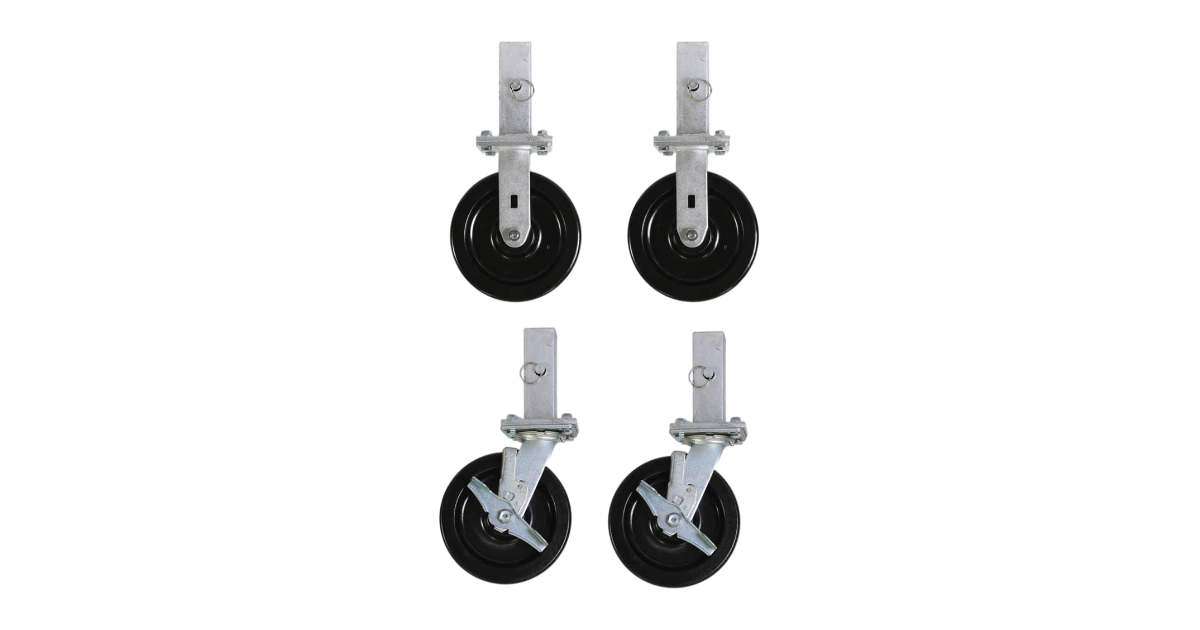

Caster Kit for TR4482/TR4496:

• 8" diameter roller bearing wheels
• Two swivel casters with brakes on one end and two rigid on the other
• Quick release mounting pins and caster stems change rack from mobile to stationary in seconds

SAFETY WARNING: Rated at 1,000 lb. capacity each

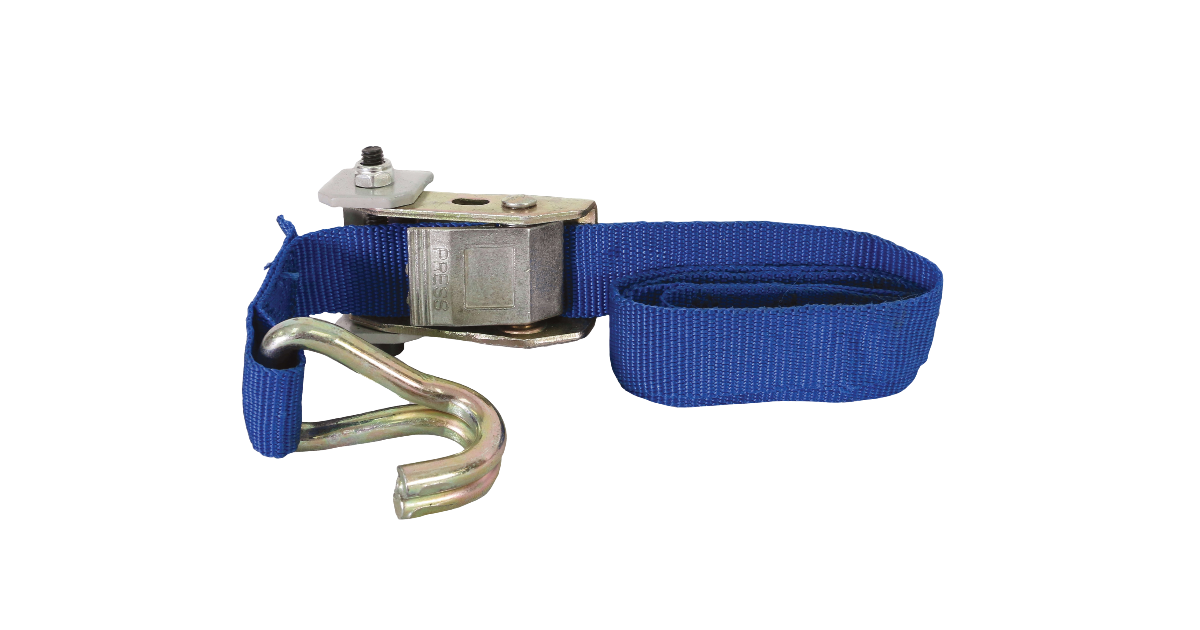

Replacement Strap and Rachet for TR4482/TR4496:

• Break strength 1,200 lbs
