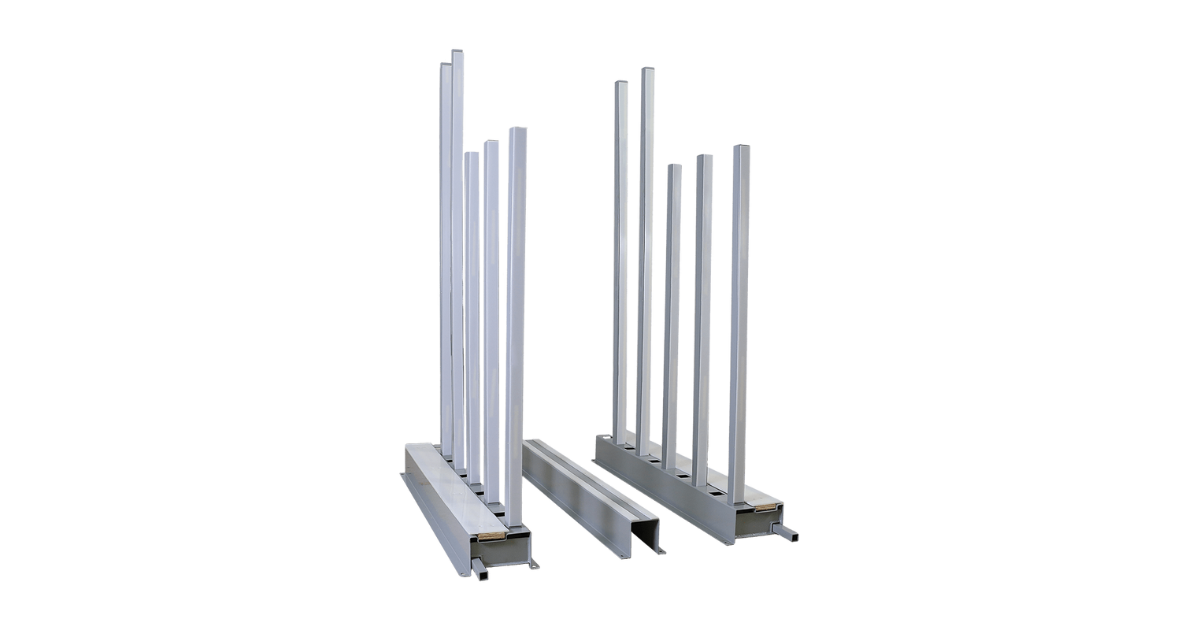

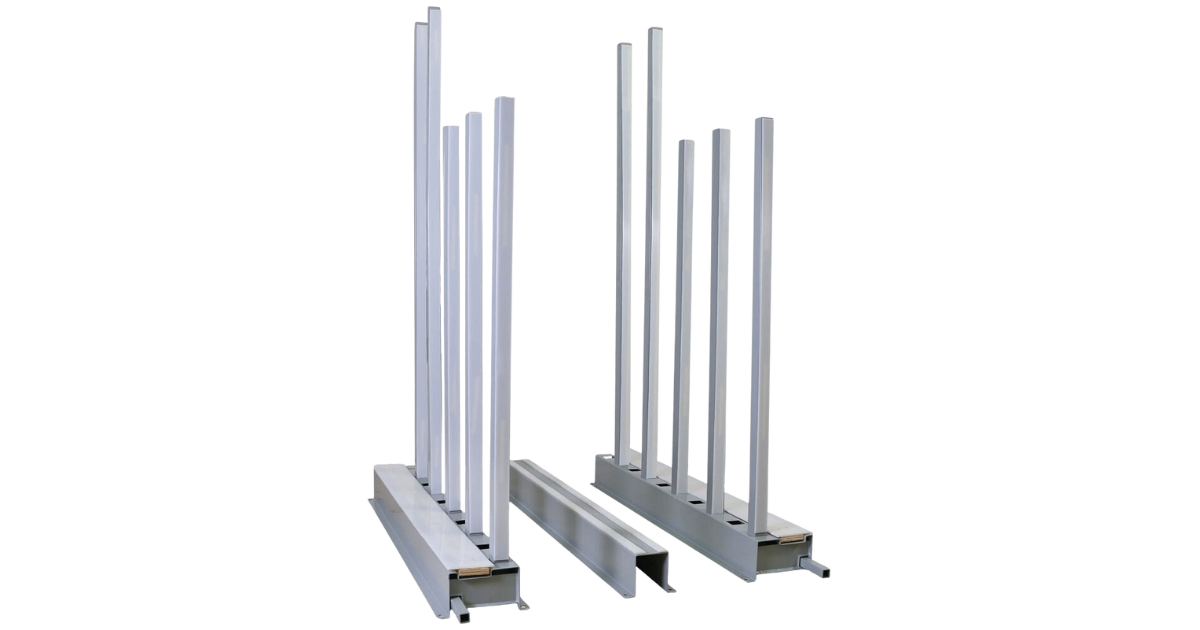

Groves Multi-Purpose Glass Storage System – 9,000 lbs.

Groves Multi-Purpose Glass Storage System – 9,000 lbs.

Regular price $794.99 USD
Regular price Sale price $794.99 USD
Sale Sold out
Shipping calculated at checkout.

SKU:4pak

Product
The Groves Multi-Purpose Storage System can be used for Wood-case packages as well as glass.  The "pak" items do not include the Easy Slide plastic.  The "pakES" items do contain the Easy Slide plastic and is the best choice for glass lites.
Dimensions: Rail Size: 11” x 5.5” x 60” | Center Rail Size: 4.5” (7.25” with flange) x 5.75”
  • Heavy-duty powder coated finish
  • Rails designed with slots to hold 2 x 4’s which protect the stored product and the finish on the rails (2 x 4s not included). Optional Easy Slide (made of low friction material) can be mounted to the 2 x 4’s for extra protection
  • Center rail with easy slide must be used to support the glass when sliding individual lites in and out of the rack
  • Outside rails built with 2" square holes spaced 4" apart. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom
  • 2" square tube posts and 2" square rubber post caps to separate glass
  • Complete with 11" connector tube for butting rails together in a straight line for desired length
  • Patent # 7143901
  • Product info PDF
Suggested wood-case packages
Part No. Length Openings Parts In Package Weight lbs.
4pak 5′ 4 2 BR-5, 6 SP-60, 4 SP-80 276
9pak 10′ 9 4 BR-5, 10 SP-60, 10 SP-80 560
19pak 20′ 19 8 BR-5, 16 SP-60, 16 SP-80, 8 SP-102 1,192
49pak 50′ 49 20 BR-5, 24 SP-60, 36 SP-80, 40 SP-102 3,184



Suggested easy-slide packages for glass packs and wood cases
Part No. Length Openings Parts In Package Weight lbs.
4pakES 5′ 4 2 BR-5ES, 1 CR-5ES, 6 SP-60ES, 4 SP-80ES 326
9pakES 10′ 9 4 BR-5ES, 2 CR-5ES, 10 SP-60ES, 10 SP-80ES 660
19pakES 20′ 19 8 BR-5ES, 4 CR-5ES, 16 SP-60ES, 16 SP-80ES, 8 SP-102ES 1,400
49pakES 50′ 49 20 BR-5ES, 10 CR-5ES, 24 SP-60ES, 36 SP-80ES, 40 SP-102ES 4,125

SAFETY WARNINGS:

  • Use .5″ holes located on bottom flange for securing rails to the floor

  • Maximum weight allowed per opening is 9,000 lbs. (4,500 lbs. per post)

  • Minimum of 2-degree angle when dropping stone in between posts

  • When assembled the overall height of the posts are 5.5” less then listed (EXAMPLE: 60” post will be 54.5” above the top of the outside rail)
