NSI Seam Phantom Electric Tool Package (Electric Grinder Sold Separately)

The Seam Phantom is a tool that has revolutionized the way to create perfectly straight, chip-free seams that become nearly impossible to differentiate from the rest of the stone. Using either an electric or pneumatic power tool, a carriage rides along a straight edge called a Glide Guide at a precise perpendicular angle to the stone. The Glide Guide is positioned using specially designed gauging blocks. Once the guide is aligned, it is clamped into place and the dressing process can begin.

The first step uses an undersized cup wheel that grinds a channel below the surface of the stone. There is a precise adjustment on the tool that allows the user to remove material at exactly the depth desired. This allows for your adhesive of choice to be below the seam, eliminating the need to color match it. The second step is the dressing of the seam edge. Using at most a three step series of honing pads, the seam is dressed to remove any waves or chips in the seam. The three steps are the 60 grit, 150 grit, and 300 grit SL3 Turbo Pads. Each pad is run along the seam using the distance adjustment to remove any imperfections. The third and final step is checking the seam with a straight edge to ensure you have removed any waves or unseen chips. The seam is now ready to be installed using a recommended seam joining tool, to ensure you get a tight and level seam. Once your customers are unable to easily distinguish the seams that you can provide, your reputation and product quality will surely rise to the next level.

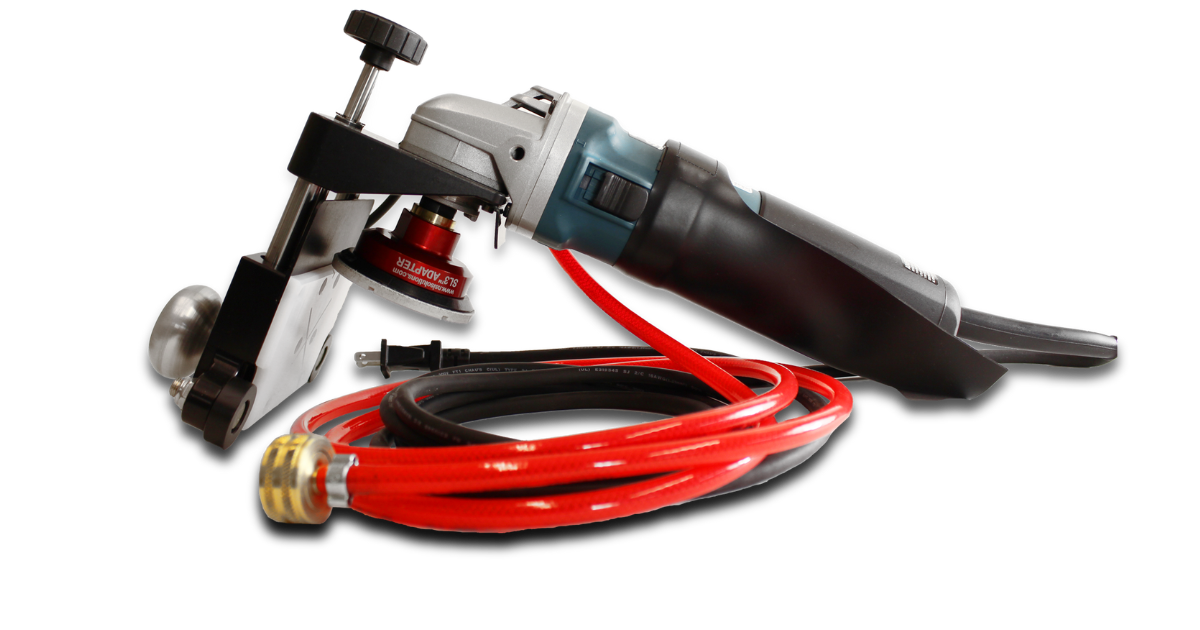

The Seam Phantom is now available in packages that  DO NOT INCLUDE the Electric Grinder / Air Polisher! Although they are pictured, the grinder and polisher are sold separately. To purchase the grinders, click on the following links:

Makita 4‑1/2″ SJS™ High‑Power Angle Grinder
Makita 5″ SJS™ High‑Power Angle Grinder

Package includes everything listed below:

• Seam Phantom®
• All necessary hardware for assembly
• Splash guard angle
• Spray skirt
• 48″ Glide Rail
• Seam Phantom tool box
• GFCI Adapter
• Phantom SL3 Adapter
• Phantom SL3 Turbo polishing disc #60
• Phantom SL3 Turbo polishing disc #150
• Phantom SL3 Turbo polishing disc #300
• Phantom SL3 2″ cup wheel
• C-Clamps for clamping Glide Guide
• Gauge blocks
• Assembly and usage instruction manual
