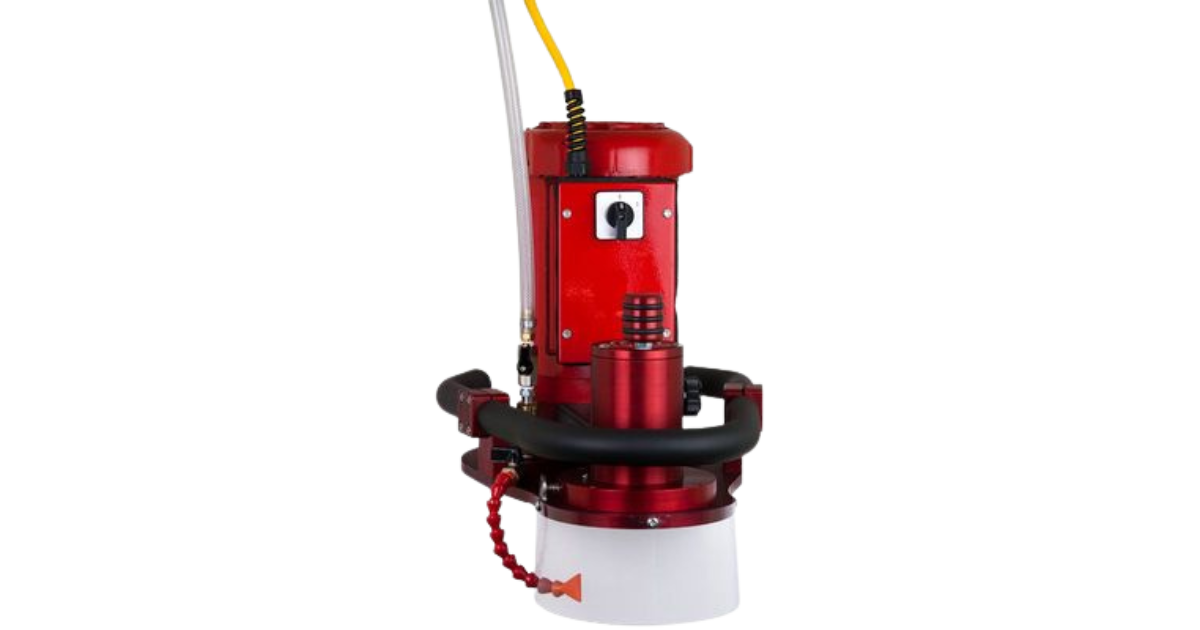

• A stone fabricator using an Omega Diamond Red Ripper Sr Stone Router which is designed to create custom edges on countertops. It has a non-slip belt drive system and a hydrofloat base.
1 3

Omega Diamond

Red Ripper Sr. Stone Router

Red Ripper Sr. Stone Router

$3,624.00 USD
$3,624.00 USD
Sale Sold out
Shipping calculated at checkout.

062-714

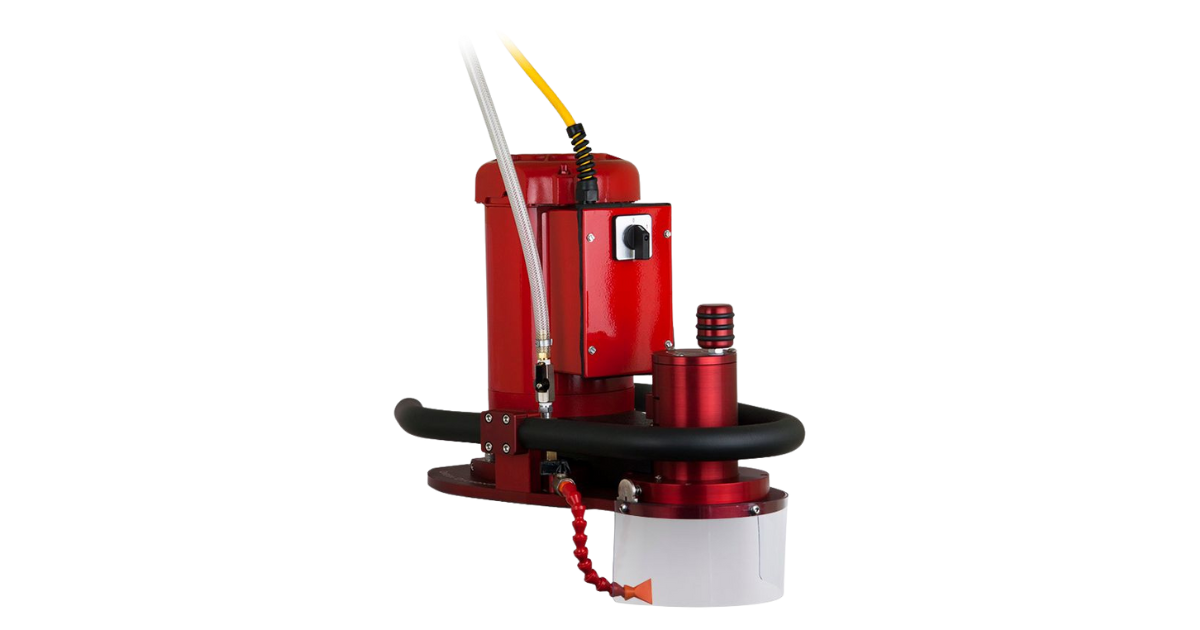

Omega Red Ripper Sr Stone Router

FREE SHIPPING!!!

Overview

With our unique NWS belt drive you can cut harder and faster with a 3hp motor than with a 5hp basic flat belt motor. This results in less cost to you now and in the future!

We believe in giving the customer the best tools available. When we looked at the other routers available for the stone market we were surprised. Nowhere could we find a router with a spindle that is guaranteed to never slip and rob power from the bit. Very few of them floated on a protective layer of water and the ones that did, were not balanced very well. At the time we designed this router most of the routers that had hydroplaning bases were only available as an add-on. We also found that one of the biggest headaches of using other routers was having to carry around a converter box for the 3 phase motors - great... more parts to breakdown. We built the Red Ripper Sr Stone Router from the ground up to be a no-frills, high-performance, easy to use router, exclusively for the stone industry.

Specifications

  • 8100 RPM spindle for greater tool life!
  • TEFC Lincoln induction motor
  • 2hp 110v at 18.8 full-load amps or 3hp 220v at 11.8 full-load Amps
  • Unique NWS belt system
  • Rubber non-scratch hydroplaning base
  • Single-hand quick water disconnect
  • Uses standard 7/8" bore router bits with M10 Thread bolt
  • All connections mounted vertical
  • Easy-adjust locking spindle
  • 3 hp is 75 pounds in weight (variable speed is 83 pounds)
  • 2 hp is 65 pounds in weight

Included Items

  • Hose Kit
  • Inline GFCI
  • Diamond Router bits are sold separately.  They are not included.

Notes

Product may show minor usage (dust, etc.) due to factory testing when shipped.

Product may not precisely match images. We are constantly working on each of our products to find better designs, and we ship each new machine with the best we have at the time of shipping.

The 2HP Red Ripper Sr Stone Router can be rewired in the field for operation on 220-240 volts. The GFCI shipped with the 2HP router is only rated for 110-120 volts, so we highly recommend installing and using a properly rated GFCI breaker instead of the built-in inline breaker if you intend to do such a modification.

NOTE: The Red Ripper Sr Stone Router is NOT designed for polishing operations: the weight prevents producing a smooth and consistent polish. If you need to polish with a router, we recommend using the much lighter Red Ripper Ultralight Stone Router. Otherwise, simply use a right-angle grinder with polishing pads.
