Omni Cubed
Omni Cubed Ergo Grip Large Format Tile Tool
Omni Cubed Ergo Grip Large Format Tile Tool
Part #
SKU:EGTA-24
Couldn't load pickup availability

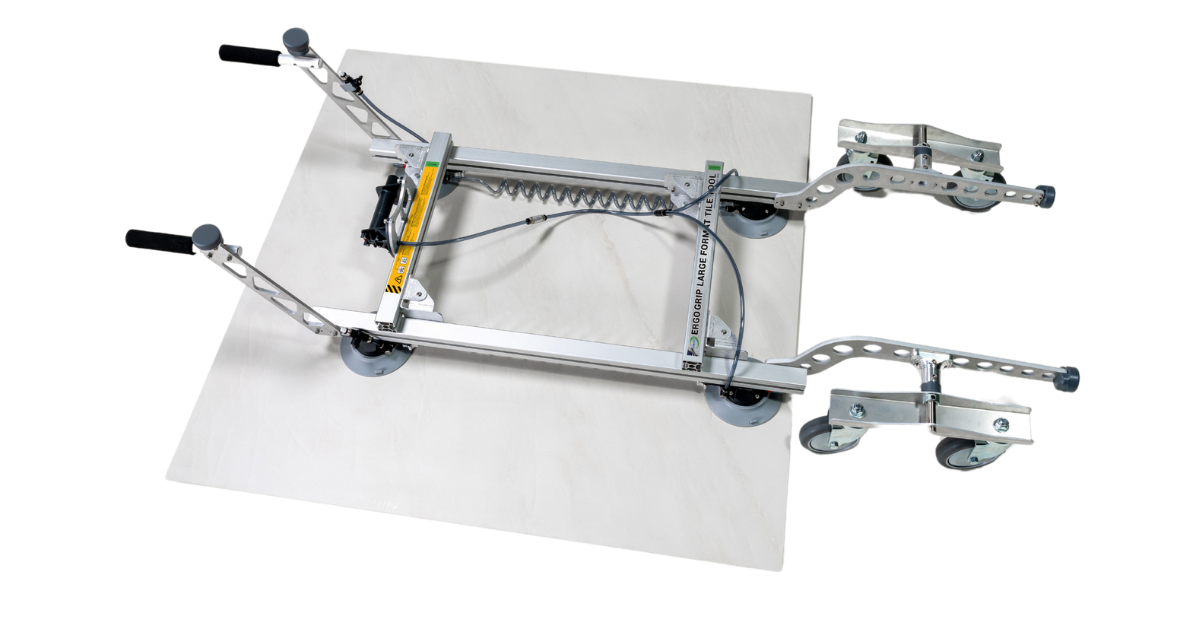

The Ergo Grip Large Format Tile Tool is the ultimate solution for safely handling and installing large format floor tiles up to 60” x 62”. Designed with a rigid yet lightweight aluminum frame, this tool prevents flexing and breakage during transport and installation while maintaining extreme strength and durability. Its ergonomic design includes two Ergo Grip Handstands for comfortable lifting and two swivel Ergo Grip Wheels for effortless navigation, making it easy to maneuver even in tight spaces.

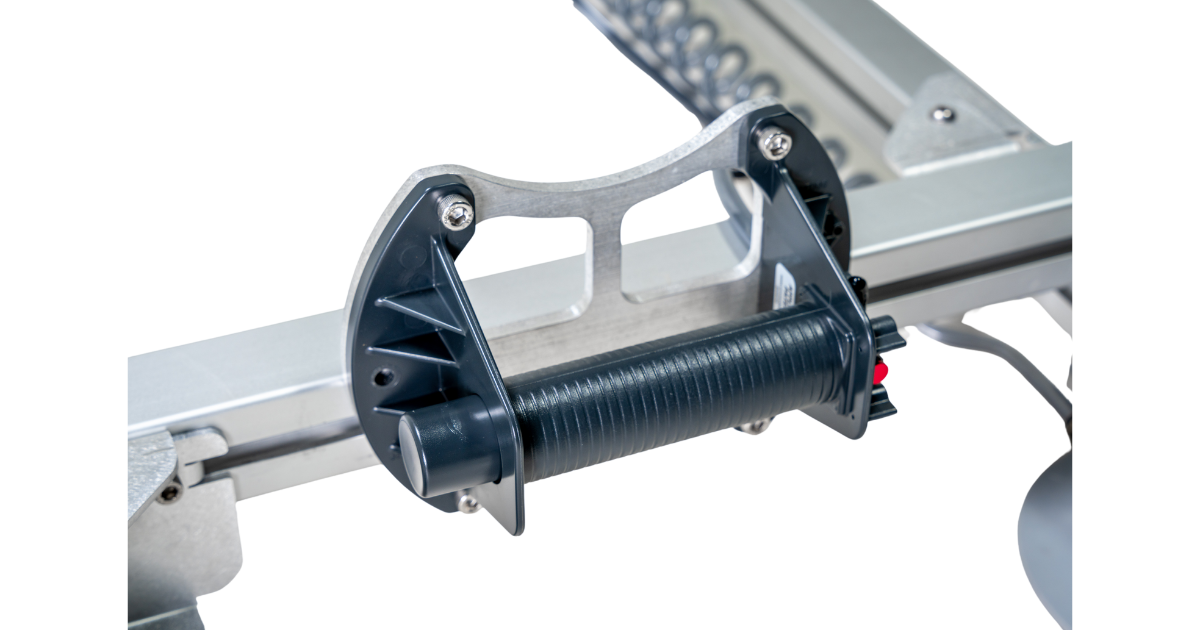

Using four secure suction cups and a manual or automatic pump, the Ergo Grip Large Format Tile Tool ensures a strong, reliable hold on the tile. Once attached, a single installer can lift, transport, and install large tiles without additional labor or strain. For added convenience, the tool can be rested securely in a vertical position using the integrated plastic foot, allowing for easy mortar application. With the Ergo Grip™ Large Format Tile Tool, installers can eliminate the need for multiple workers, reduce strain, and increase efficiency while achieving flawless results.
Features
- Rigid Frame Design: Lightweight aluminum frame minimizes flexing and prevents tile breakage during handling.

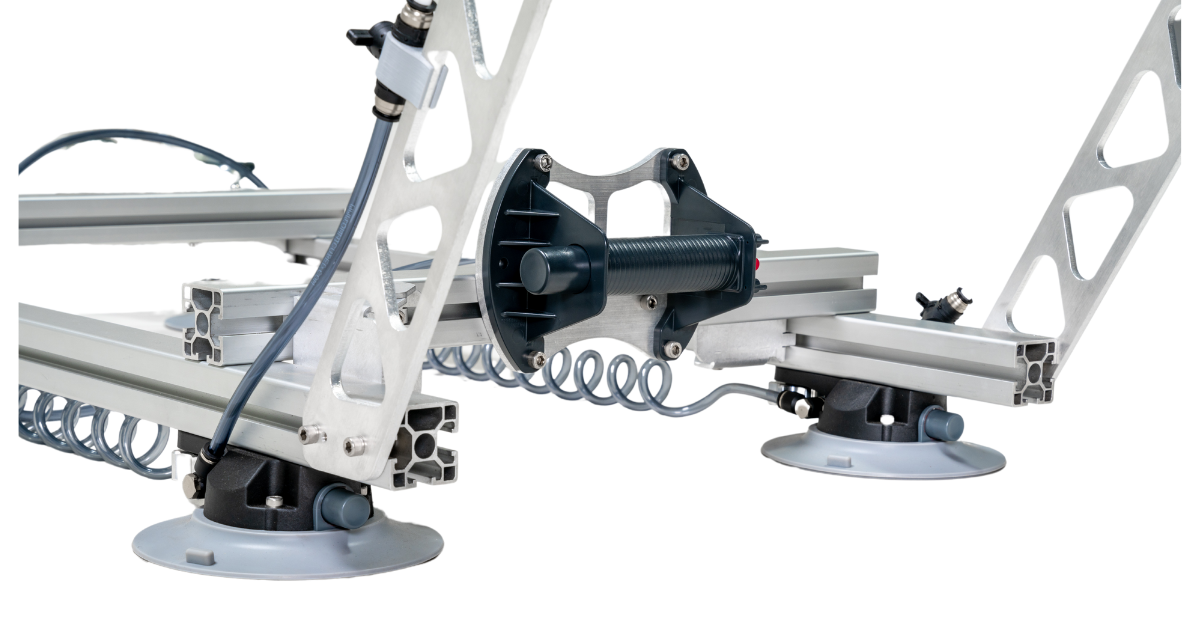

- Non-marking 6" cups: feature a concave design for quick attachment, even to bowed surfaces

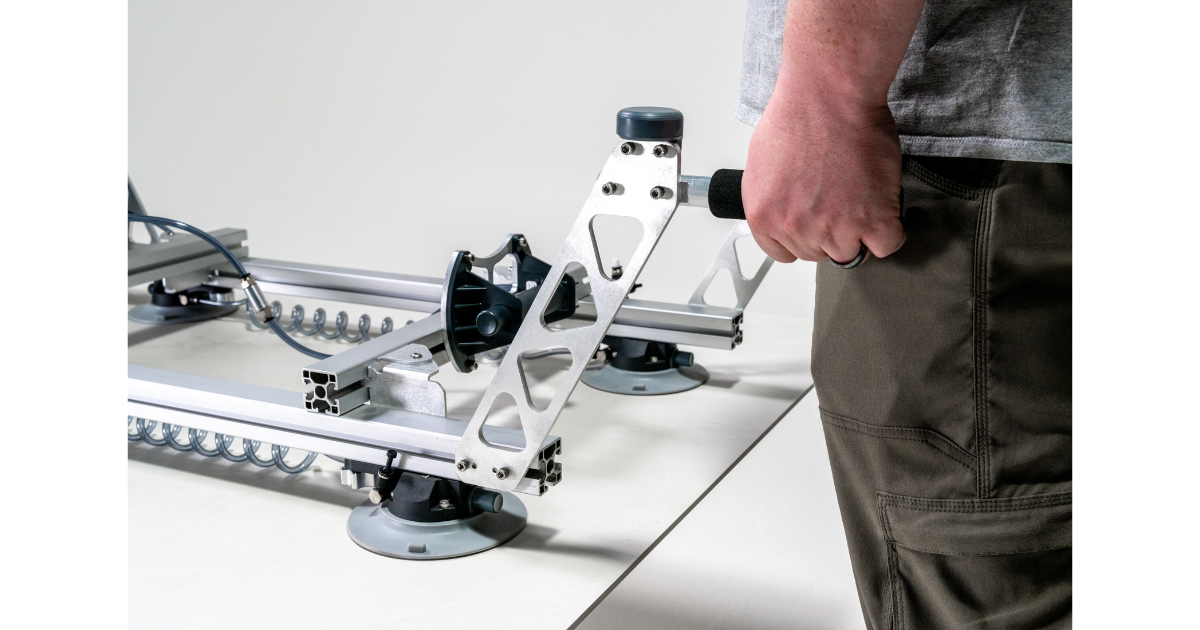

- Ergo Grip Handstands: Ergonomically designed handles provide comfortable and strain-free lifting.

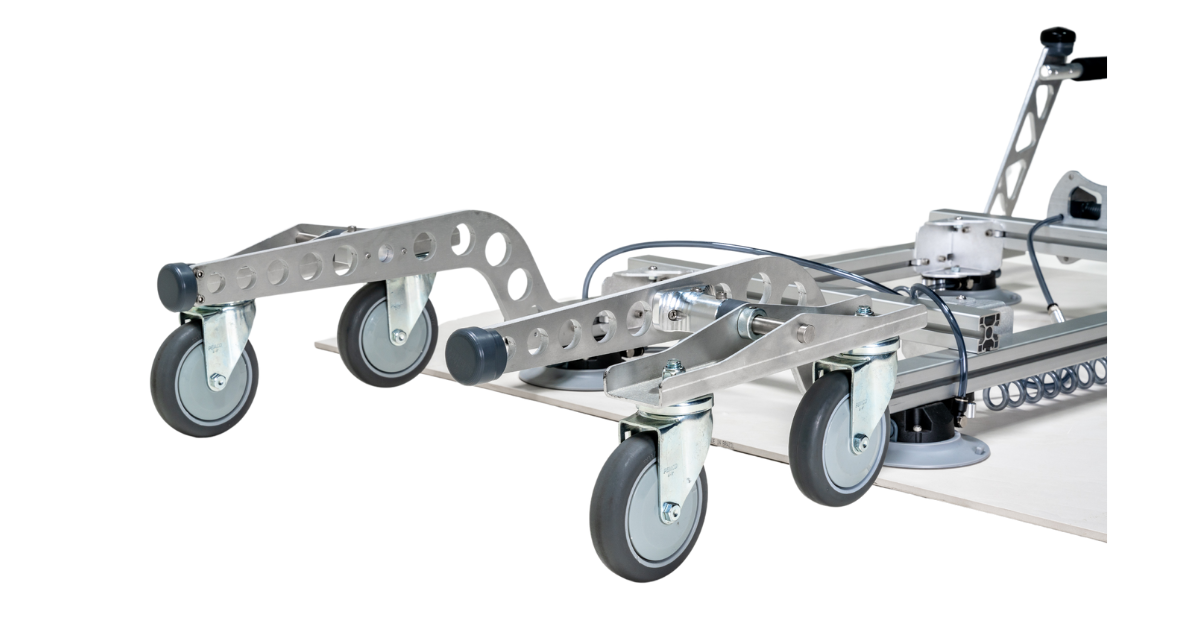

- Swivel Ergo Grip Wheels: Smooth-rolling caster wheels ensure easy navigation, even in tight spaces.
- One-Person Operation: Streamlines installation by enabling one installer to lift, transport, and place tiles.

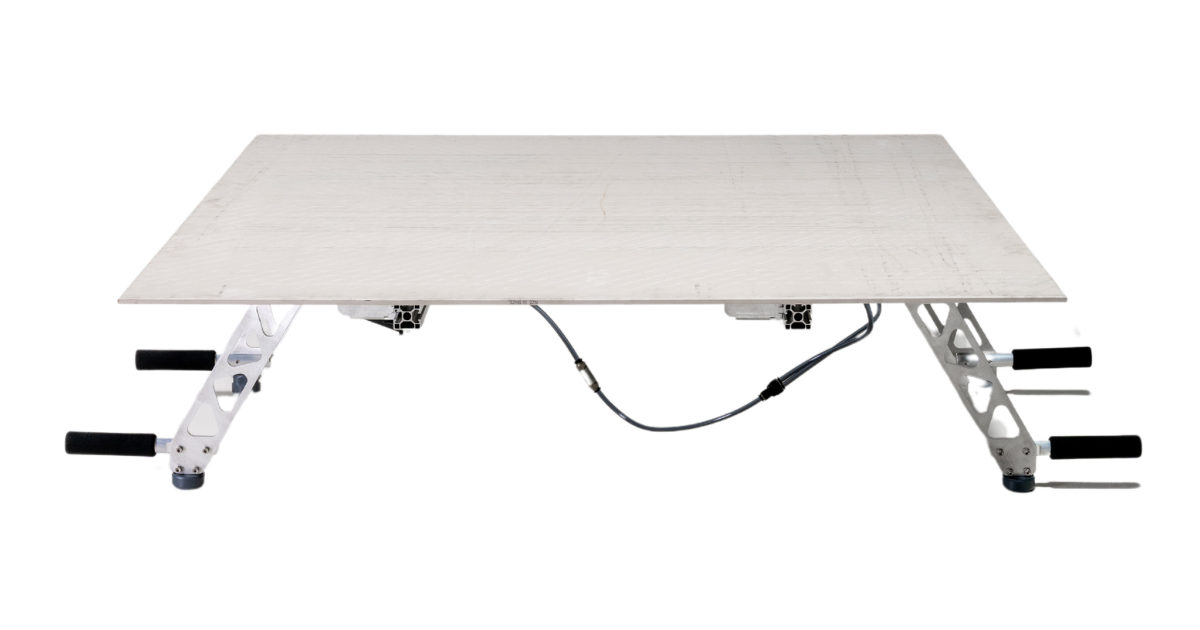

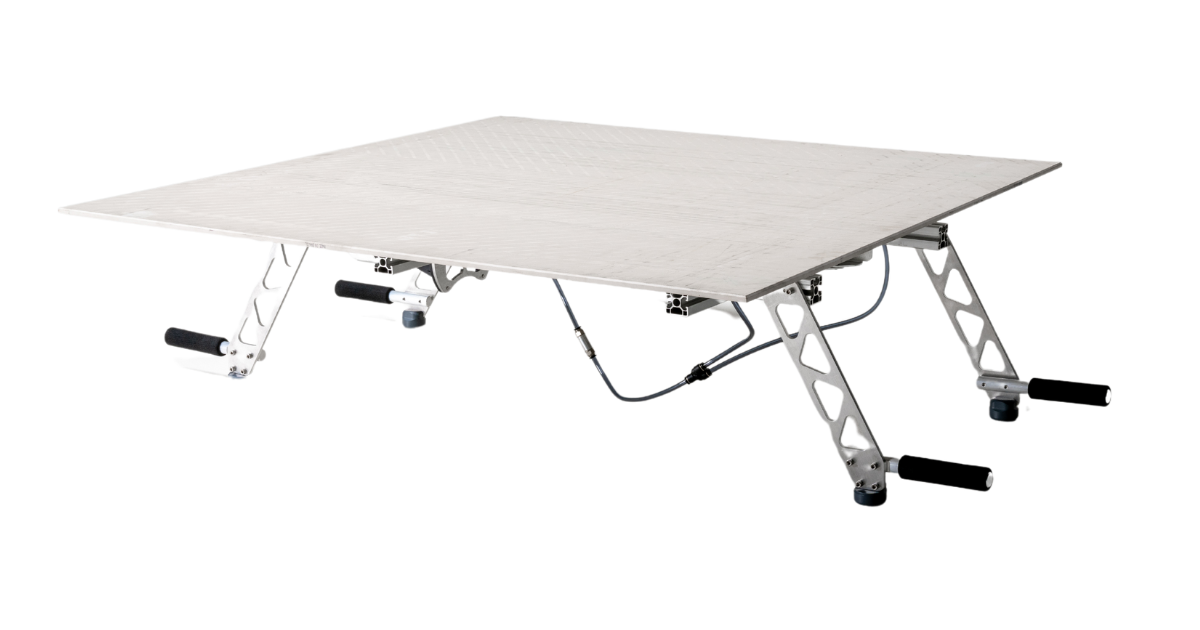

- Vertical Resting Position: Integrated plastic foot allows tiles to rest securely for mortar application.
Specifications
SKU |
Auto: EGTA-24 / Manual: EGTM-24 |
Includes |
1 frame, 1 handstand kit, 1 wheel kit (The Auto also features a VMP 750) |
Product Dimensions |
70” x 30” x 14” |
Product Weight | 32 lb |
Package Dimensions |
48” x 24” x 12” |
Shipping Weight |
34 lb |
Load Capacity |
280 lb |
Materials |
Aluminum, PVC, stainless steel, polyurethane air tubes, EPDM closed-cell foam rubber grips |
