Omni Cubed

Omni Cubed Miter-It™ v3

Omni Cubed Miter-It™ v3

Regular price $225.00 USD
Regular price $250.00 USD Sale price $225.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:MTR-153-V3

MITERS MADE EASY

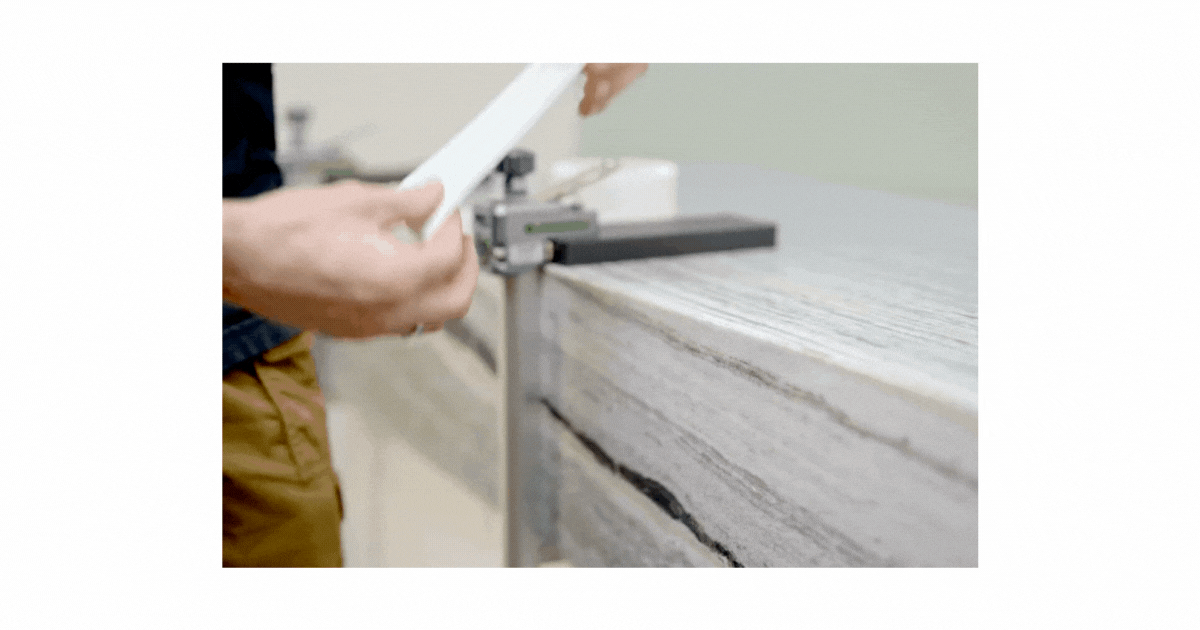

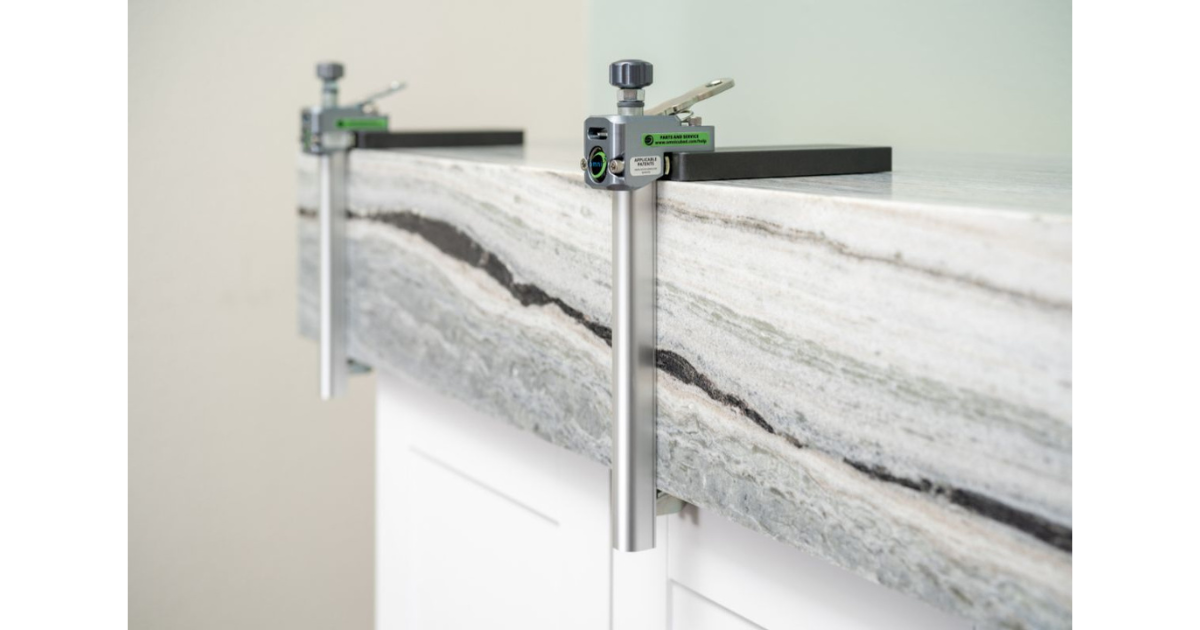

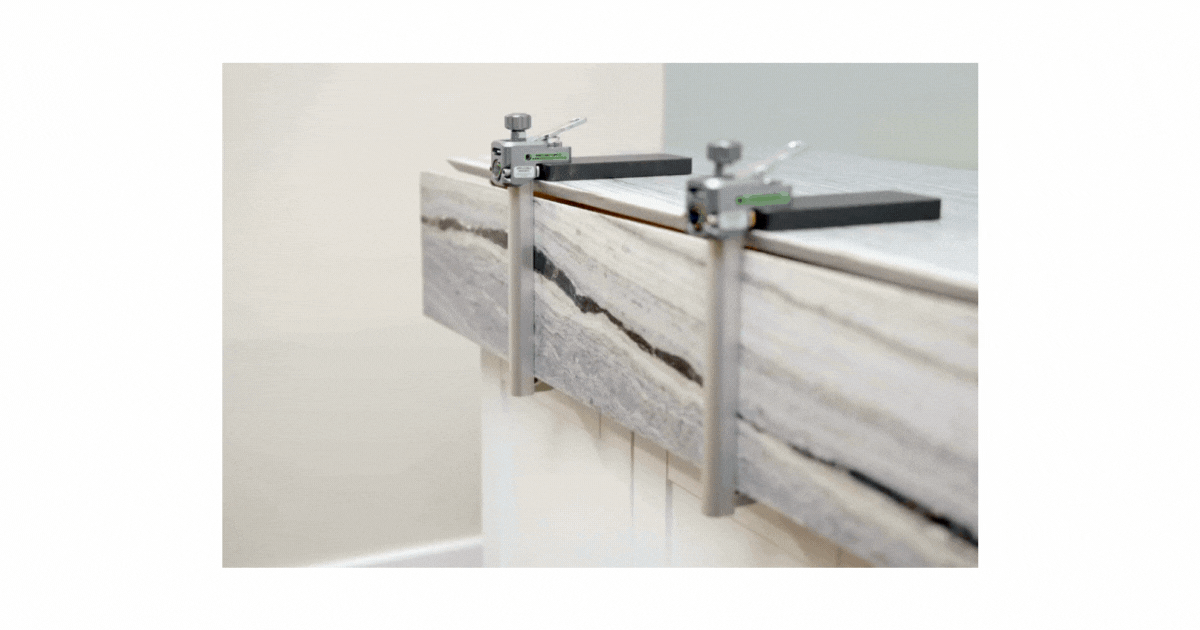

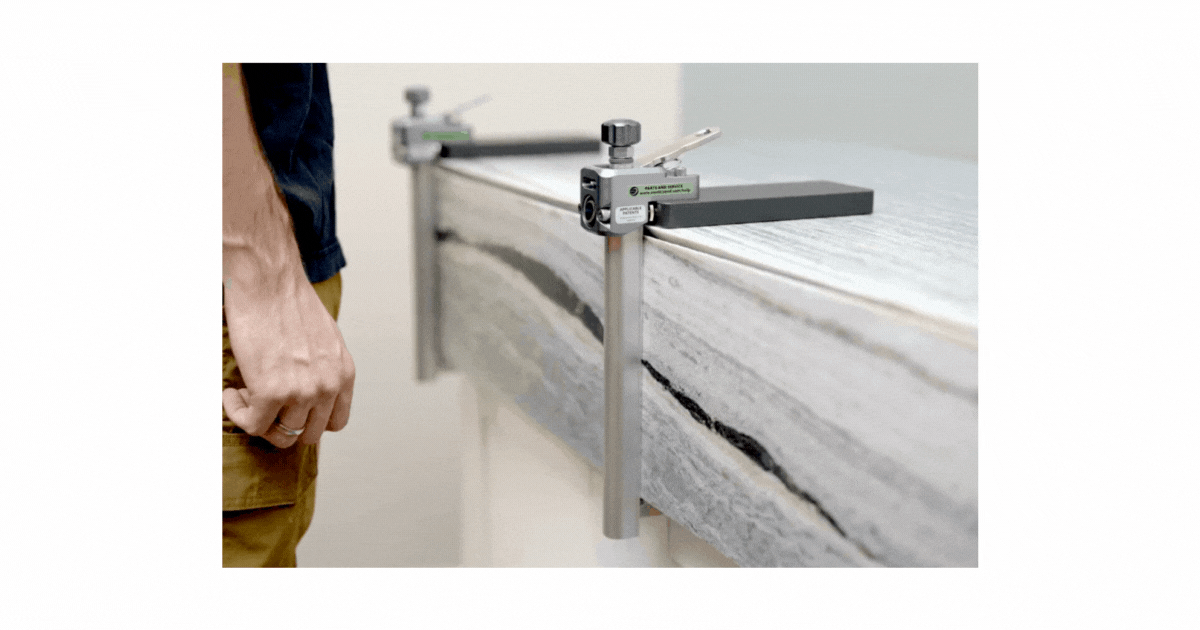

Wherever you would need a hand to hold the material, put a Miter-It™ there instead! The Miter-It™ is an easy-to-use jig that allows finished-side-up miter laminations. Not flipping the material offers numerous benefits including increased safety for workers, reduced risk of damage to the material, and keeping the seam in view during lamination. The Miter-It™ securely holds drop-down edges at 90°, eliminating the need for a helper to position the material. The jig's weight and non-marking, non-skid contact surface hold the product and miter piece in place—no suction cups needed. This simple, yet innovative tool greatly reduces the numerous awkward adjustments required with other miter clamps, and offers better results than taping methods alone. Sold as a single unit with a free 25 yard sample roll of Kung Fu Tape™.

The upgraded Miter-It™ v3 is now 4” longer and can accommodate mitered edges from 1”-9” tall, depending on material thickness. By accommodating even heavier materials than before, the Miter-It™ v3 is your go-to tool for any mitered edge installation.

HIGHLIGHTS

  • Miter finished side up; keep the seam in view
  • No flipping for gluing; protect your back and the material
  • Squares the miter with fast, easy adjustments, eliminating the need for a helper

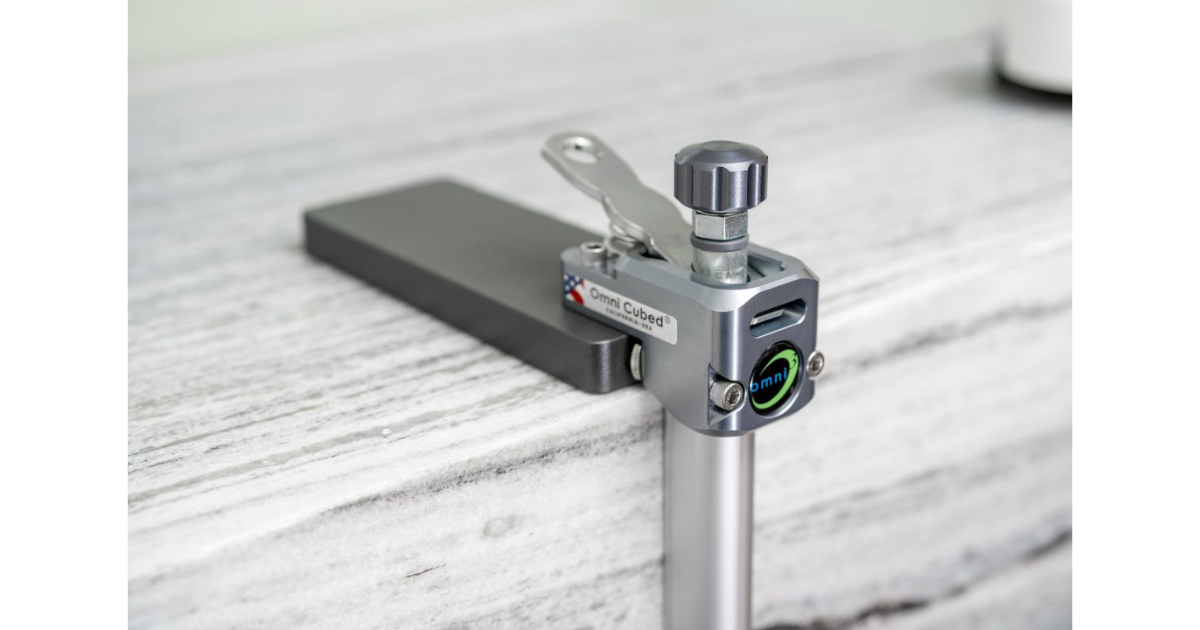

  • Coarse and fine adjustments for exact seams
  • More efficient than taping methods alone
  • Jig's weight and non-skid contact points hold it in place
  • Accommodates mitered edges from 1” - 9” tall, depending on material thickness

California Proposition 65. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Name

Miter-It™ v3

Product Guide

Miter-It™ v3 Product Guide (pdf)

Patent

Applicable Patents

Part #

MTR-153-V3 (1 unit)

Includes

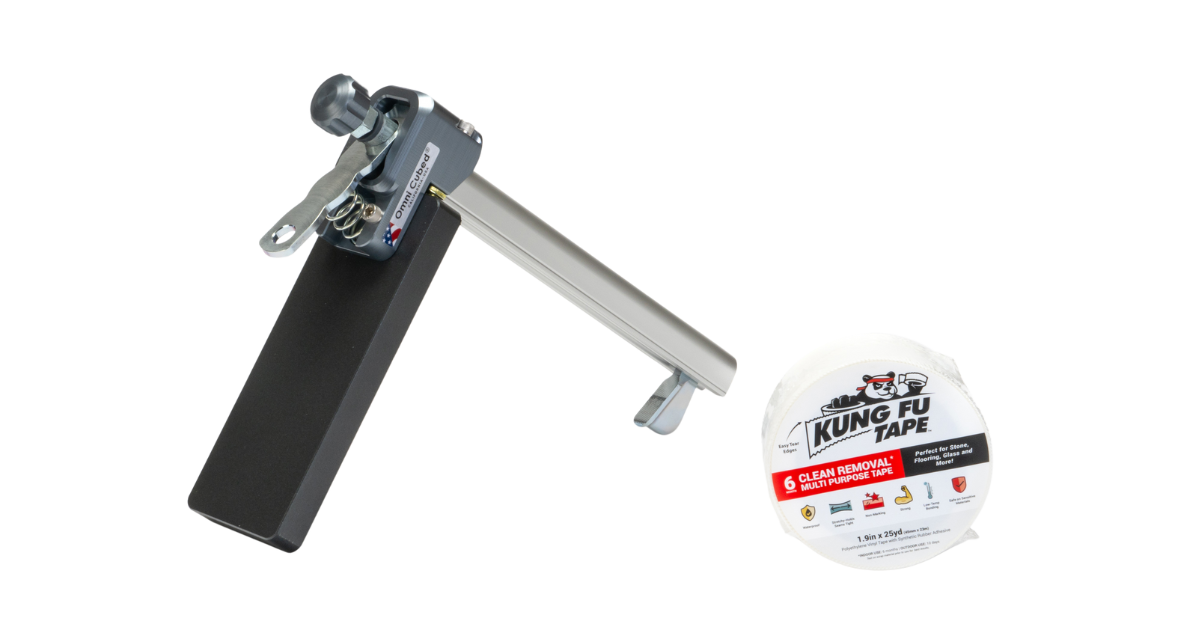

One Miter-It™ v3 unit and one free 25 yd. sample roll of Kung Fu Tape™

Product Dimensions

10” x 13.5” x 3”

Product Weight

8.5 lb per unit

Package Dimensions

14” x 10” x 5”

Shipping Weight

9 lb

Clamping Range

25 mm to 229 mm (1 in. to 9 in.) depending on material thickness

Materials

Steel, zinc plated steel, galvanized steel, powder coated steel, pvc, anodized aluminum

View full details
