Omni Cubed

Omni Cubed Rigid Cross-Brace Kits

Omni Cubed Rigid Cross-Brace Kits

Regular price $725.00 USD
Regular price Sale price $725.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:RCB-S4-19

Size

MATERIAL REINFORCEMENT REIMAGINED

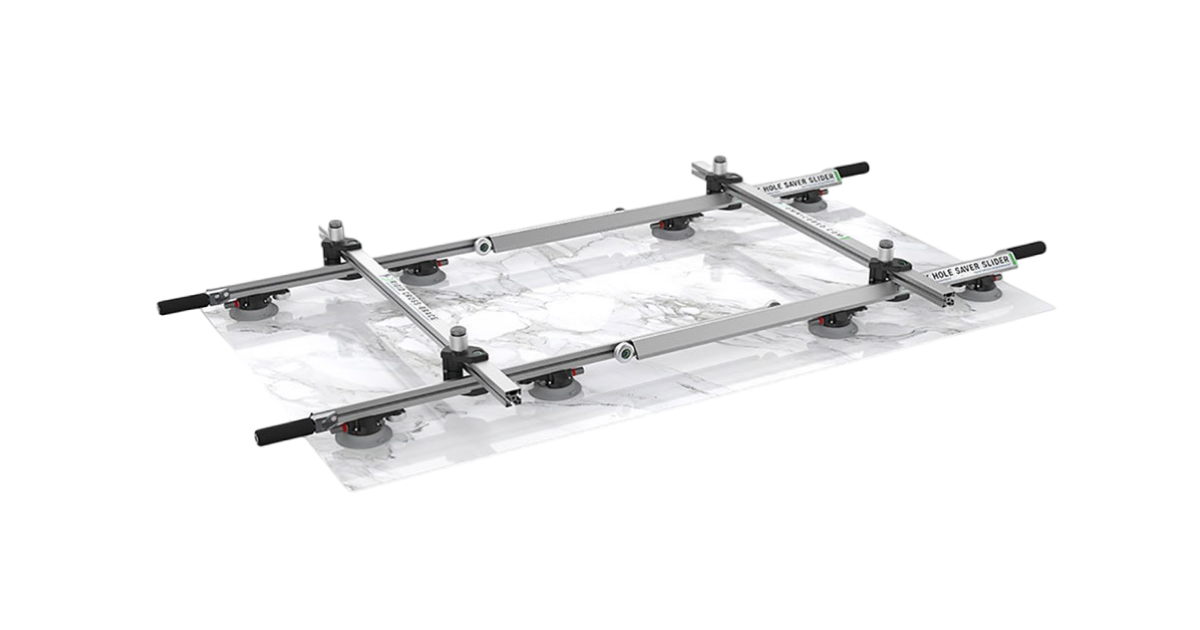

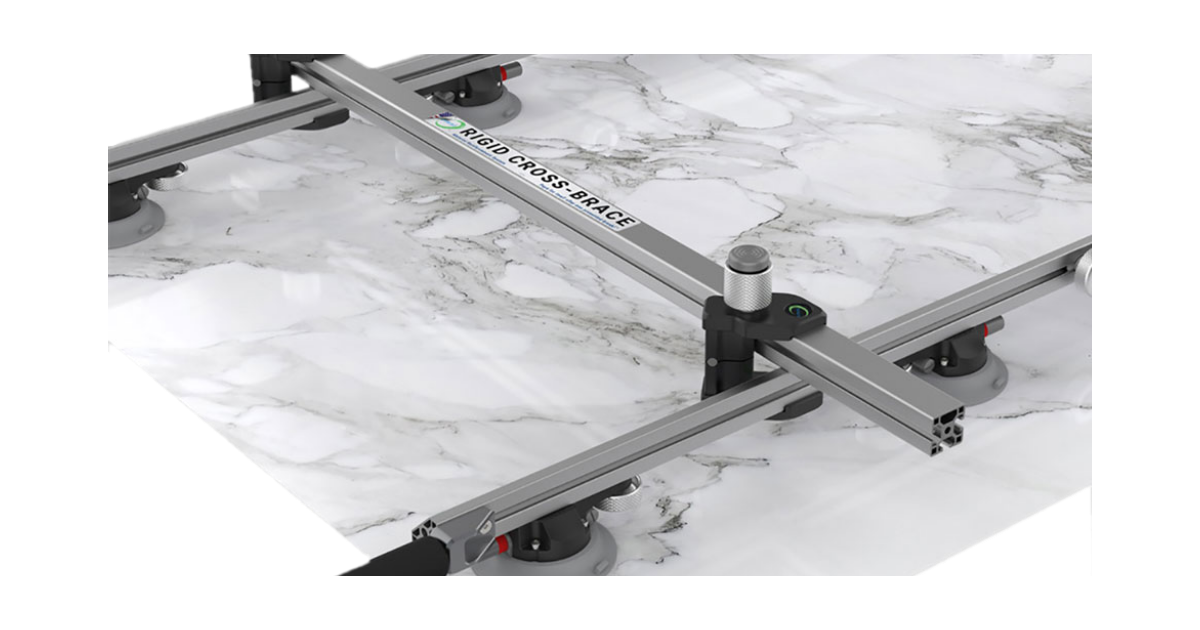

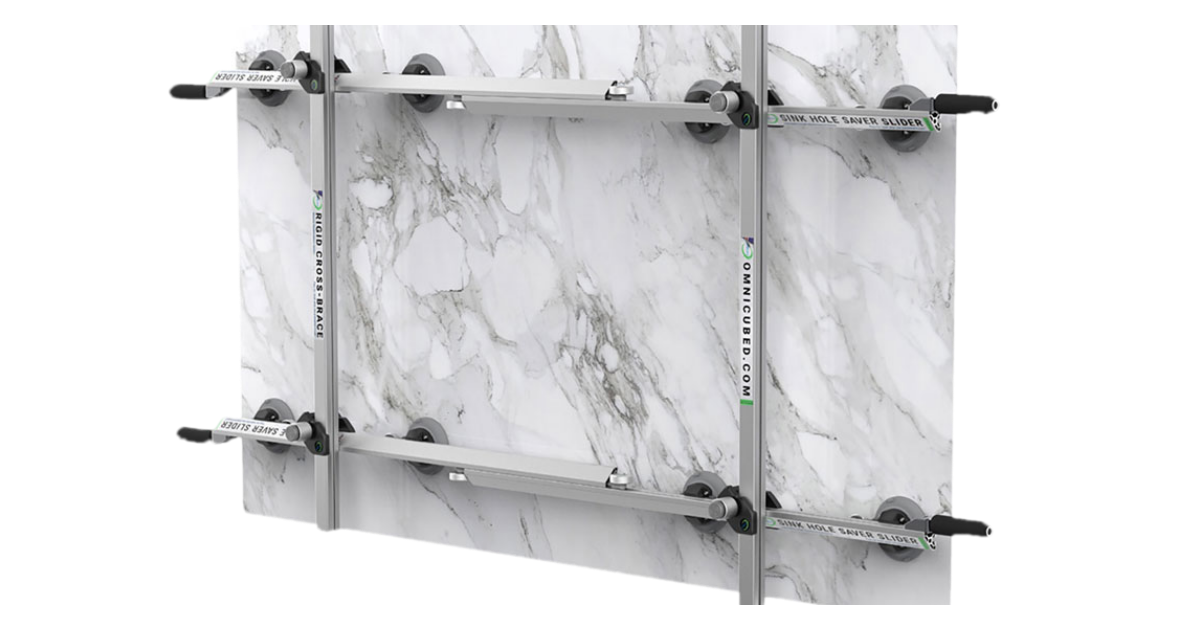

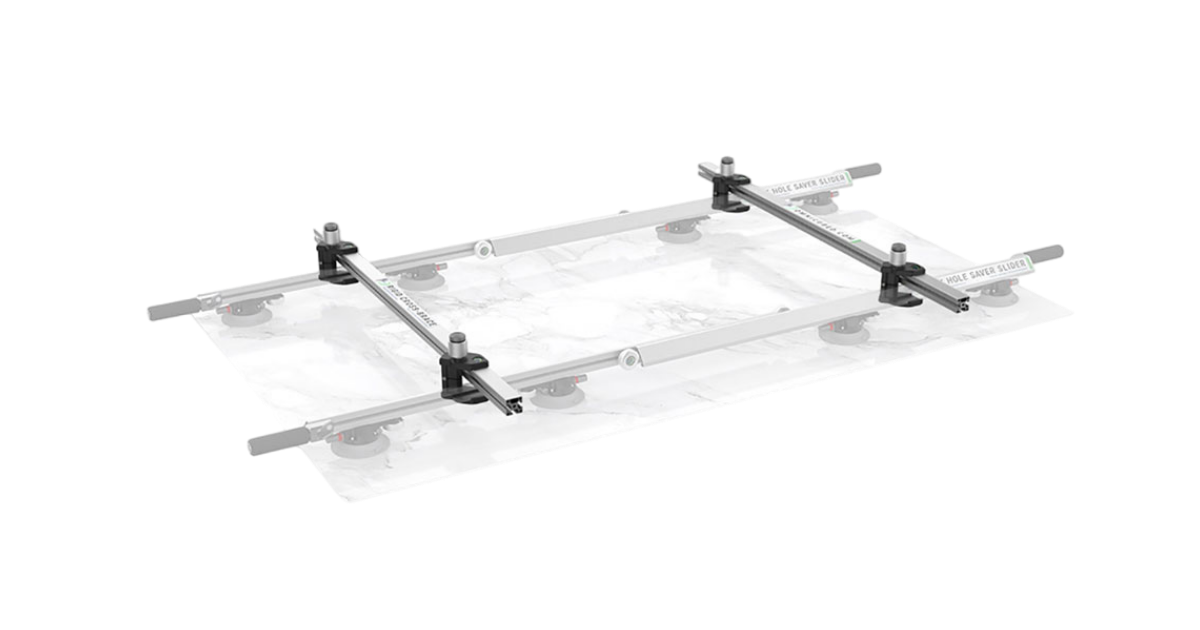

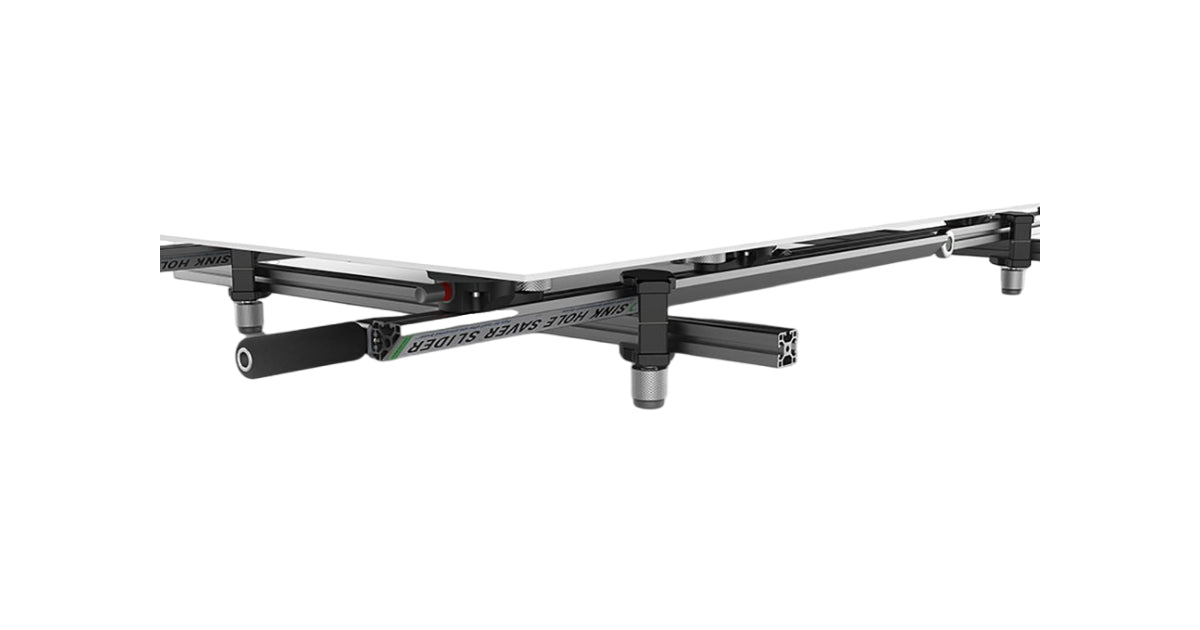

Rigid Cross-Brace Kits attach vacuum cup reinforcement rails perpendicular to each other at various locations, allowing customized configurations to reinforce large, fragile, or uniquely shaped pieces. These accessories are ideal for any situation where you need to minimize twisting and flexing of the material, as they create rigid joints which are sturdier than using unconnected rails. Each clamp’s adjustment knob has an integrated “resting foot” that won’t scratch finished surfaces or flooring when material is flipped upside-down.

HIGHLIGHTS

  • Pays for itself with one prevented break
  • Two kits available to suit various needs
  • Ideal for LFTM (large format thin material), gauged porcelain slabs such as Laminam, and sintered stone such as Neolith or Dekton
  • Minimizes twisting and flexing of material in multiple directions
  • Sturdier than using unconnected rails
  • Create custom configurations to suit a variety of applications
  • Integrated “resting feet" won’t scratch surfaces when material is flipped upside-down
  • The 3' Rigid Cross-Brace Kit includes two 3' cross-brace rails and four rigid clamps that attach any two Omni Cubed vacuum cup material reinforcement rails (the two Omni Cubed vacuum cup material reinforcement rails are sold separately and not included in this price)
  • The 5' Rigid Cross-Brace Kit includes two 5' cross-brace rails and six rigid clamps that attach up to three Omni Cubed® vacuum cup material reinforcement rails (the three Omni Cubed® vacuum cup material reinforcement rails are sold separately and not included in this price)
California Proposition 65. WARNING: Cancer  - www.P65Warnings.ca.gov

ACCESSORIES

  • The Vertical Lifting Handle Kit (part # VLH-19) attaches to any Omni Cubed vacuum cup material reinforcement rail. Durable foam grips provide comfortable handles for safer, easier vertical panel installations.
  • The Horizontal Lifting Handle Kit (part # HLH-19) provides a comfortable gripping point at the ends of any one reinforcement rail for more ergonomic lifting, moving, and tilting.
  • The Horizontal Handle with Leveler Leg Kit(part # HLL-19) includes two handles with adjustable leveling legs and incorporated “resting feet” to easily level pieces in an upright position for more accurate wall panel installations.
Product Name 3’ Rigid Cross-Brace Kit
Part # RCB-S4-19
Patent Applicable Patents
Includes Two 36” reinforcement rails, four cross-brace clamps with carrying case
Product Dimensions 36" x 1.5" x 1.5" (single rail)
Product Weight 18.0 lb
Package Dimensions 37" x 7" x 7"
Shipping Weight 19 lb
Rated Capacity Refer to weight capacity of Sink Hole Saver stiffening rail and vacuum cups



Product Name 5’ Rigid Cross-Brace Kit
Part # RCB-L6-19
MSRP $1,050.00 USD
Patent Applicable Patents
Includes Two 59” reinforcement rails, six cross-brace clamps with carrying case
Product Dimensions 59" x 1.5" x 1.5" (single rail)
Product Weight 21.5 lb
Package Dimensions 72" x 7" x 7"
Shipping Weight 22 lb
Rated Capacity Refer to weight capacity of Sink Hole Saver stiffening rail and vacuum cups
