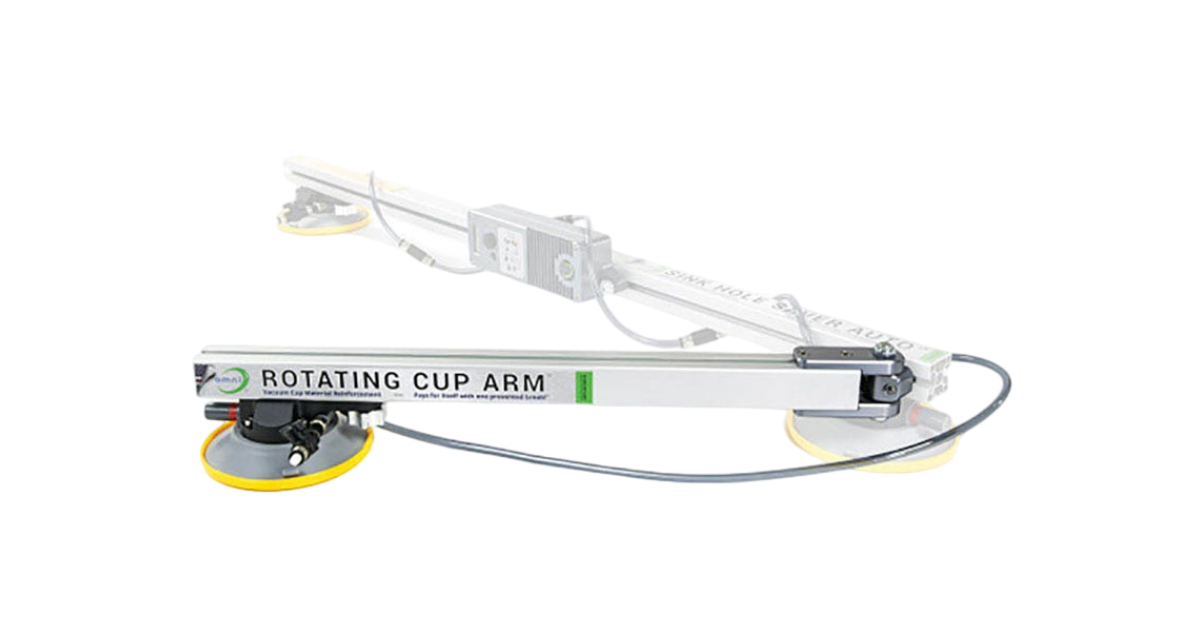

Omni Cubed Rotating Cup Arm

Omni Cubed Rotating Cup Arm

$247.50 USD
$275.00 USD $247.50 USD
Sale Sold out
Shipping calculated at checkout.

RCA-20

Vacuum Cup Material Reinforcement

The Rotating Cup Arm is an accessory that provides an additional 70 lb of lifting capacity, as well as structural reinforcement to your fragile material. This accessory is small enough to fit where a standard Sink Hole Saver™ can't, yet strong enough to ensure your piece is safe, from start to finish.

Simply attach the Rotating Cup Arm to the extrusion on any of our material reinforcement products including the entire Sink Hole Saver™ cup line, and the Slim Slab Saver™ line. With the Rotating Cup Arm that can be rotated up to 180°, you will find there is no shape or size stone that can’t be reinforced and protected!

HIGHLIGHTS

  • Pays for itself with one prevented break™
  • Can be rotated up to 180° - giving you the freedom to find the angle that works just right for your piece
  • A perfect solution for just about any size or shape piece of fragile material such as bat wings, L-shapes, and U-shapes such as tub-decks and shower panels with large cut-outs
  • 24” lightweight extruded aluminium rail
  • Non-marking 6" cup featuring a concave design for quick attachment, even to bowed surfaces
  • FTS™ (flexible triple seal) vacuum cups provide secure, reliable hold on textured or leathered materials
  • High flow vacuum release valves for fast and hassle-free removal of product
  • Vacuum cups can be easily repositioned along material or around cutouts
Product Name Rotating Cup Arm
Part # RCA-20
Patent Applicable Patents

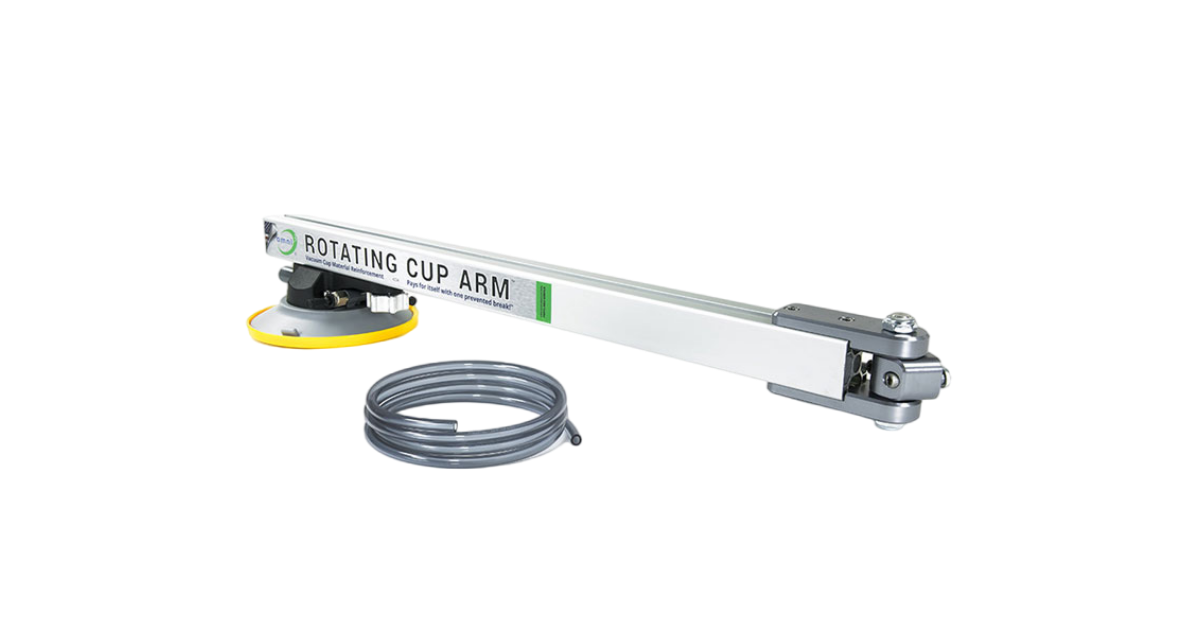

Includes RCA Swivel bracket, one six” cup and cover, 24” extrusion, & 36” of tubing.
Product Dimensions 26” x 6” x 4 ½”
Product Weight 4.1 lbs
Package Dimensions 28” x 8” x 8”
Shipping Weight 5 lbs
Load Capacity 70 lbs
Materials Anodized aluminium, aluminium, reinforced polymer, stainless steel, silicone, zinc plated steel, polyurethane air tubes
