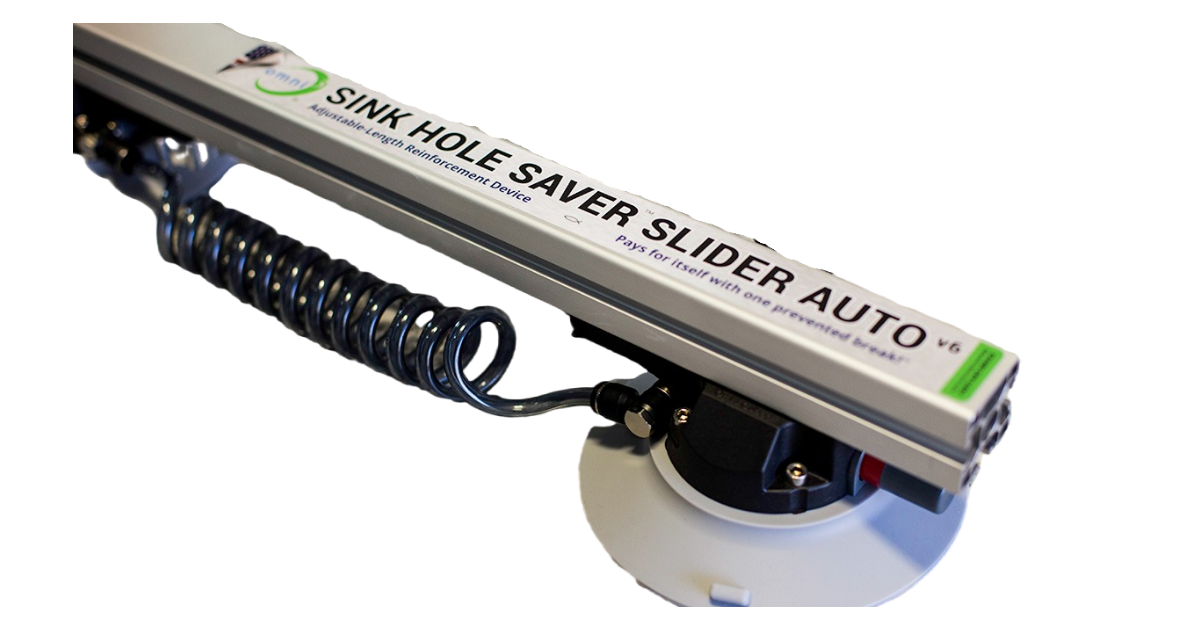

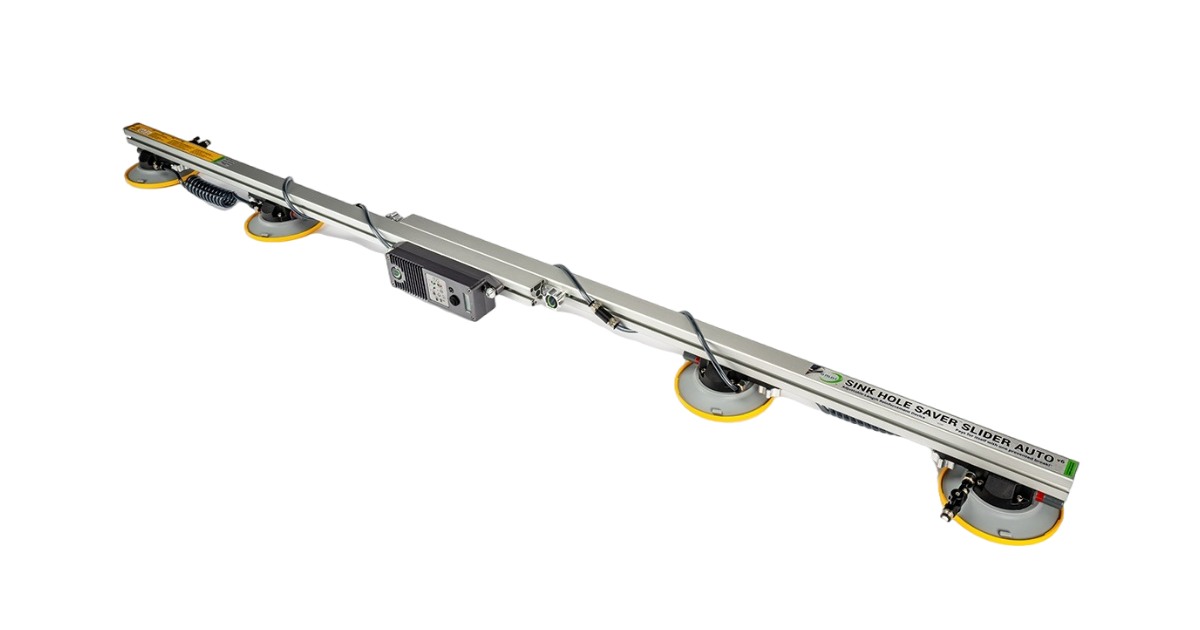

OmniCubed Sink Hole Saver™ Slider Auto v6
OmniCubed Sink Hole Saver™ Slider Auto v6
SKU:SHS-SA-20
MATERIAL REINFORCEMENT REIMAGINED
The Sink Hole Saver™ Auto is a surface-mounted, vacuum-pump powered reinforcement system that strengthens fragile materials during lifting, transportation, and installation. The Sink Hole Saver™ Auto is the perfect solution for thin materials, curved countertops, vertical panels, and high-low drops. This product features proprietary, non-marking, concaved vacuum cups with triple sealing rings for a strong, reliable hold—even on textured and leathered surfaces. This product features high flow vacuum release valves for fast and hassle-free removal of product. The pump runs on a powerful yet compact VMP750 Rail-Mounted Rechargeable Pump on each adjustable rail, allowing installers to focus on the task at hand without having to manually maintain vacuum pressure. The Auto system is faster, safer, and more convenient than manual pressure maintenance.
HIGHLIGHTS
- Pays for itself with one prevented break™
- Non-marking 6" cups feature a concave design for quick attachment, even to bowed surfaces
- FTS™ (flexible triple seal) vacuum cups provide secure, reliable hold on textured or leathered materials
- Rechargeable Power Pack runs for up to 5 hours on a single charge
- High flow vacuum release valves for fast and hassle-free removal of product
- Vacuum cups can be easily repositioned along material or around cutouts
- Quickly extend or collapse to completely support fragile materials
ACCESSORIES
- The Sink Hole Saver™ Rigid Cross-Brace Kit (part # RCB-S4-19) attaches perpendicular to any two Omni Cubed® vacuum cup Sink Hole Savers to minimize flexing and twisting of large and fragile materials.
- The Sink Hole Saver™ Angle Bracket (part # AB-SHS) connects two Sink Hole Savers to create a rigid joint at any angle up to 270° for safe transportation of uniquely shaped countertops.
- The Sink Hole Saver™ Extension Bracket Kit (part # ESB-19) combines two Sink Hole Saver™ Manuals or Autos into one adjustable-length rail for greater versatility and convenience.
- The Sink Hole Saver™ Vertical Lifting Handle Kit (part # VLH-19) attaches to vacuum cup Sink Hole Savers to make vertical panel installations safer, faster, and easier.
- The Sink Hole Saver™ Horizontal Lifting Handle Kit (part # HLH-19) provides a comfortable gripping point beyond both ends of any one Sink Hole Saver™ rail or Rigid Cross-Brace bar.
Product Name | Sink Hole Saver™ Slider Auto v6 |
Product Guide | Sink Hole Saver™ Slider Auto v6 Product Guide (pdf) |
Patent | Applicable Patents |
Part # | SHS-SA-20 |
MSRP | $1,225.00 USD, $1,715.00 CAD |
Includes | One rail, four 6" vacuum cups with covers, vacuum hose, Rechargeable Vacuum Pump, smart charger |
Product Dimensions | Collapsed 51" x 7.5" x 4", Extended 90" x 7.5" x 4" |
Product Weight | 15.7 lb |
Package Dimensions | 72" x 8" x 8" |
Shipping Weight | 17 lb |
Load Capacity | 70 lb (31 kg) per cup; 200 lb (90 kg) per rail |
Materials | Aluminium, reinforced polymer, silicone, stainless steel, plated steel, polyurethane air tubes, lithium-ion battery pack, miscellaneous electronics |
