Omni Cubed Sink Hole Saver™ Auto v6

Omni Cubed Sink Hole Saver™ Auto v6

Regular price $850.00 USD
Regular price Sale price $850.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:SHS-4A-20

Size

MATERIAL REINFORCEMENT REIMAGINED

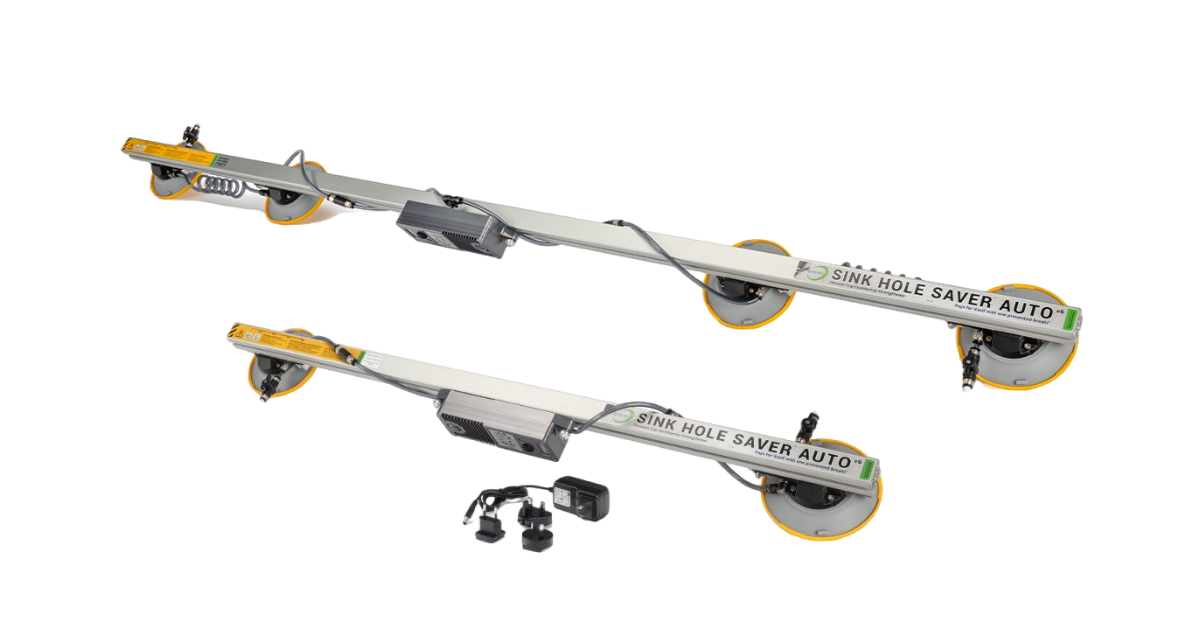

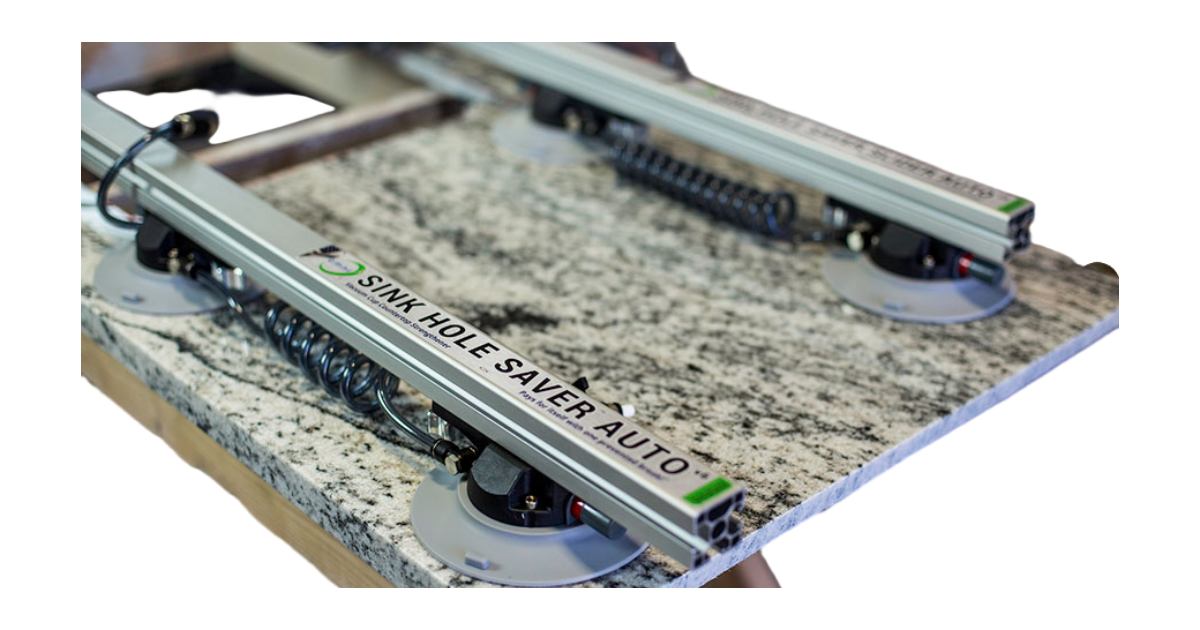

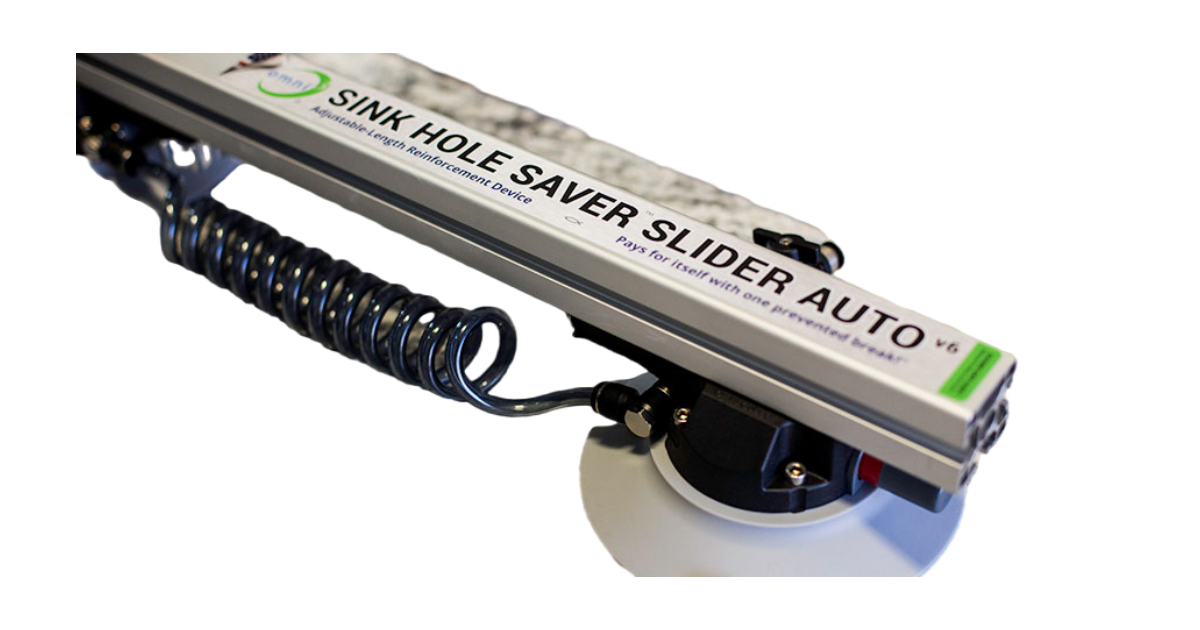

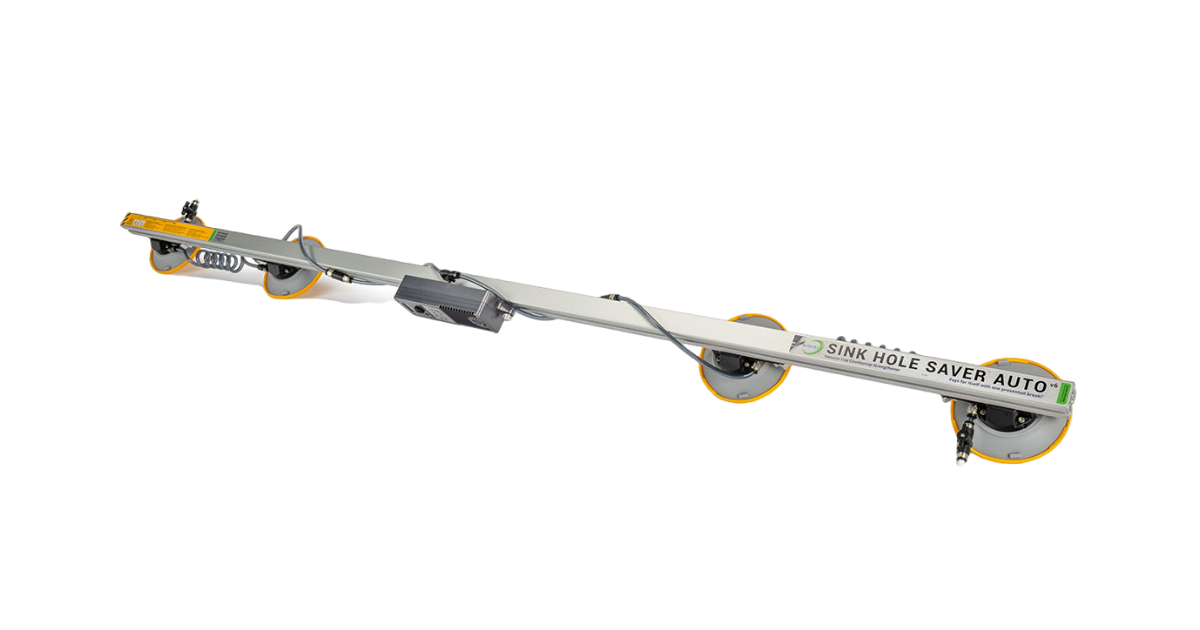

Neolith Approved ToolingThe Sink Hole Saver™ Auto is a surface-mounted, vacuum-pump powered reinforcement system that strengthens fragile materials during lifting, transportation, and installation. The Sink Hole Saver™ Auto is the perfect solution for thin materials, curved countertops, vertical panels, and high-low drops. This product features proprietary, non-marking, concaved vacuum cups with triple sealing rings for a strong, reliable hold—even on textured and leathered surfaces. This product features high flow vacuum release valves for fast and hassle-free removal of product. The pump runs on a powerful yet compact VMP750 Rail-Mounted Rechargeable Pump on each adjustable rail, allowing installers to focus on the task at hand without having to manually maintain vacuum pressure. The Auto system is faster, safer, and more convenient than manual pressure maintenance.

HIGHLIGHTS

  • Pays for itself with one prevented break™

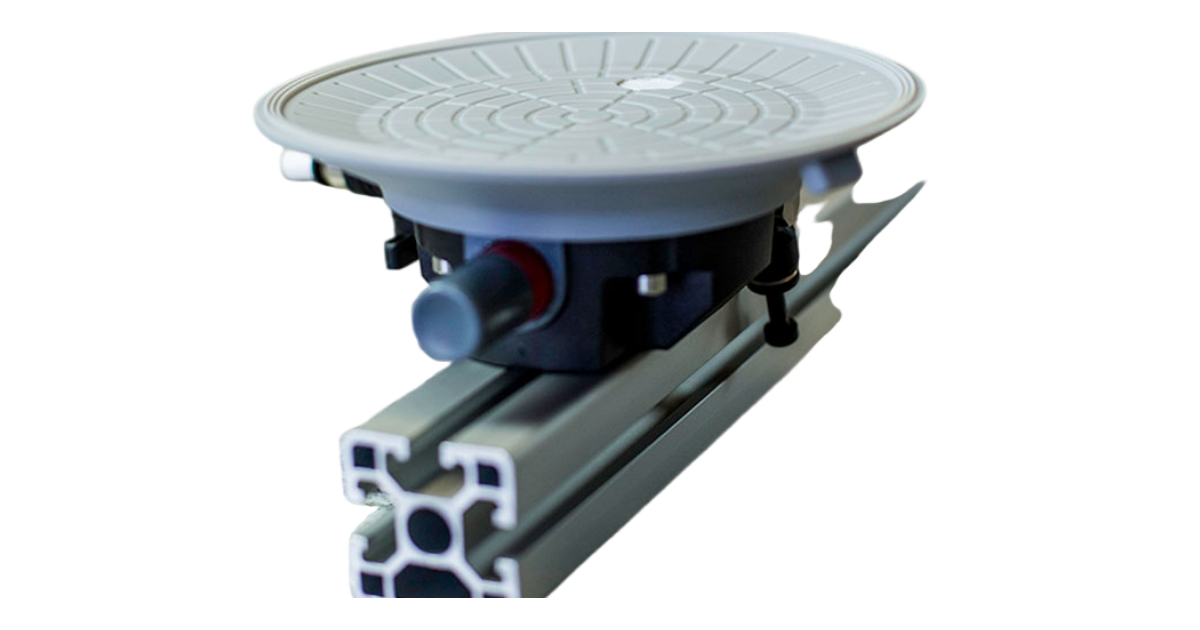

  • Non-marking 6" cups feature a concave design for quick attachment, even to bowed surfaces
  • FTS™ (flexible triple seal) vacuum cups provide secure, reliable hold on textured or leathered materials
  • VMP750 Rail-mounted rechargeable pump runs for up to 5 hours on a single charge
  • High flow vacuum release valves for fast and hassle-free removal of product
  • Vacuum cups can be easily repositioned along material or around cutouts
  • Available sizes:
    • Sink Hole Saver™ Auto: 4’ and 7’
  • Available accessories:
    • Angle Bracket, Vertical Lifting Handle Kit, Horizontal Lifting Handle Kit, Rigid Cross-Brace Kit, and Extension Bracket
California Proposition 65. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

ACCESSORIES

  • The Sink Hole Saver™ Rigid Cross-Brace Kit (part # RCB-S4-19) attaches perpendicular to any two Omni Cubed® vacuum cup Sink Hole Savers to minimize flexing and twisting of large and fragile materials.
  • The Sink Hole Saver™ Angle Bracket (part # AB-SHS) connects two Sink Hole Savers to create a rigid joint at any angle up to 270° for safe transportation of uniquely shaped countertops.
  • The Sink Hole Saver™ Extension Bracket Kit (part # ESB-19) combines two Sink Hole Saver™ Manuals or Autos into one adjustable-length rail for greater versatility and convenience.
  • The Sink Hole Saver™ Vertical Lifting Handle Kit (part # VLH-19) attaches to vacuum cup Sink Hole Savers to make vertical panel installations safer, faster, and easier.
  • The Sink Hole Saver™ Horizontal Lifting Handle Kit (part # HLH-19) provides a comfortable gripping point beyond both ends of any one Sink Hole Saver™ rail or Rigid Cross-Brace bar.
Product Guide Sink Hole Saver™ Auto v6 Product Guide (pdf)
Part # SHS-4A-20, SHS-7A-20
Patent Applicable Patents
Product Dimensions 4' Sink Hole Saver™ Auto v6: 48" x 5" x 6.5"
7' Sink Hole Saver™ Auto v6: 84" x 5" x 6.5"
Product Weight 4' Sink Hole Saver™ Auto v6: 9 lb
7' Sink Hole Saver™ Auto v6: 14.3 lb
Package Dimensions 4' Sink Hole Saver™ Auto v6: 48" x 5" x 6.5"
7' Sink Hole Saver™ Auto v6: 84" x 5" x 6.5"
Shipping Weight 4' Sink Hole Saver™ Auto v6: 10 lb
7' Sink Hole Saver™ Auto v6: 16 lb
Includes One rail, 6" vacuum cups with covers (2 vacuum cups for the 4'; 4 vacuum cups for the 7'), vacuum hose, Rechargeable Vacuum Pump, smart charger
Materials Anodized aluminum, aluminum, reinforced polymer, stainless steel, silicone, zinc plated steel, polyurethane air tubes
Rated Capacity 70 lb (31 kg) per cup; 200 lb (90 kg) per rail
