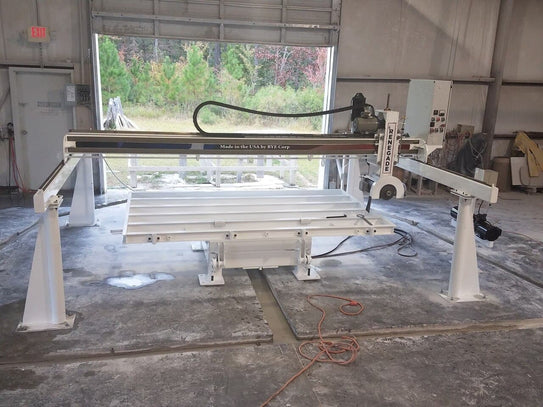

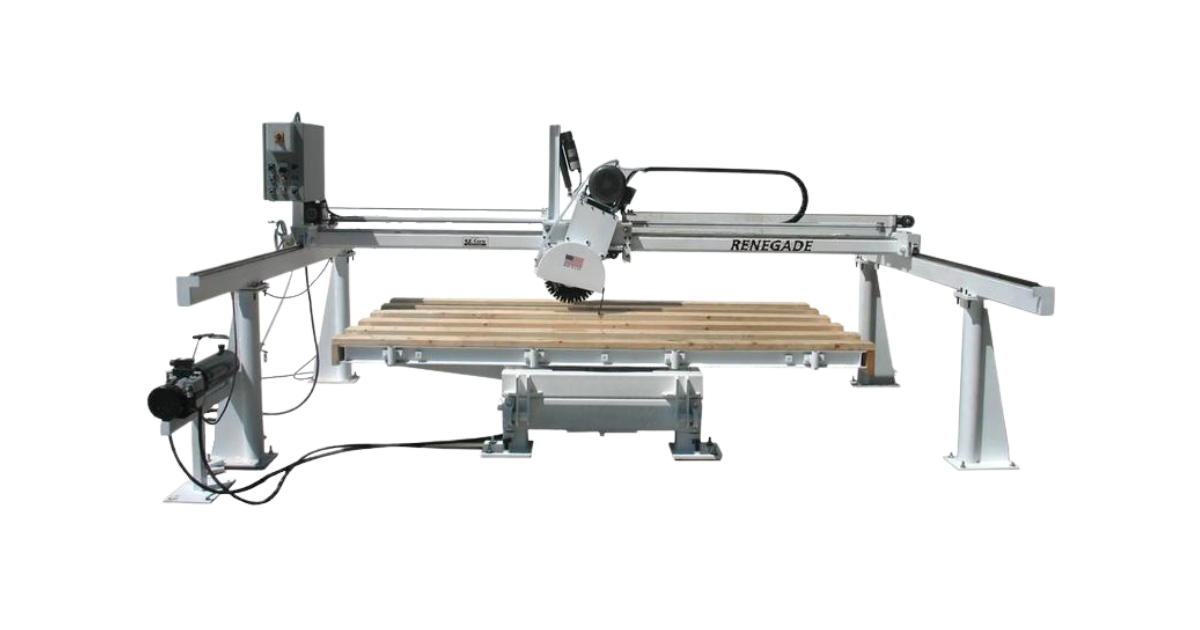

Renegade Bridge Saw

Description

The Renegade Saw is economical, straightforward, and made in the USA. Designed by fabricators and saw installers, this saw utilizes standard “off the shelf” parts that can be readily purchased for quick repair if it should ever wear out. Fabricators know that when your saw goes down, your whole shop goes down.

+ Features

• Rugged construction
• Full 11' 4" x 11' 4" cutting envelope

• Hand-operated gantry movement with lock
• 16" Blade capacity
• Heavy duty rotating table with stops at 0/45/90/135
• Inline high-intensity Laser included
• 12 month mechanical, 6 month electrical warranty includes all parts.
• Training, freight, install and travel expenses are not included.

+ Specifications

• Overall Dimensions are 14' Wide x 13' Deep x 8' Tall

• 6" vertical movement actuator driven
• 10HP, 220v, 3PH Motor
• Approximate weight 8000lbs

+ Options

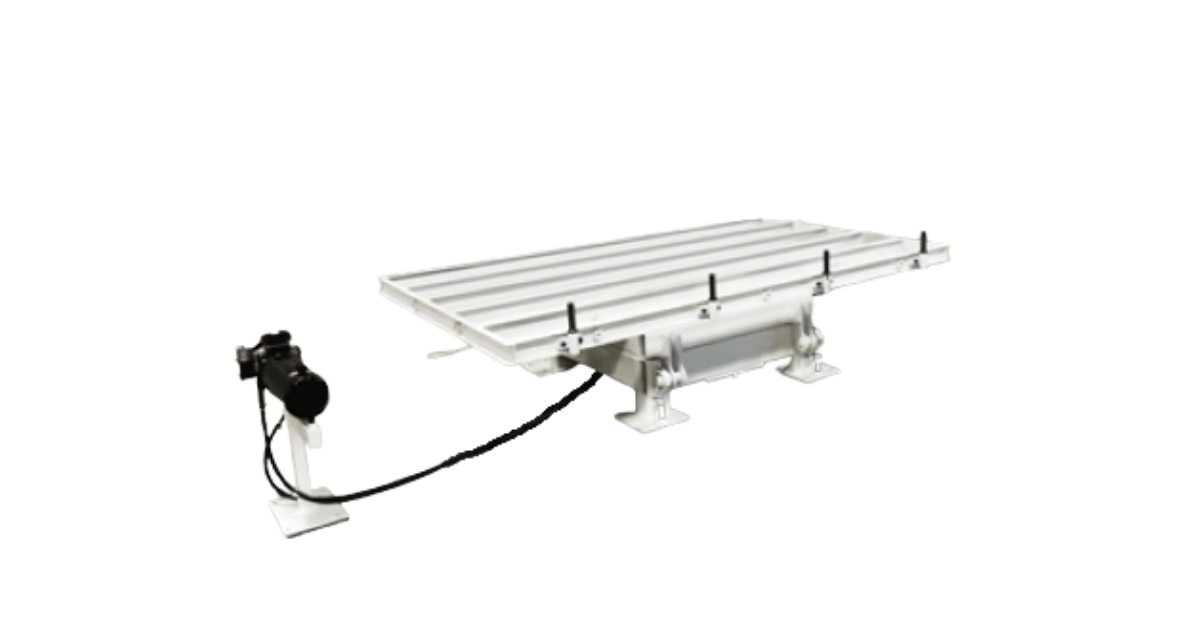

• Hydraulic tilting table option available. (OPT-3).
• Air Brake for table (OPT-2). $1,500 Add-on
• 10hp Phase Converter (PC-10). NOT AN OPTION if shop only has single-phase. $4,000 add-on

+ Customer Responsibilities

• 10,000lb forklift and crew necessary to off-load, position, and set the machine

• Level floor adequate to accept the machine. No more than a 3” slope over 20’
• All local and regional permits and inspection fees
• Fused disconnect 208-230v, 3ph, dedicated 50 amp circuit. Electrician to connect the service to the machine. Recommend 8/4 SO cord
• Clear water supplying a minimum of 5 gallons per minute with proper drainage
