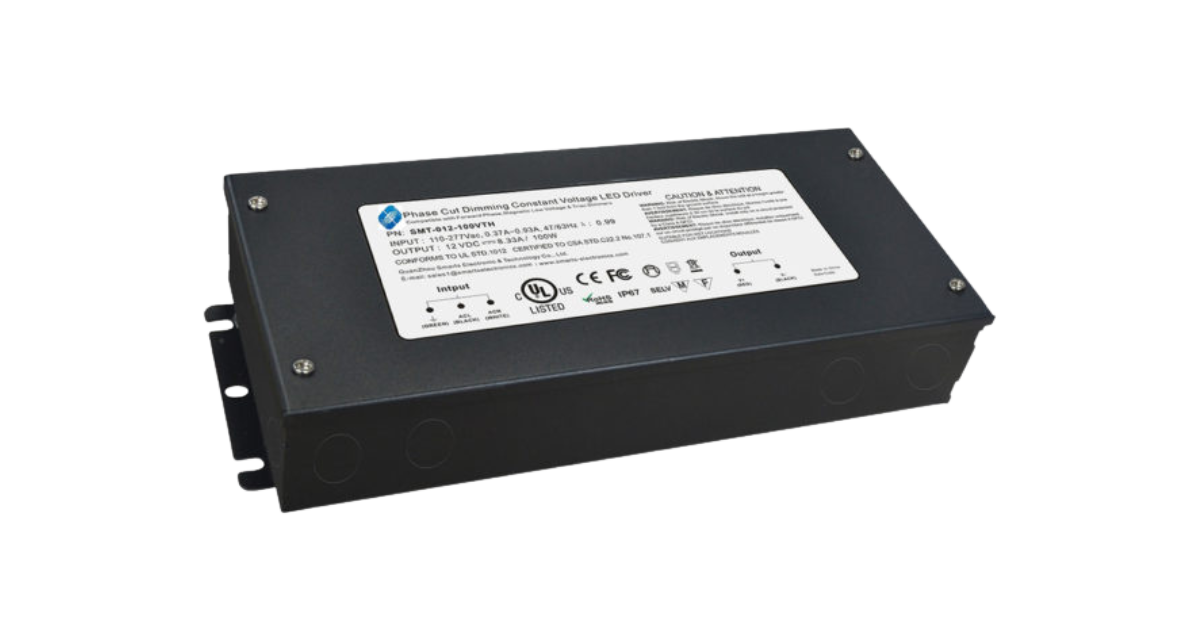

StoneGlo Class 2 Electronic Dimmable Driver – 150 Watt

MLE150-12DC Class 2 Electronic Dimmable Driver

• Outdoor Black Powder Coated Steel Enclosure
• Single Circuit: 12VDC
• Total Wattage: 150W max
• Input Voltage: 100-277V 50/60Hz
• Works with both White and Color Panels

This Driver will light up to 60 Panels and can be dimmed

Transformer:

• PWM output. Dimmable with any ELV, MLV, CL, forward, or reverse phase.
• Input leads are 18AWG 600V
• Output leads are 16AWG 300V
• Leads max. operational temperature is 105°C

Housing:

• The actual transformer 80W is encapsulated in the enclosure
• The enclosure is Black Powder Coated Steel, with built-in class 2 wiring compartment, dry and damp location rated
• Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable connectors
• Enclosure Temperature does not exceed 70°C at 45°C ambient and fully loaded
• Dimensions (inch): H = 10.3, W = 4.06, D = 1.77
• Weight (LBs): 4.5

Electrical Parameters:

• Input Voltage: 100-277V 50/60Hz
• Max. input current at full load: 1.8A
• Output voltage without load: 12.1VDC
• Output voltage fully loaded: 12VDC
• Max. Total Wattage: 150W
• Max. Output Current: 12.5A
• Efficiency: 90%
• Load regulation: 1%
• Ripple: 5%
