Vision IDM

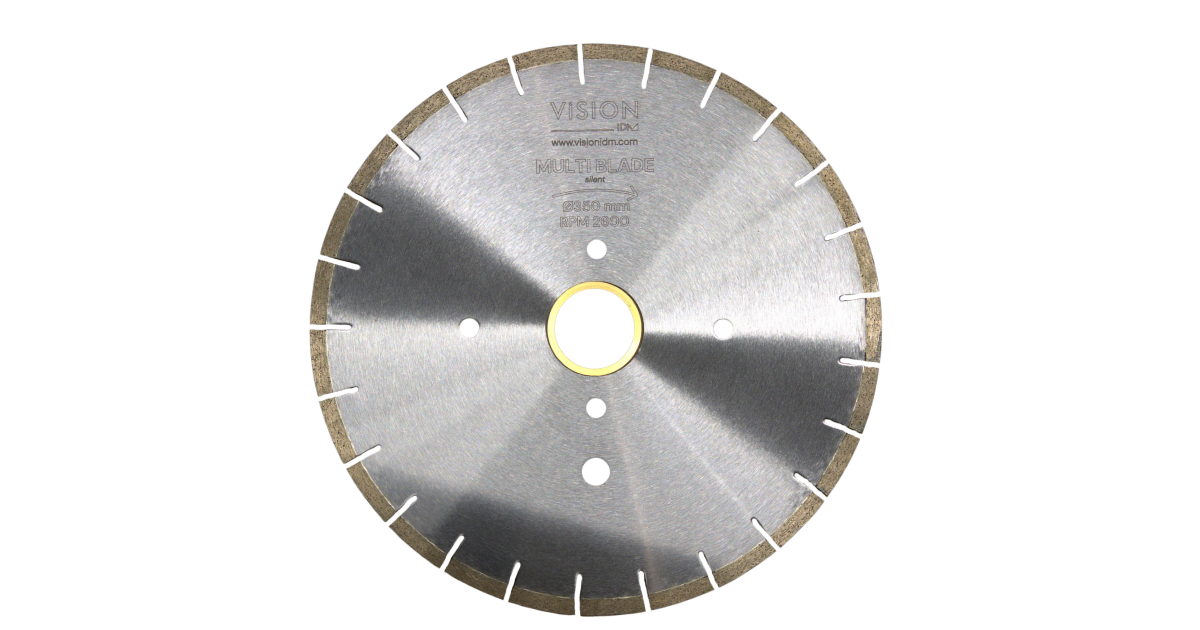

Vision MULTI BLADE Bridge Saw Blade

Vision MULTI BLADE Bridge Saw Blade

$340.00 USD
$340.00 USD
Sale Sold out
Shipping calculated at checkout.
16" x 50/60mm Arbor

Part #

CMCORMUL135010NO

Introducing the VISION Multi-Blade.  It is the most versatile blade on the market and will cut most all materials.  This high-quality blade delivers a flawless finish on both top and bottom edges, ensuring precise cuts in almost all materials without the need to change blades.

Multilayer technology gives the highest quality cuts in marble, granite, porcelain, UCS and quartz. Manufactured for the customers that demand minimal chipping and flawless seams and miter joints.

This is the go-to blade for marble cutting professionals. This blade will work great to cut marble on single-speed saws running 1750 to 2000 RPM. The most common rpm for single-speed bridge saws is 1850. This blade will not work for all materials on single-speed saws.

Must have a variable speed saw to cut different materials



    • The best blade for fragile and semi-precious / precious slabs like those from Antolini®
    • Strengthened Silent Core
    • 10mm segment height
     Parameters
     Blade Size  Material  RPM Range  Feed Rate Inches
    14"
    		  Marble  2500-3000  80" to 200"/min
    14"
    		  Granite  2500-3000  80" to 160"/min
    14"
    		 Quartz
    		  2500-3000  80" to 240"/min
    14" Quartzite 1400-2000 40" to 80"/min
    14" Porcelain 2400-2800 40" to 100"/min
    16" & 18" Marble 2300-2800 80" to 200"/min
    16" & 18" Granite 2300-2800 80" to 160"/min
    16" & 18" Quartz 2300-2800 80" to 240"/min
    16" & 18" Quartzite 1200-1800 40" to 80"/min
    16" & 18" Porcelain 2200-2600 40" to 100"/min



     Reference  Diameter  Height  Arbor
    CMCORMUL135010NO  14"  10  50/60
    CMCORMUL140010NO  16"  10  50/60
    CMCORMUL145010NO  28"  10  50/60
