Vision IDM

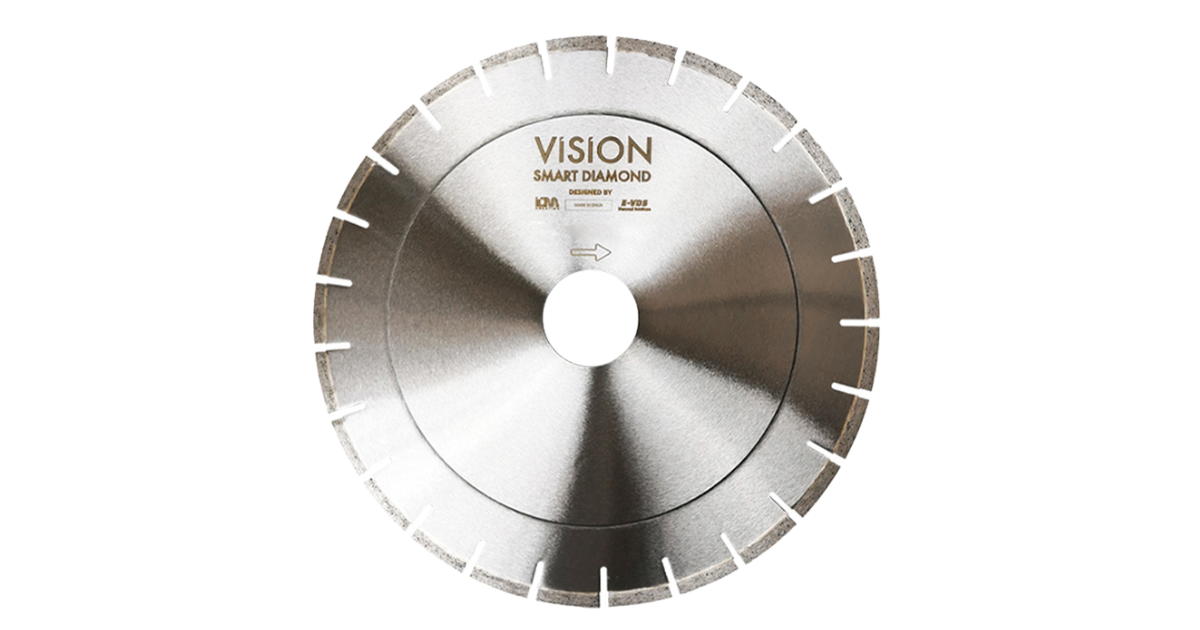

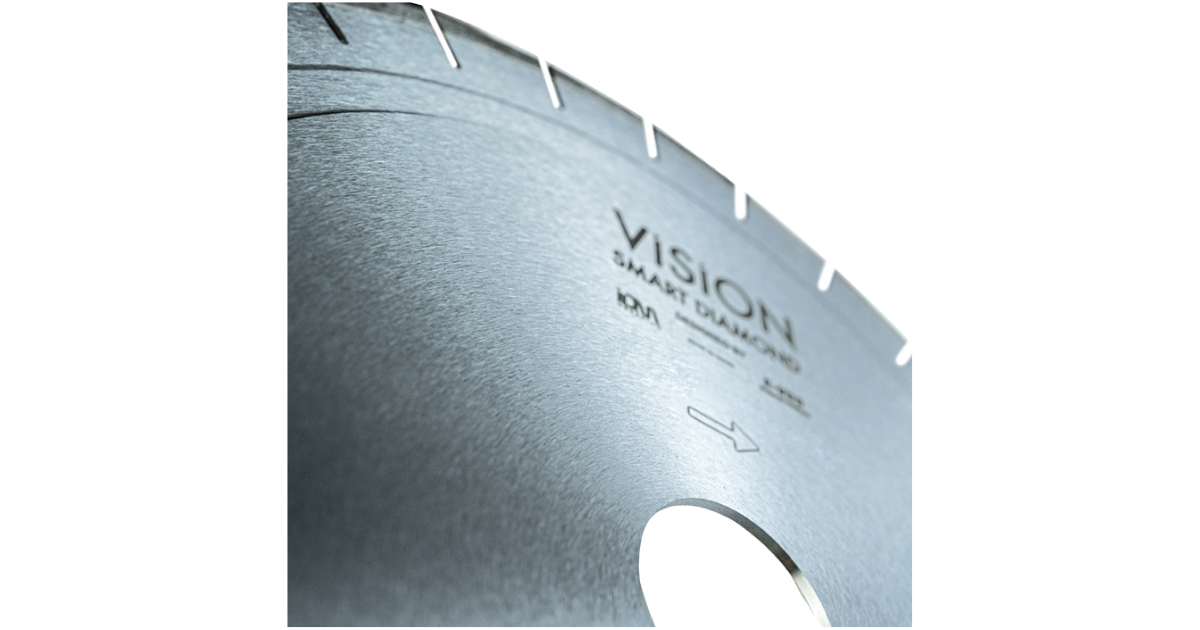

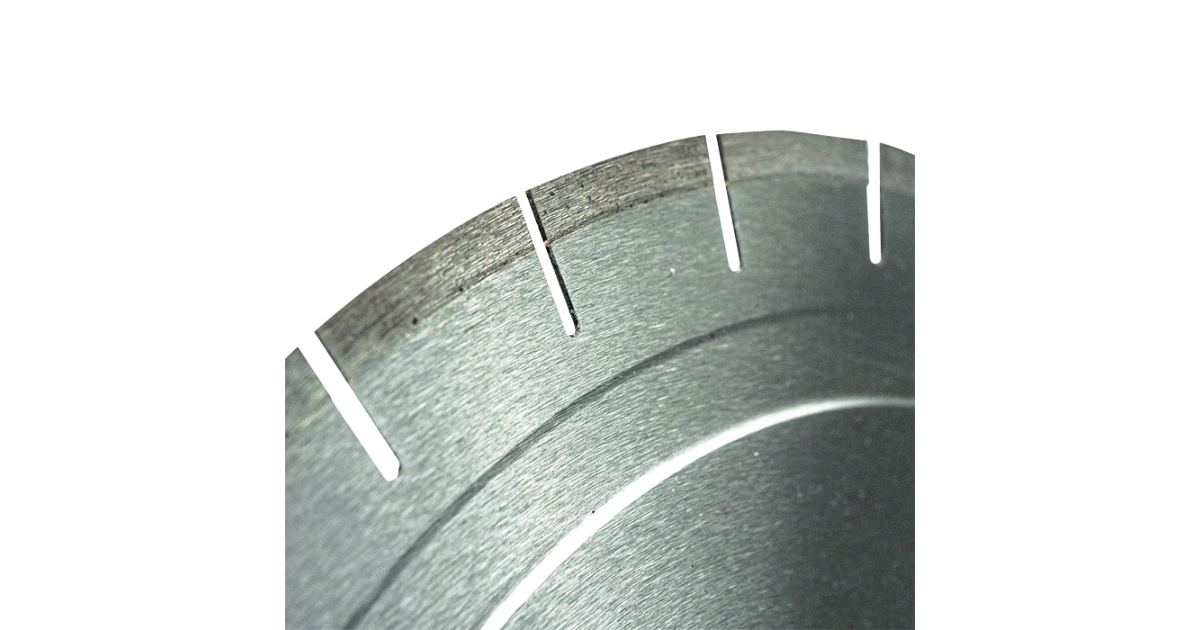

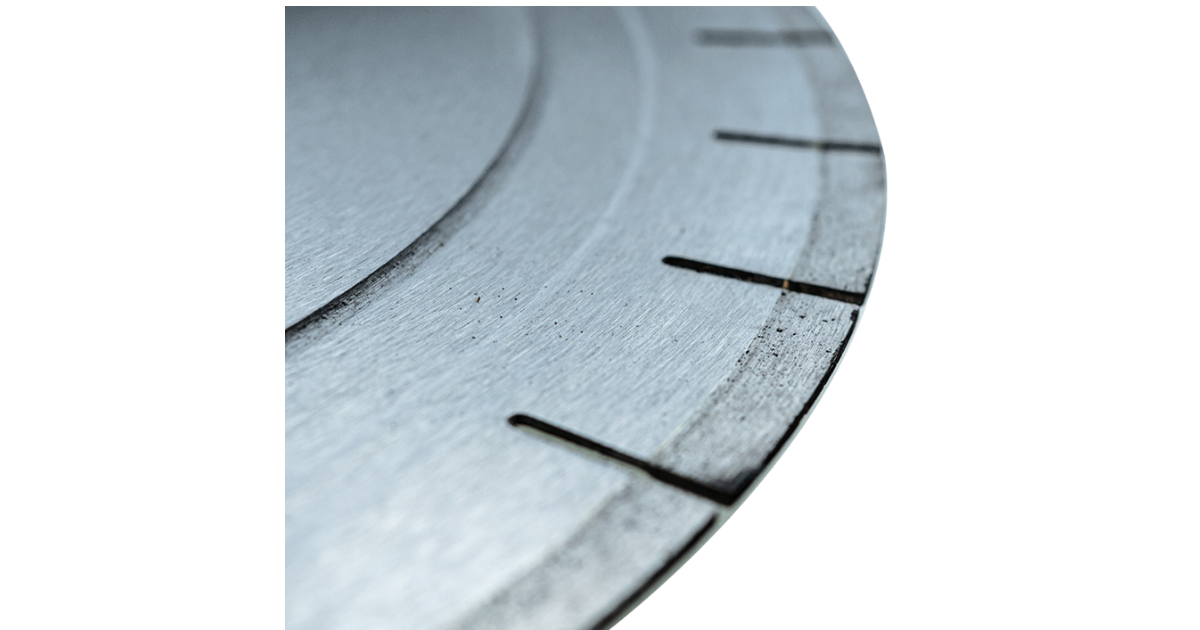

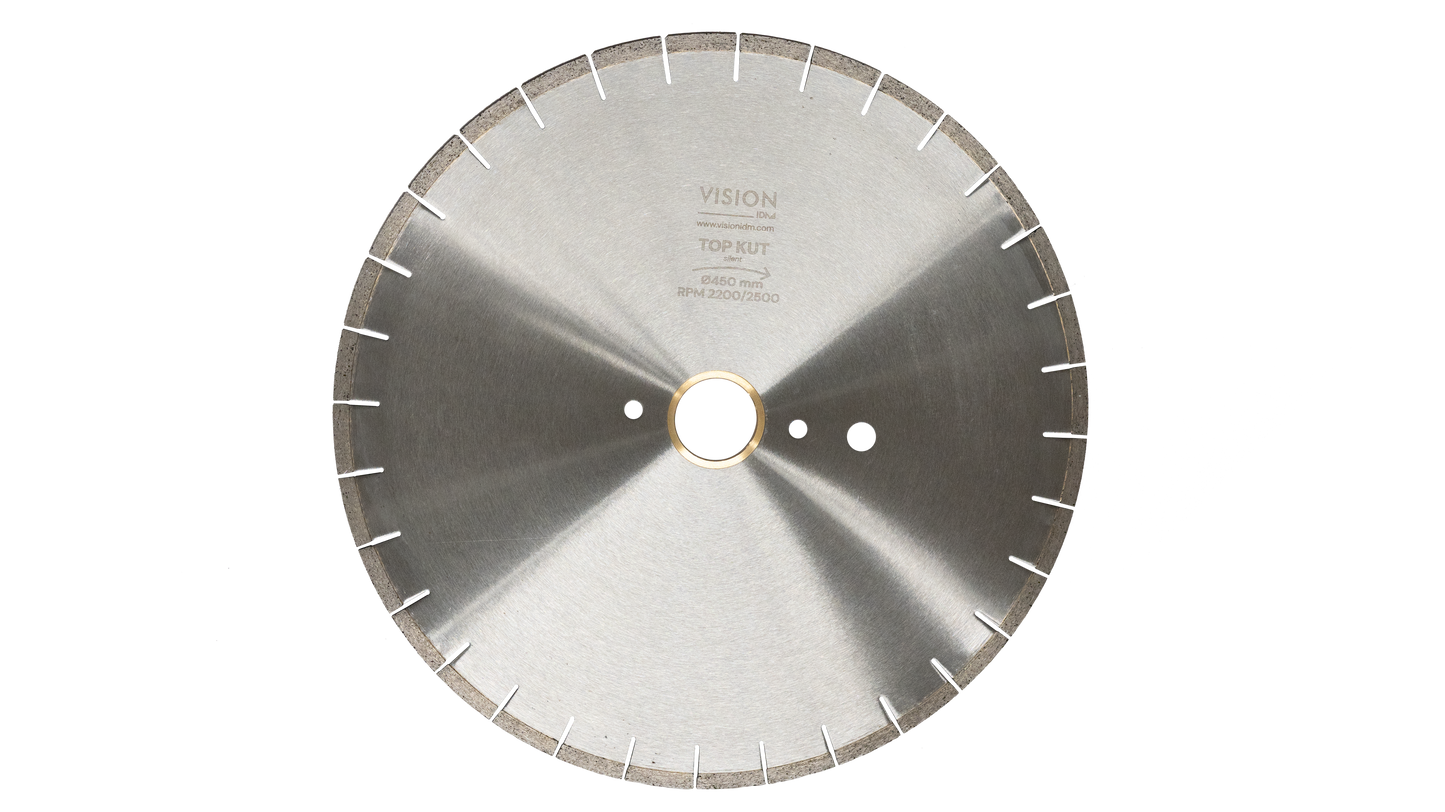

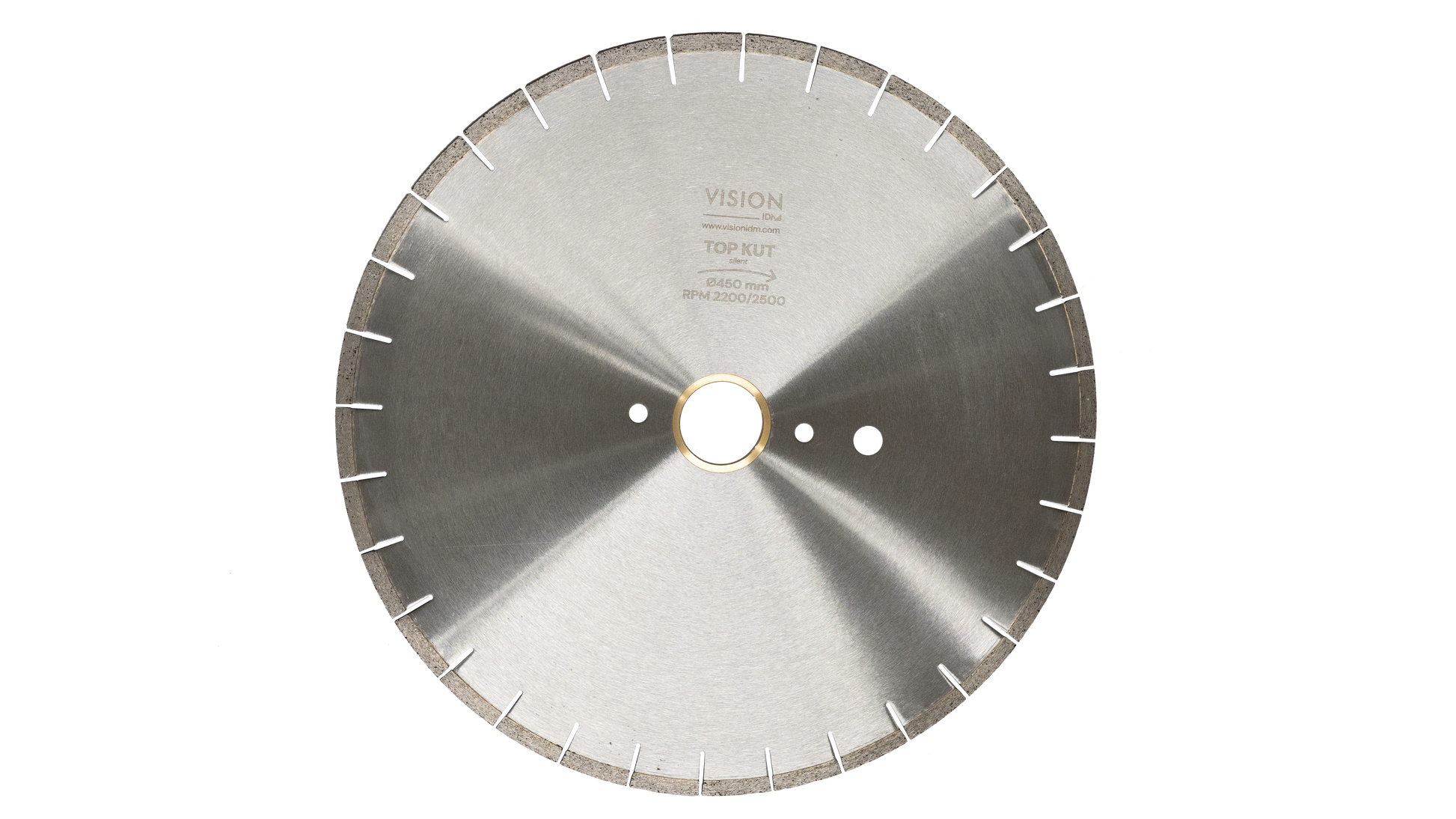

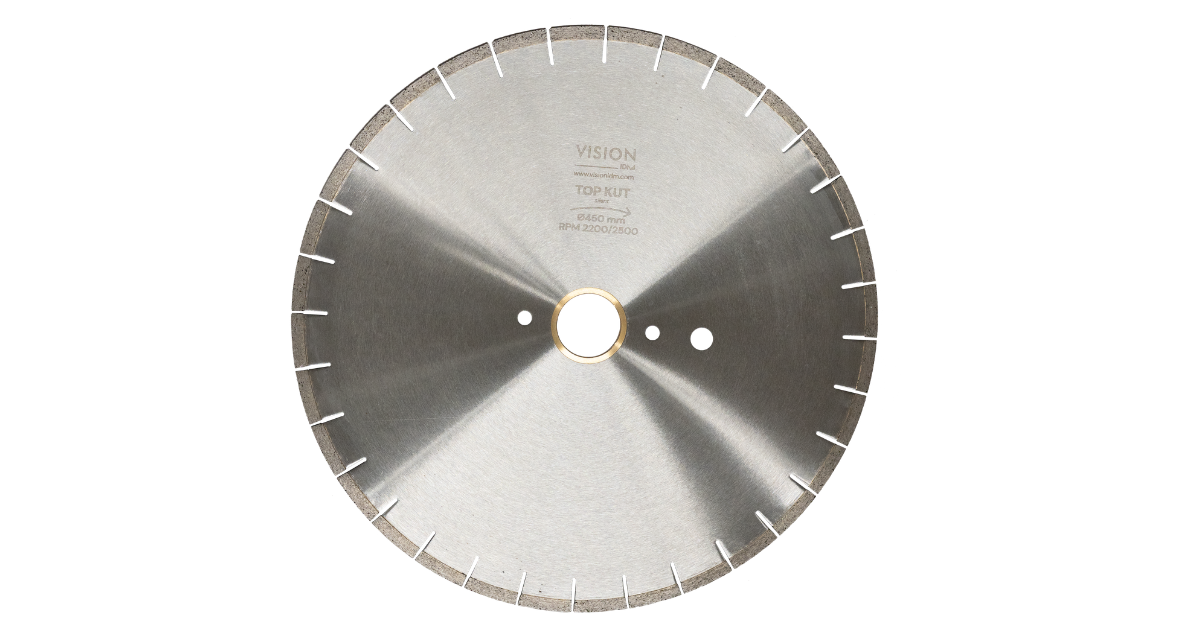

Vision TOP KUT Bridge Saw Blade

Vision TOP KUT Bridge Saw Blade

Regular price $440.00 USD
Regular price Sale price $440.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:CMCORKUT135010NO

Blade Type
Size

Vision IDM TOP KUT - Silent Core Bridge Saw Blade for Granite, Quartz, Quartzite, Porcelain, and UCS Materials such as Dekton, Lapitech and Neolith.

  • NO FEAR OF BREAKAGE. The cleanest cut at the fastest possible speed
  • The world’s premier Porcelain and Dekton blade
  • Approved by Cosentino, and used exclusively at the Dekton manufacturing plant in Spain
  • Never needs sharpening, Eliminates chipping and cracking
  • Cutting speeds up to 98" per minute (2.5 Meters per Minute)
  • Comes in Standard (Normal) and Slim thicknesses
  • Also called the Vision IDM Safety Kut

The Standard Blade can be used for most materials including Granite, Quartz, Porcelain, Dekton and Quartzite. It is the best choice for cutting these materials with saws that are considered low-horsepower or under 20hp. For Cutting Quartzite on a higher horsepower saw, please use the Xtrem blade.

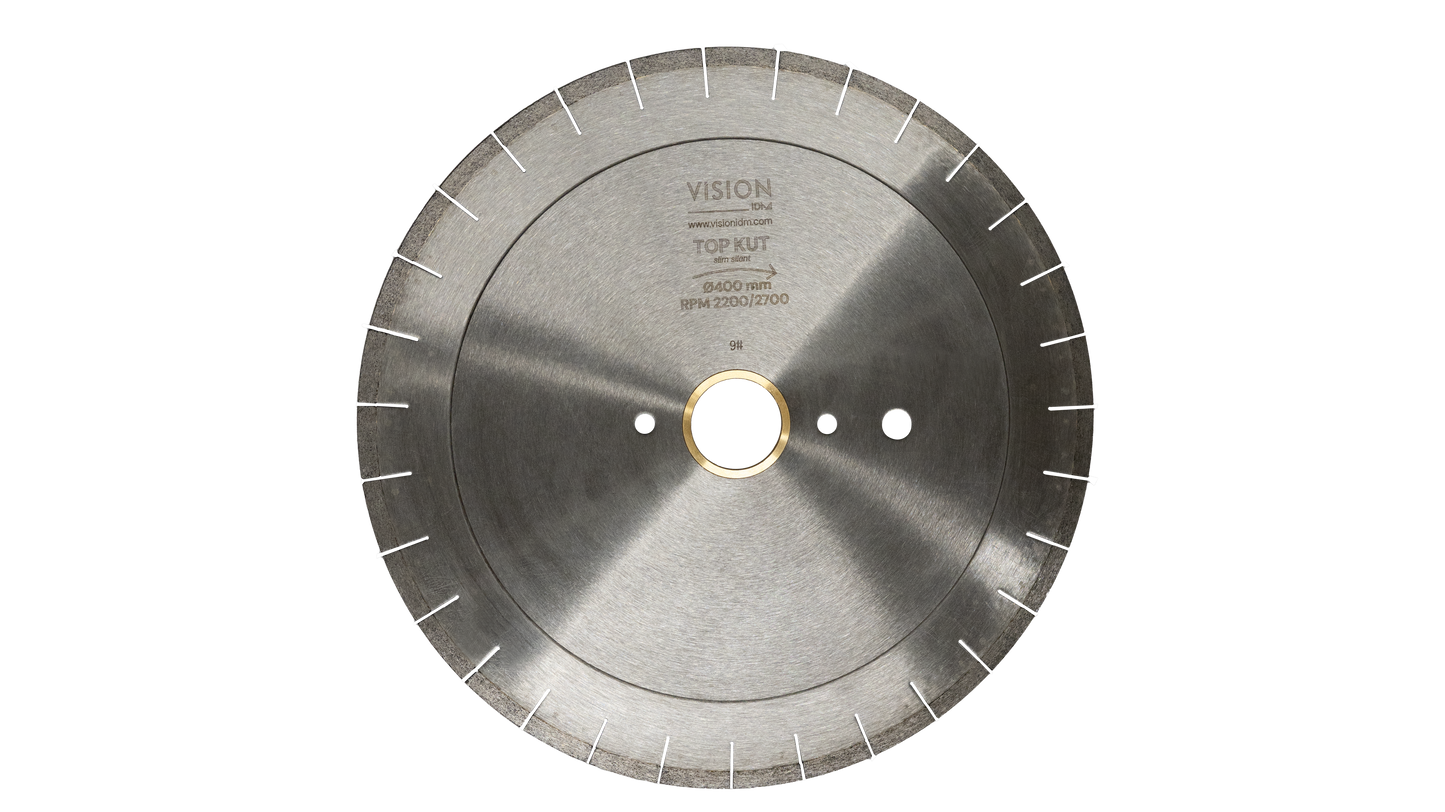

The Slim Blade is best used for cutting Porcelain, Ceramics and Dekton. Saws need to be at least 20HP+.  It provides an exceptionally clean cut with no chipping on the top or bottom edges.

  •  Recommended RPMS:
  • 14" Blade -
    • Porcelain, Dekton, Ceramics - 2900
    • Granite & Quartz - 2200
    • Quartzite - 1800
  • 16" Blade -
    • Porcelain, Dekton, Ceramics - 2500
    • Granite & Quartz - 2000
    • Quartzite - 1800
  • 18" Blade -
    • Porcelain, Dekton, Ceramics - 2200
    • Quartz & Granite - 1800
    • Quartzite - 1500

Important Tips for the best performance:

  1. Please make sure that you have excellent water flow.  Ensure the water tubes are pointed where the blade meets the stone. Flushing the slurry from the cut is important for longer life.
  2. Open/break-in the blade when it is new.  Make a cut at a feed rate of 30 to 40" per minute for about 10' to expose more diamonds on the segments.
  3. Enjoy chip free cuts with the best blade available for Porcelain and Dekton.
