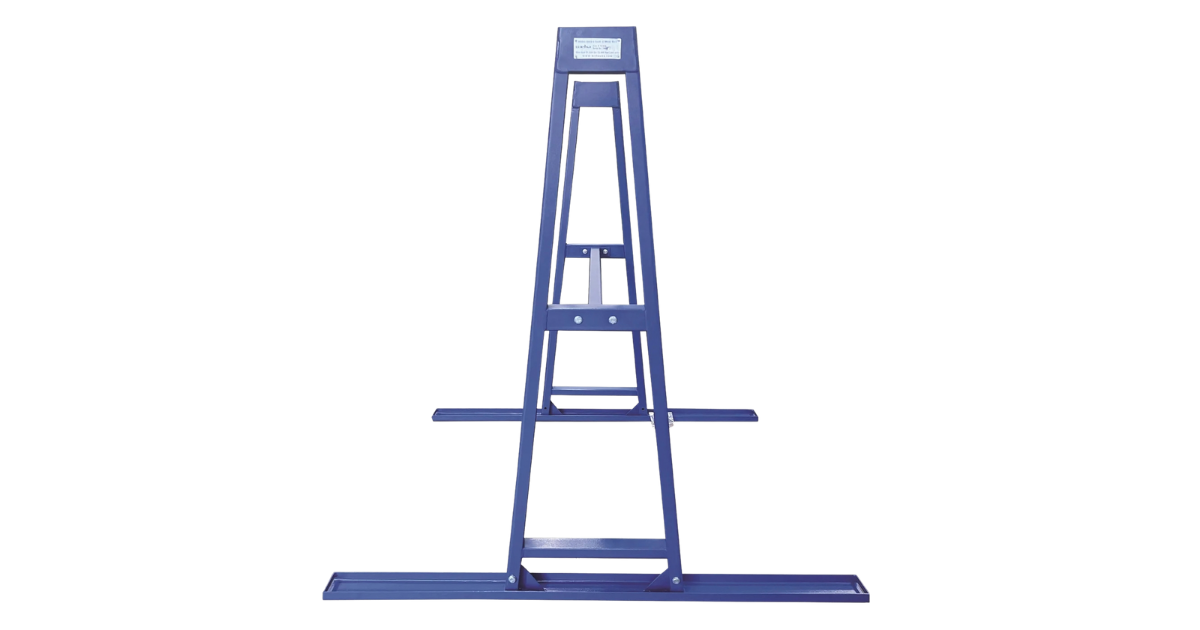

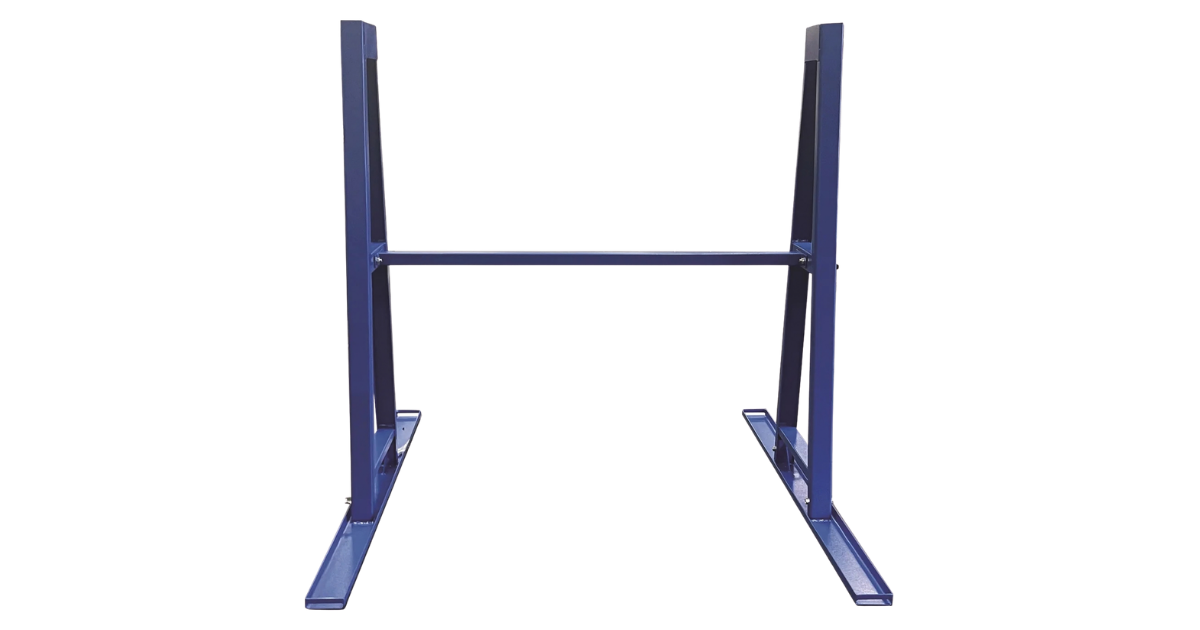

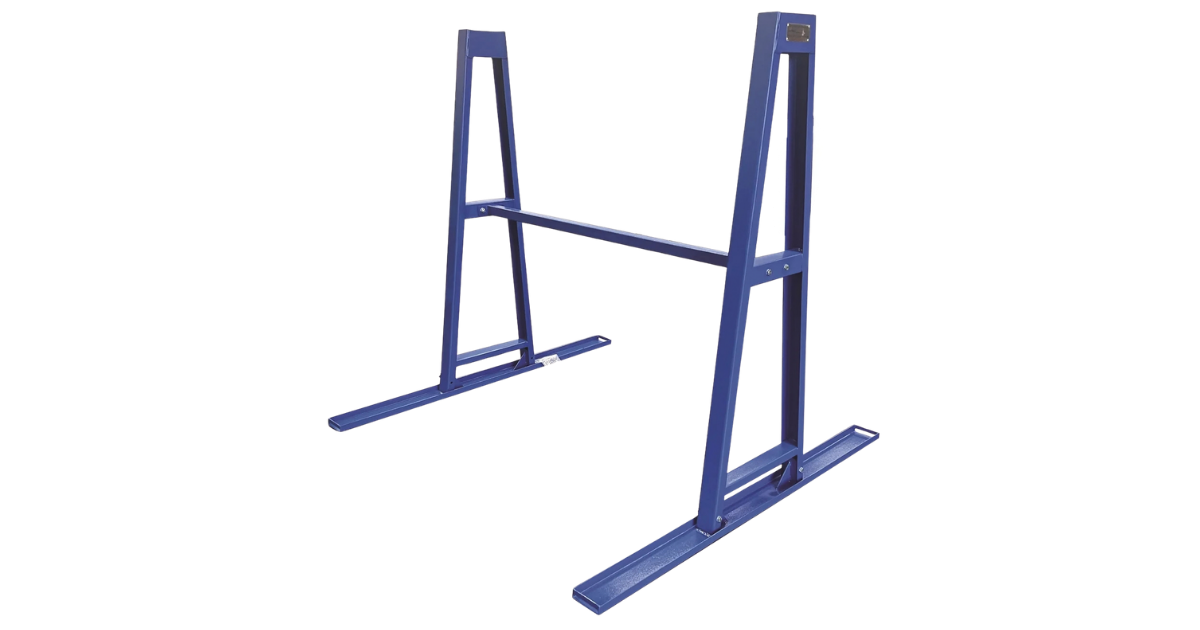

WEHA A-Frame Set with Crossbar

Weha Safety Blue Granite and Stone A Frame Storage Rack Set with Crossbar -  is engineered for safe and efficient storage of granite, marble, quartz, quartzite, engineered stone, and other slab materials. Designed to hold up to 12,000 lbs per side (24,000 lbs total), this heavy-duty rack system supports full bundles of both 2cm and 3cm materials.

TSC - Tait Sales & Consulting, is your trusted source and a Premier Authorized Tenax Distributor. We supply 100% authentic Alpha equipment complete with full factory warranty protection.>more

The wide base C-channel design allows for optional 2x4 wood inserts for added slab protection. With a 6-5/8" top spread, the A-frame safely stores full-height slabs up to 85" on both sides simultaneously without contact.

Each set includes two A-frames, one crossbar, and all required hardware. Units ship knocked down to reduce freight costs.

Features:

• Heavy-duty steel construction
• Double-sided slab storage
• Wide C-channel base for optional wood inserts
• Crossbar for added structural stability
• Designed for warehouse and slab yard organization

Benefits:

• 24,000 lb total load capacity
• Optimized for full slab bundle storage
• Improves warehouse efficiency and safety
• Built for professional stone distributors and fabrication shops

Safety Guidlines:

• Position slabs fully against the A-frame from base to top for even load distribution.
• Distribute weight as evenly as possible on both sides. Do not exceed a 3-slab difference without calculating weight distribution.
• Match slab thickness and material when possible (2cm with 2cm, 3cm with 3cm).
• Center slabs front to back when loading.
• Always place racks on a flat, level, hard surface to maintain proper load capacity.

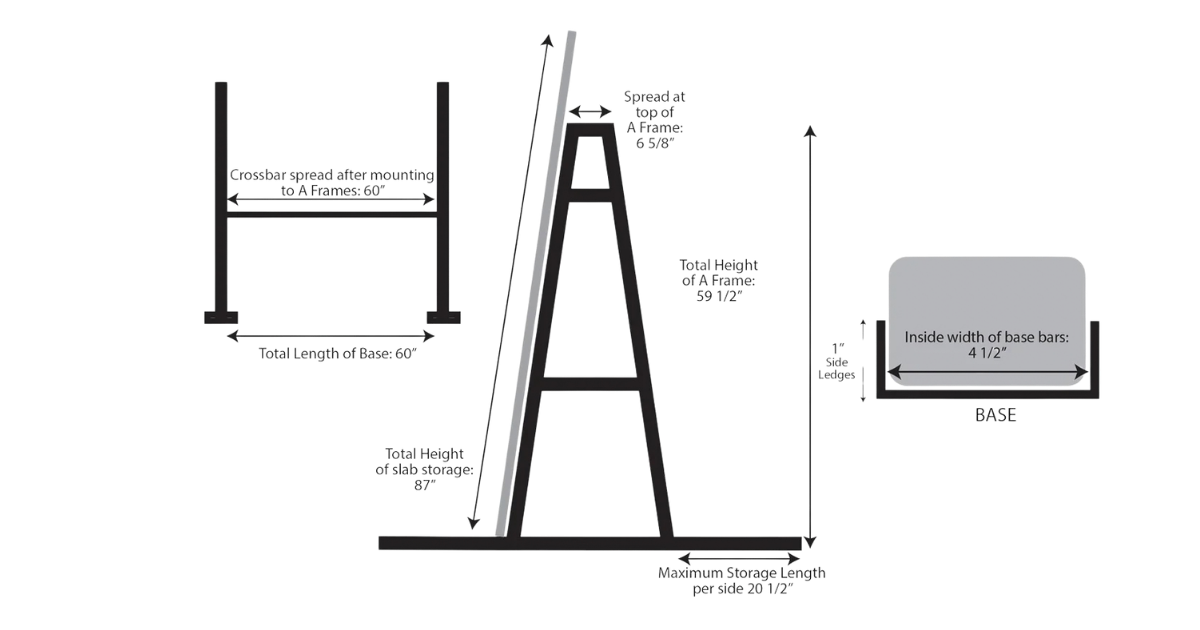

Specifications:
Capacity	12,000 lbs per side (24,000 lbs total)
Crossbar Spread (mounted)	60"
Total Base Length	60"
Total Height	59-1/2"
Total Slab Storage Height	87"
Top Spread	6-5/8"
Maximum Storage Length per Side	20-1/2"
Inside Base Width	4-1/4" with 1" Side Ledges
