WEHA Single Sided A Frame Storage Rack with Cross Bar
WEHA Single Sided A Frame Storage Rack with Cross Bar
Regular price
$264.00 USD
Regular price
Sale price
$264.00 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:139453
Couldn't load pickup availability

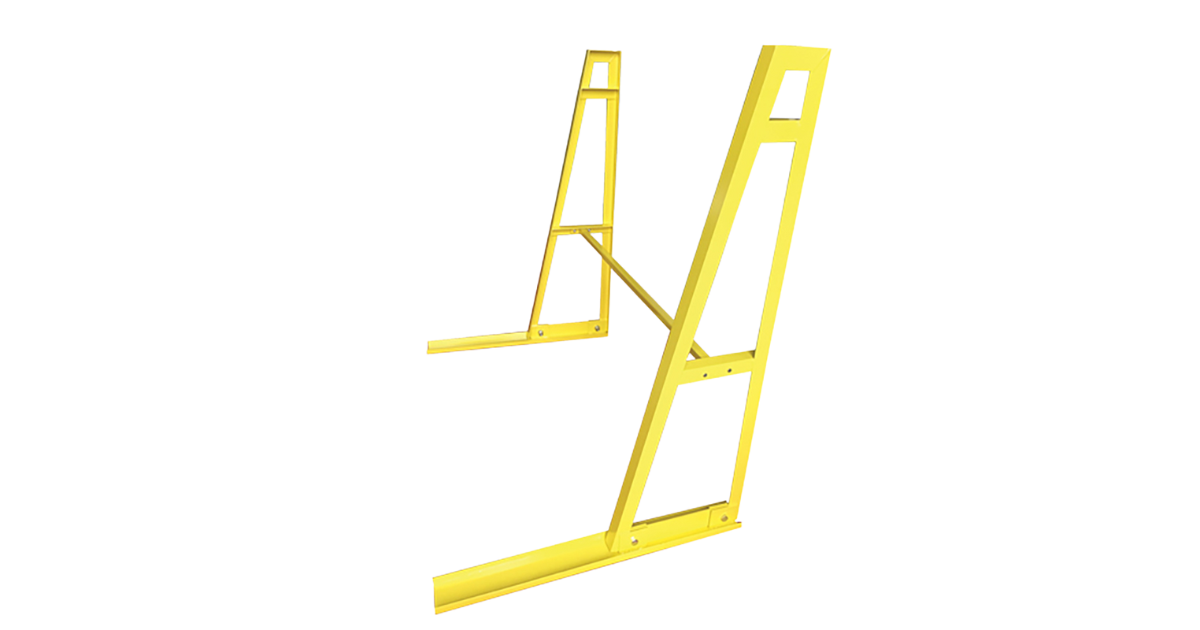

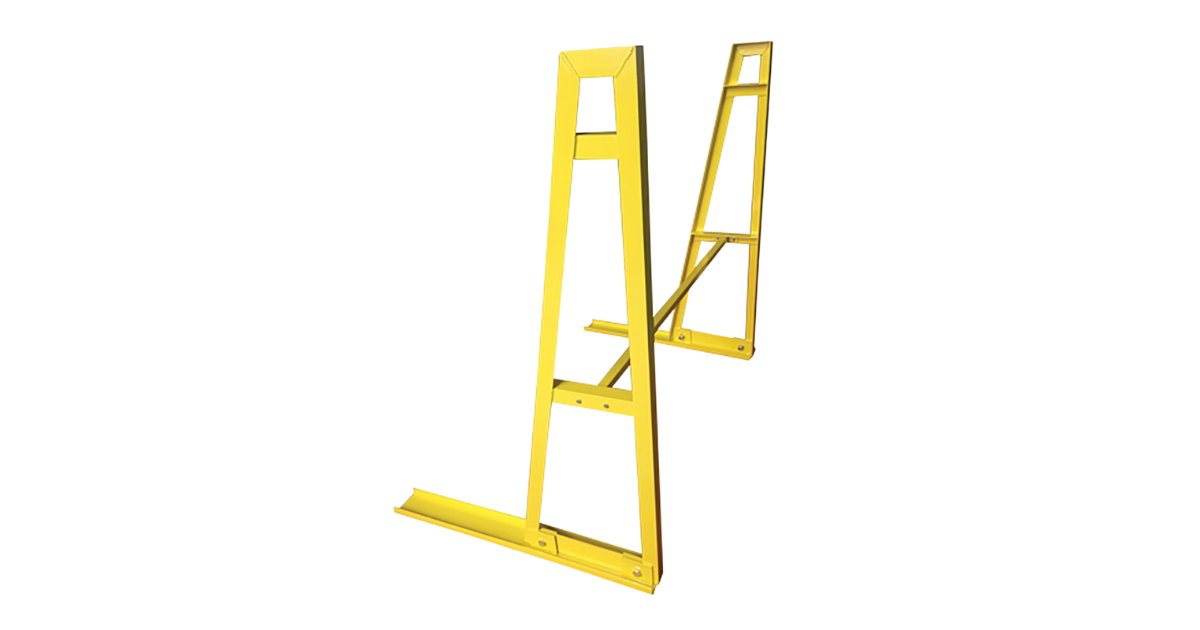

WEHA Single Sided A Frame Storage Rack with Cross Bar Safety YellowWEHA granite and stone Single Sided A Frame Storage Rack with Crossbar are made to support granite, marble, engineered stone, quartz, quartzite, and all other sheet materials. They will hold full bundles of both 2cm and 3 cm stone and quartz materials. They are made to be placed against a wall near saws, Jib Cranes, work areas to maximize space and add convenience to work flow.
When the WEHA Single Sided A Frame Storage Rack is placed against the wall, full size slabs can be stored without touching the wall at the top. The rack has a spread of 6 5/8″ which allows heights up to 87″ before the stone would touch the wall.

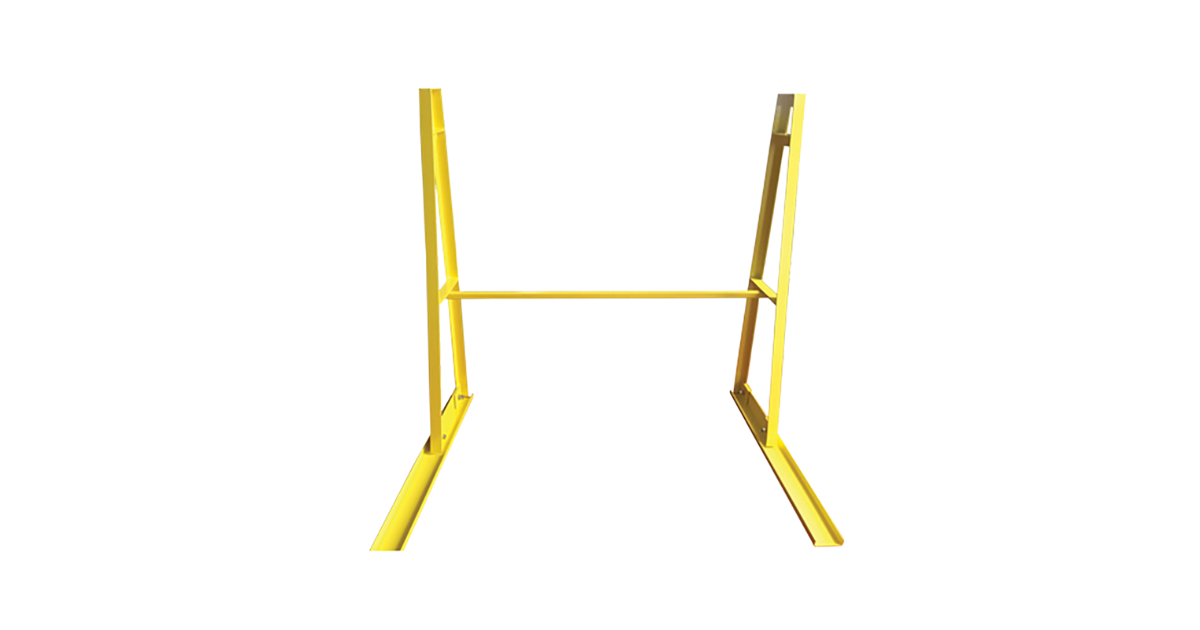

The safety yellow color increases visibility in the shop and allows for safer loading and unloading. The inside diameter of the C channel is 4 1/4″ wide which allows for a standard 2 x 4 to be placed in the channel. The 60″ crossbar that mounts to each A frame adds stability and safety as well.
The WEHA Single Sided A Frame Storage Rack Specifications:
Total length of base: 40″
Total height: 59 1/2″
Spread at top of A frame: 6 5/8″
Max height of slab storage: 87″
Maximum storage length: 20 1/2″
Inside width of C channel: 4 1/4″
Crossbar spread: 60″Painted Safety Yellow
When the WEHA Single Sided A Frame Storage Rack is placed against the wall, full size slabs can be stored without touching the wall at the top. The rack has a spread of 6 5/8″ which allows heights up to 87″ before the stone would touch the wall.
The safety yellow color increases visibility in the shop and allows for safer loading and unloading. The inside diameter of the C channel is 4 1/4″ wide which allows for a standard 2 x 4 to be placed in the channel. The 60″ crossbar that mounts to each A frame adds stability and safety as well.
The WEHA Single Sided A Frame Storage Rack Specifications:
Total length of base: 40″
Total height: 59 1/2″
Spread at top of A frame: 6 5/8″
Max height of slab storage: 87″
Maximum storage length: 20 1/2″
Inside width of C channel: 4 1/4″
Crossbar spread: 60″Painted Safety Yellow
